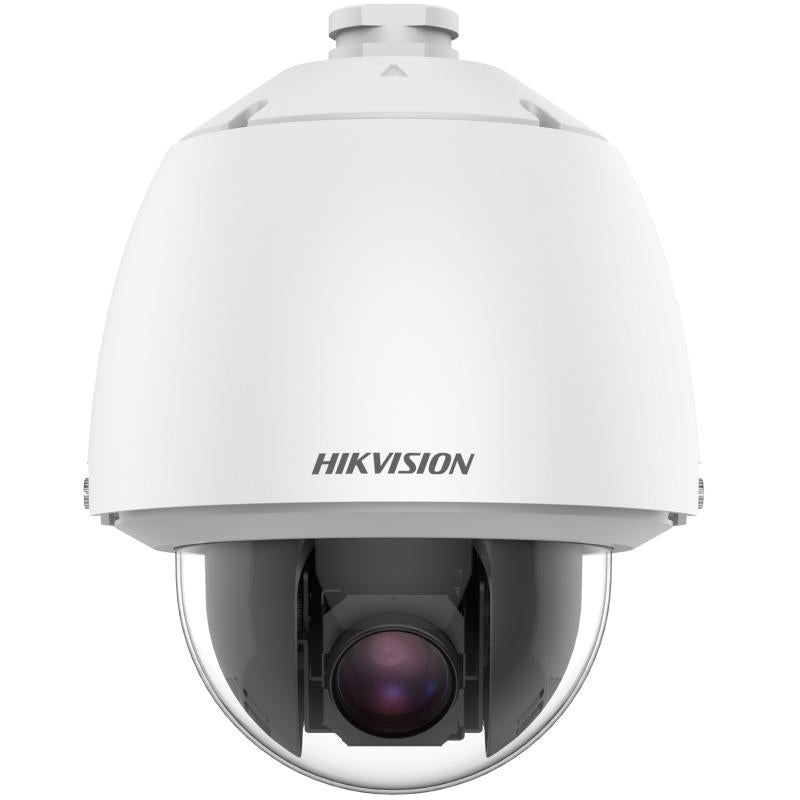

Hikvision DS-2DE5425WG1-E DarkFighter Network Speed Dome, 4MP, 25x Optical Zoom
Free Delivery
Save £90.23
About this product
The Hikvision DS-2DE5425WG1-E is a 4 MP network PTZ speed dome powered by DarkFighter and Acusense, with 25× optical zoom and 16× digital zoom for close up views over expansive areas. It is built for IP CCTV systems, water and dust resistant (IP66) and vandal resistant (IK10).
Key features
- 4 MP resolution (2560 × 1440) on a 1/2.8″ Progressive Scan CMOS
- 25× optical zoom and 16× digital zoom, 4.8 mm to 120 mm focal length
- 360° pan and -5° to 90° tilt (auto flip), 300 presets
- 120 dB WDR
- Smart events: line crossing, intrusion, region entrance, region exiting, unattended baggage and object removal detection
- Manual tracking and auto-tracking
- Built-in memory card slot for microSD/SDHC/SDXC up to 256 GB
- Power from 36 VDC (Max.20 W), 24 VAC (Max.20 W) or PoE (802.3at)
Frequently asked questions
What zoom does the DS-2DE5425WG1-E have?
25× optical zoom and 16× digital zoom, from a 4.8 mm to 120 mm lens.
How is it powered?
From 36 VDC (Max.20 W), 24 VAC (Max.20 W) or PoE (802.3at).
Does it have on-board storage?
Yes: a built-in memory card slot that supports microSD/SDHC/SDXC cards up to 256 GB.
How weather resistant is it?
It is water and dust resistant (IP66) and vandal resistant (IK10), and operates from -30 °C to 65 °C.
Which software can view it?
The iVMS-4200, HikCentral Pro and Hik-Connect clients.
Can it track moving targets?
Yes: it supports manual tracking and auto-tracking.
Technical Details
Specifications
Brand
Hikvision
Model
DS-2DE5425WG1-E
Manufacturer Part Number (MPN)
DS-2DE5425WG1-E
Image Sensor
1/2.8″ Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON)
Shutter Speed
1 s to 1/30,000 s
Zoom
25× optical zoom and 16× digital zoom
Focal Length
4.8 mm to 120 mm
Horizontal Field of View
57.6° to 2.5° (wide-tele)
Aperture
Max. F1.6
Focus
Auto, semi-auto, manual
Movement Range (Pan)
360°
Movement Range (Tilt)
-5° to 90° (auto flip)
Pan Speed
configurable from 0.1° to 250°/s; preset speed: 300°/s
Tilt Speed
configurable from 0.1° to 150°/s, preset speed 200°/s
Presets
300
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans
Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Video Compression (main stream)
H.265+/H.265/H.264+/H.264
Video Bit Rate
32 Kbps to 16 Mbps
WDR
120 dB
Image Enhancement
BLC, HLC, 3D DNR
Defog
Digital Defog
Privacy Mask
24 programmable polygon privacy masks, mask color or mosaic configurable
Smart Event
line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Smart Tracking
Manual tracking, auto-tracking
Face Capture
Yes
Ethernet Interface
1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Simultaneous Live View
Up to 20 channels
API
Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Client
iVMS-4200, HikCentral Pro, Hik-Connect
Alarm
2 inputs, 1 output
Audio
1 input (line in); 1 output (line out)
Power
36 VDC, Max.20 W; 24 VAC, Max.20 W; PoE (802.3at)
Dimension
Ø 220 mm × 280 mm
Weight
Approx. 3.0 kg
Material
ADC 12, PC+ABS, PC/PMMA
Operating Condition
-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Protection
IP66, IK10; TVS 6000 V lightning protection, surge protection and voltage transient protection
Colour
White
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2DE5425WG1-E |
| Manufacturer Part Number (MPN) | DS-2DE5425WG1-E |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1 s to 1/30,000 s |
| Zoom | 25× optical zoom and 16× digital zoom |
| Focal Length | 4.8 mm to 120 mm |
| Horizontal Field of View | 57.6° to 2.5° (wide-tele) |
| Aperture | Max. F1.6 |
| Focus | Auto, semi-auto, manual |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -5° to 90° (auto flip) |
| Pan Speed | configurable from 0.1° to 250°/s; preset speed: 300°/s |
| Tilt Speed | configurable from 0.1° to 150°/s, preset speed 200°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Video Compression (main stream) | H.265+/H.265/H.264+/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| WDR | 120 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Defog | Digital Defog |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Smart Event | line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
| Smart Tracking | Manual tracking, auto-tracking |
| Face Capture | Yes |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Alarm | 2 inputs, 1 output |
| Audio | 1 input (line in); 1 output (line out) |
| Power | 36 VDC, Max.20 W; 24 VAC, Max.20 W; PoE (802.3at) |
| Dimension | Ø 220 mm × 280 mm |
| Weight | Approx. 3.0 kg |
| Material | ADC 12, PC+ABS, PC/PMMA |
| Operating Condition | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
| Protection | IP66, IK10; TVS 6000 V lightning protection, surge protection and voltage transient protection |
| Colour | White |
