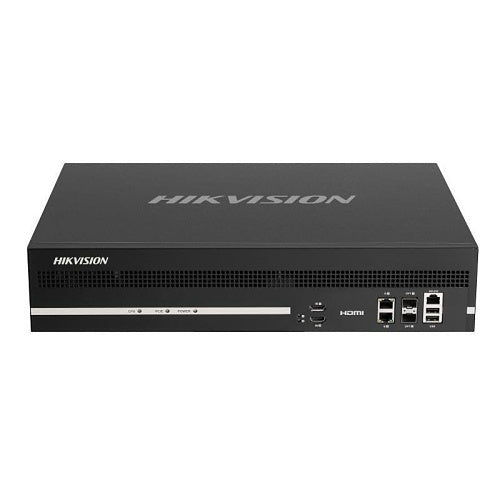

Hikvision DS-6912UDI(C) decoder
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hikvision DS-6912UDI(C) is a decoder from the DS-6900UDI range.
Introducing the Hikvision DS-6912UDI(C) 4K 12-Channel Decoder, a cutting-edge solution for your video decoding needs. This powerful decoder supports stunning 4K resolution, ensuring that every detail is crystal clear. With the capability to handle up to 12 channels, it is perfect for both commercial and residential applications, providing seamless integration into your existing systems.
Designed with user-friendliness in mind, the DS-6912UDI(C) offers intuitive controls and robust performance. Elevate your viewing experience and make the smart choice for your video management.
Key features
- Support computer, video conference terminals and other devices to serve as video input signal source
- Support HDMI 4K signal inputs
- Support network camera, NVR, and other devices to serve as network signal source
- Support embedded HDMI audio input supports 16 bit and 48K Hz, two audio channels and stereo sound
- Support 2-Channel 1080pat50/60 or 1-Channel 4Kat30 encoding via HDMI 1.4 input interface
- Support 4K (3840 x 2160at30 Hz) UHD video output via HDMI 1.4 output interface
- Support 2-Audio output methods embedded HDMI audio output and external audio output
- Adopt frame synchronization technology to ensure complete synchronization of images from all output ports, complete pictures, smooth playback, and without lag, frame loss, tearing or splicing
- Video Encoding and Decoding
- Support H.264 and H.265 encoding of input boards, and sub-stream and mainstream encoding the default encoding format is H.264
If you are matching this to an existing installation, work from the DS-6912UDI(C) part number rather than the description.
Specifications
Technical information
Certifications
Interfaces/ports
Physical characteristics
Video
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-6912UDI(C) |
| Product Series | DS-6900UDI |
| Product Type | Video Surveillance System |
Technical information
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, Smart H.264, Smart H.265 |
|---|---|
| Video Signal Format | NTSC, PAL |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE Compliant | Compliant |
Interfaces/ports
| HDMI | Yes |
|---|---|
| Number of USB Ports | 1 |
| USB Standard | USB 2.0 |
Physical characteristics
| Depth | 88.00mm |
|---|---|
| Height | 321.00mm |
| Width | 440.00mm |
Video
| Maximum Resolution | 3840 x 2160 |
|---|
