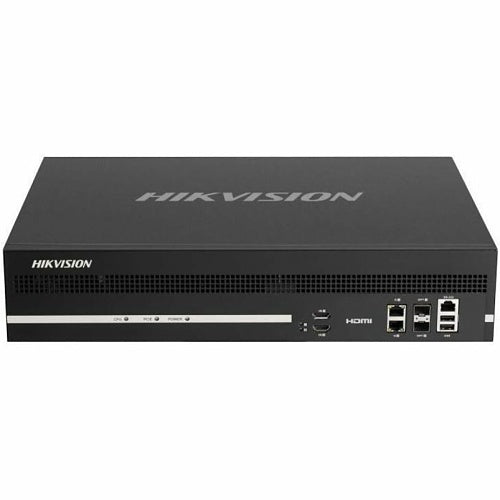

Hikvision DS-6916UDI(C) decoder

Please note: this is a non-returnable item (excluding faulty goods)

Hikvision DS-6916UDI(C) is a decoder.

DS-6900UDI Series decoders are developed on the basis of embedded hardware platform. DS-6916UDI supports HDMI 1.4, BNC (to DB15) output port decoding, and multiple video stream formats, like H.265, H.264, MJPEG, H.264+ and H.265+ with strong decoding performance. It supports H.265/H.264 decoding with resolution of no more than 3200 W and 4K ultra high definition outputs.

It is a new generation of decoder launched by our company for HD network cameras, which can be widely used in various video security system projects. Video Input

Support computer, video conference terminals and so on video input signal source; support HDMI and HDMI 4K signal inputs. Support network camera, NVR, and other device types as network signal source inputs. Support HDMI embedded audio input; audio input supports 16 bit and 48K Hz sampling, two-channel and stereo sound.

Support 2-ch 1080p@50/60 or 1-ch 4K@30 by HDMI 1.4 local directory input. Video Output

Support HDMI 1.4 video signal output with 4K (3840 × 2160@30 Hz) ultra high definition output. Support two audio output methods: HDMI embedded audio and external audio output. Adopting frame synchronization technology to ensure complete synchronization of images from all output ports, complete graphics, smooth playback, no jamming or stuttering, no tearing or stitching.

Video Encoding and Decoding

Adopting H.264/H.265 encoding standard, the default is H.264, supporting sub-stream and main stream encoding. Support decoding of network sources such as network cameras/NVR, decoding of sub-stream and main stream, and automatic sub-stream extraction for segmented images can be set. The device has 256 video decoding channels, supporting 128-ch 200 W or 256-ch 720p video decoding on the wall simultaneously.

Support decoding streams of multiple resolution no more than 3200 W. H.264, H.265, H.264+, H.265+, MJPEG, HIK264 video compression decoding. PS, RTP, TS, ES encapsulation formats.

G.722, G.711A, G.726, G.711U, MPEG2-L2, AAC, MP3, PCM audio compression decoding. Support front-end corridor mode decoding and up to 2560 × 1440 decoding output. Two decoding modes: active decoding and passive decoding.

Support encryption stream, multi-track stream, and intelligent stream decoding; support stream modification and switching; support decoding exception prompt.

Key features

• 8-Channel 4K decoding with HDMI and BNC outputs
• Supports H.265, H.264, MJPEG, H.264+, and H.265+ video formats
• 4K ultra high definition output with HDMI 1.4
• Supports multiple video input sources including network cameras and NVRs
• 256 video decoding channels for simultaneous decoding
• Frame synchronization technology for smooth playback
• Supports HDMI embedded audio and external audio output
• Two decoding modes: active and passive
• Supports encryption stream and intelligent stream decoding

If you are matching this to an existing installation, work from the DS-6916UDI(C) part number rather than the description.
