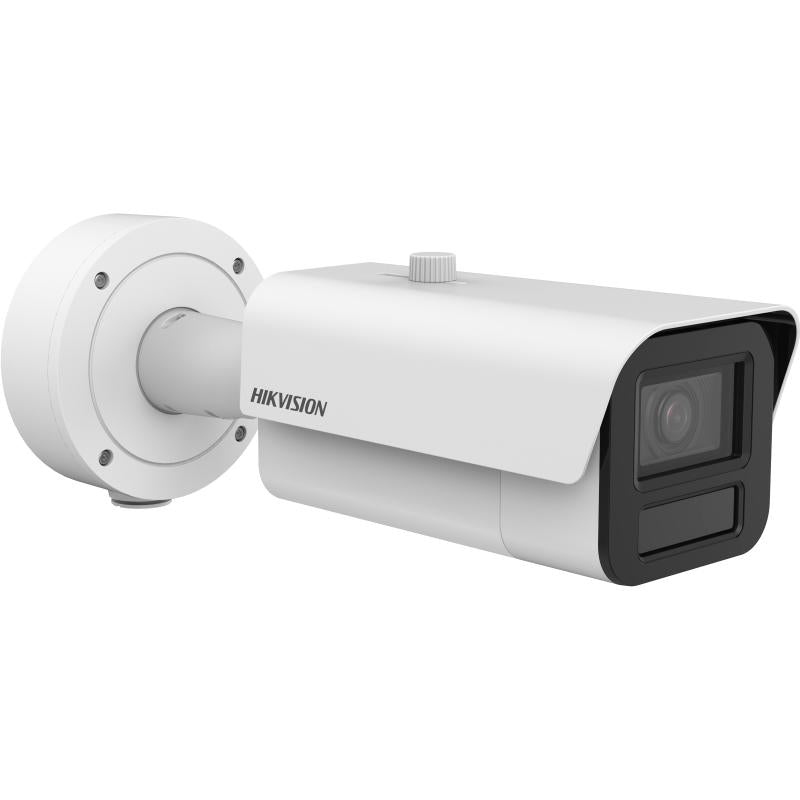

Hikvision iDS-2CD7A86G2-IZHSY(2.8-12mm)(O-STD) DeepinView Moto Varifocal Bullet Camera, 8MP, 2.8-12mm
About this product
The Hikvision iDS-2CD7A86G2-IZHSY(2.8-12mm)(O-STD) is an 8MP DeepinView Moto varifocal bullet camera for IP CCTV systems, with a 2.8 to 12 mm lens and a 3840 × 2160 maximum resolution. It pairs DarkFighter 2.0 low-light imaging and an IR supplement light (Monitoring: 60 m at 2.8 to 12 mm) with AI Open Platform model support and IP67 and IK10 protection.
Key features
- 8 MP resolution, 3840 × 2160 maximum
- 2.8 to 12 mm varifocal lens with Auto, Semi-auto and Manual focus
- Excellent low-light performance via DarkFighter 2.0 technology
- IR supplement light, 850 nm, Monitoring: 60 m (2.8 to 12 mm)
- 140 dB AWDR for scenes with strong back light
- High frame rate, up to 8MP@60fps and 2MP@120fps
- Water and dust resistant (IP67), vandal proof (IK10)
- Built-in heater, G-sensor for vibration detection and power meter
Frequently asked questions
How far can the iDS-2CD7A86G2-IZHSY(2.8-12mm)(O-STD) see at night?
It has an IR supplement light at 850 nm, with a supplement light range of Monitoring: 60 m for the 2.8 to 12 mm lens.
Can this camera be powered over PoE?
Yes. Power is 12VDC & PoE, with PoE as PoE+ (802.3at) 30w.
What lens does this bullet camera use?
A 2.8 to 12 mm varifocal lens with Auto, Semi-auto and Manual focus, a P-iris and an aperture of F1.38 to F2.53.
Is it suitable for outdoor installation?
It is water and dust resistant (IP67) and vandal proof (IK10), with a built-in heater to keep the image clear under rainy or snowy weather.
What AI functions does it support?
It has 5 TOPS of computing power, supports up to 3 AI Open Platform models and has built-in models for PPE detection (hard hat and reflective clothing).
What frame rates can it reach?
High frame rate modes reach up to 8MP@60fps and 2MP@120fps.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-2CD7A86G2-IZHSY(2.8-12mm)(O-STD) |
| Manufacturer Part Number (MPN) | iDS-2CD7A86G2-IZHSY(2.8-12mm)(O-STD) |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Focal Length & FOV (2.8 to 12 mm, without -(B)) | 2.8 to 12 mm, horizontal FOV 104° to 41.2°, vertical FOV 54.2° to 23.1°, diagonal FOV 126.5° to 47.3° |
| Focus | Auto,Semi-auto,Manual |
| Iris Type | P-iris |
| Aperture (2.8 to 12 mm) | F1.38 to F2.53 |
| Supplement Light Type | IR |
| Supplement Light Range (2.8 to 12 mm) | Monitoring: 60 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Computing Power | 5 TOPS |
| Video Compression (main stream) | H.265+/H.265/H.264+/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Region Of Interest (ROI) | 4 fixed regions for each stream |
| E-PTZ | Support Patrol and Auto Tracking settings |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio In/Out | 1/1 |
| Protection | IP67, IK10 |
| Power | 12VDC & PoE |
| PoE Power | PoE+ (802.3at) 30w |
| Mounting | Wall & Ceiling |
| Environment | Indoor/Outdoor |
| Dimension | 425mm×190mm×180mm |
| Weight | 2.17 kg |
| Colour | White |
