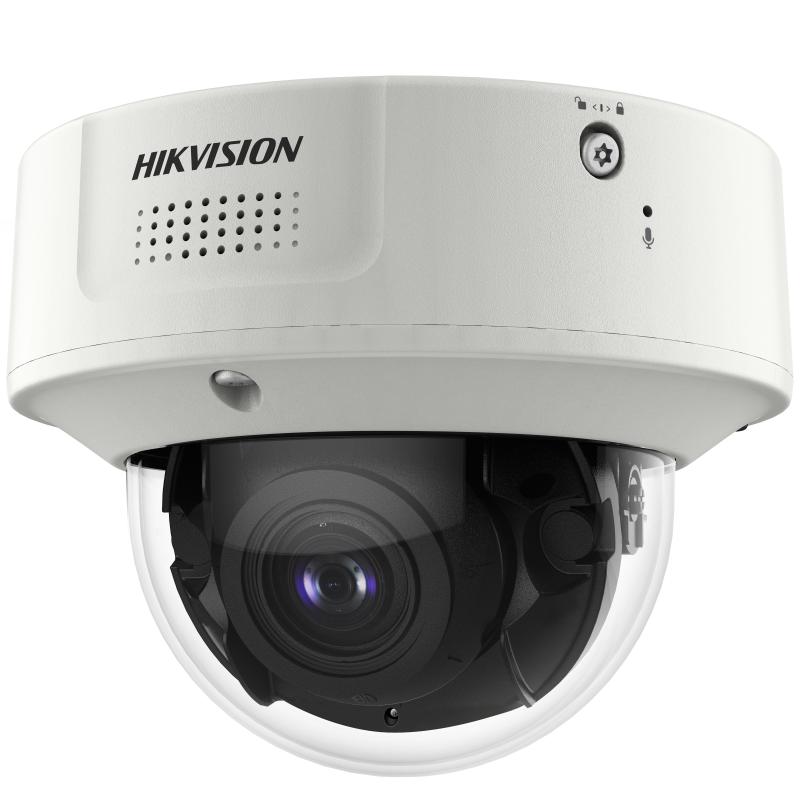

Hikvision iDS-2CD7146G2-IZS(2.8-12mm) DeepinView Moto Varifocal Dome Camera, 4MP, IP67
About this product
The Hikvision iDS-2CD7146G2-IZS(2.8-12mm) is a 4MP DeepinView Moto Varifocal Dome Camera with a motorized 2.8 to 12 mm varifocal lens, for IP CCTV systems. It pairs DarkFighter 2.0 low-light performance and 150 dB WDR with IR supplement light (Monitoring: 40 m for the 2.8 to 12 mm lens), and is water and dust resistant (IP67) and vandal proof (IK10).
Key features
- 4 MP resolution (max. 2688 × 1520) on a 1/1.8" Progressive Scan CMOS sensor
- Motorized 2.8 to 12 mm varifocal lens: horizontal FOV 114.6° to 41.8°, auto, semi-auto and manual focus
- IR supplement light, range Monitoring: 40 m (2.8 to 12 mm), 850 nm
- DarkFighter 2.0 low-light performance; minimum illumination Color: 0.0005 Lux @ (F1.2, AGC ON)
- 150 dB WDR for clear imaging against strong back light
- High frame rate up to 2MP@120fps and 4MP@60fps, supported under monitoring mode only
- Built-in dual-mic and speaker for real-time audio security
- Built-in G-sensor for vibration detection and built-in power meter for voltage exception alarm
Frequently asked questions
What lens does the iDS-2CD7146G2-IZS(2.8-12mm) have?
A motorized 2.8 to 12 mm varifocal lens with a horizontal FOV of 114.6° to 41.8°, auto, semi-auto and manual focus, P-iris and an aperture of F1.38 to F2.53.
How far does the IR reach?
The IR supplement light has a range of Monitoring: 40 m with the 2.8 to 12 mm lens, at an IR wavelength of 850 nm. Minimum illumination is B/W: 0 Lux with IR.
Can it be fitted outdoors?
It is water and dust resistant (IP67) and vandal proof (IK10).
Does it have audio?
Yes. It has a built-in dual-mic and speaker for real-time audio security, with audio compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC.
What does the AI open platform support?
Up to 4 models (detection model, classification model or mixed model), with HEOP 2.0 OpendevSDK and 2.5 TOPS of computing power.
Which software can view it?
The iVMS-4200, Hik-Connect and Hik-Central clients, with up to 20 channels of simultaneous live view. It also supports ONVIF (Profile S, Profile G, Profile T, Profile M).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-2CD7146G2-IZS(2.8-12mm) |
| Manufacturer Part Number (MPN) | iDS-2CD7146G2-IZS(2.8-12mm) |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter, Blue glass module (less ghost phenomenon) |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| FOV (2.8 to 12 mm) | horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1° |
| Focus | Auto, Semi-auto, Manual |
| Iris Type | P-iris |
| Aperture (2.8 to 12 mm) | F1.38 to F2.53 |
| Supplement Light Type | IR |
| Supplement Light Range (2.8 to 12 mm) | Monitoring: 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Computing Power | 2.5 TOPS |
| Open Capability | HEOP 2.0 OpendevSDK |
| AI Open Platform models | Up to 4 models (detection model, classification model, mixed model) |
| Main Stream (monitoring mode) | 50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080); 60 Hz: up to 60 fps (2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080); high frame rate is supported under monitoring mode only |
| Video Compression (main stream) | H.265+/H.265/H.264+/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Streams | 5 streams |
| Region Of Interest (ROI) | 4 fixed regions for each stream |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| WDR | 150 dB |
| Day/Night Switch | Day, Night, Auto, Schedule, Alarm Trigger |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| Privacy Mask | 8 programmable polygon privacy masks |
| SNR | ≥ 52 dB |
| Image Stabilization | EIS |
| Simultaneous Live View | Up to 20 channels |
| API | ISAPI, SDK, ISUP, OTAP, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Protection | IP67, IK10 |
