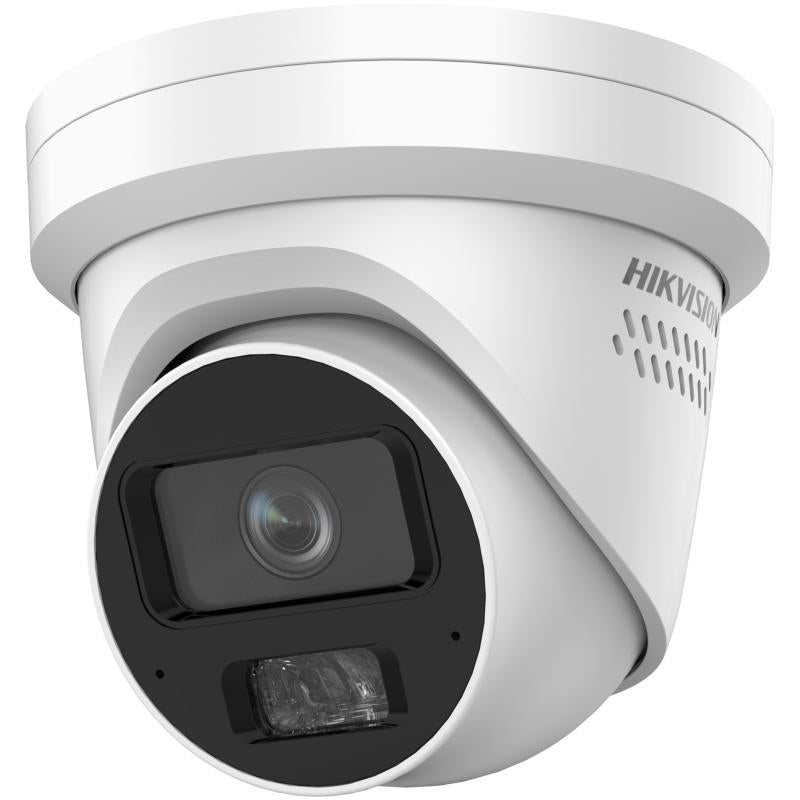

Hikvision iDS-2CD5347G2/V-XS(2.8MM) DeepinViewX Fixed Lens Turret Camera, 4MP, 2.8mm
About this product
The Hikvision iDS-2CD5347G2/V-XS(2.8MM) is a 4MP DeepinViewX fixed lens turret camera for perimeter protection, with a 2.8 mm lens giving a horizontal FOV of 111°. It runs a dedicated large scale AI model for perimeter protection, which Hikvision states reduces false alarms by 90% compared to conventional AI cameras, and uses Darkfighter 2.0 technology for low-light performance.
Key features
- 4MP, 1/1.8" progressive scan CMOS, max. resolution 2688 × 1520
- 2.8 mm fixed focal lens, F1.0: horizontal FOV 111°, vertical FOV 58°, diagonal FOV 138°
- Hybrid (IR and white light) smart supplement light, up to 40 m
- Dedicated large scale AI model for perimeter protection, reducing false alarms by 90% compared to conventional AI cameras
- AI Encoding to reduce storage usage by 50% while keeping image quality of key targets like human and vehicles
- 140 dB WDR
- 2 built-in microphones and 1 built-in speaker
- Water and dust resistant (IP67)
Frequently asked questions
What does the 2.8 mm lens cover?
Horizontal FOV 111°, vertical FOV 58° and diagonal FOV 138°, through a fixed focal lens at F1.0.
How far does it see at night?
Its hybrid (IR and white light) supplement light reaches up to 40 m, with smart supplement light and an IR wavelength of 850 nm.
How does it cut false alarms?
It uses a dedicated large scale AI model for perimeter protection, which Hikvision states reduces false alarms by 90% compared to conventional AI cameras, and motion detection can trigger alarms by specified target types (human and vehicle).
What storage does it support?
A built-in memory card slot for microSD/microSDHC/microSDXC card up to 1 TB, plus NAS (NFS, SMB/CIFS). AI Encoding reduces storage usage by 50% while keeping image quality of key targets like human and vehicles.
Does it have audio?
Yes. It has 2 built-in microphones and 1 built-in speaker, and audible warning is one of its event linkage actions.
Which apps and software work with it?
The iVMS-4200 and Hik-Connect clients, and it supports Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK and ISUP.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-2CD5347G2/V-XS(2.8MM) |
| Manufacturer Part Number (MPN) | iDS-2CD5347G2/V-XS(2.8MM) |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter, Blue glass module (less ghost phenomenon) |
| Angle Adjustment | Pan: 0° to 355°,tilt: 0° to 65°,rotate: 0° to 360° |
| Focal Length & FOV | 2.8 mm, horizontal FOV 111°, vertical FOV 58°, diagonal FOV 138° |
| Lens Type | Fixed focal lens |
| Iris Type | Fixed |
| Aperture | F1.0 |
| DORI (2.8 mm) | Detect: 61.5 m, Observe: 24.4 m, Recognize: 12.73 m, Identify: 6.2 m |
| Supplement Light Type | Hybrid (IR and White Light) |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Video Compression (main stream) | H.265+/H.265/H.264+/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| AI Encoding | Yes |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
| Client | iVMS-4200,Hik-Connect |
| WDR | 140 dB |
| Image Enhancement | BLC,HLC,3D DNR,Defog,Distortion Correction |
| Privacy Mask | 8 programmable polygon privacy masks |
| Image Stabilization | EIS |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Built-In Microphone | 2 built-in microphones |
| Built-In Speaker | 1 built-in speaker |
| Power Output | 12 VDC, max. 100 mA |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Smart Event | Scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection, loitering detection, people gathering detection, fast moving detection, parking detection |
| Face Capture | Detects up to 60 faces simultaneously |
| Protection | IP67 |
| Power | 12VDC & PoE |
