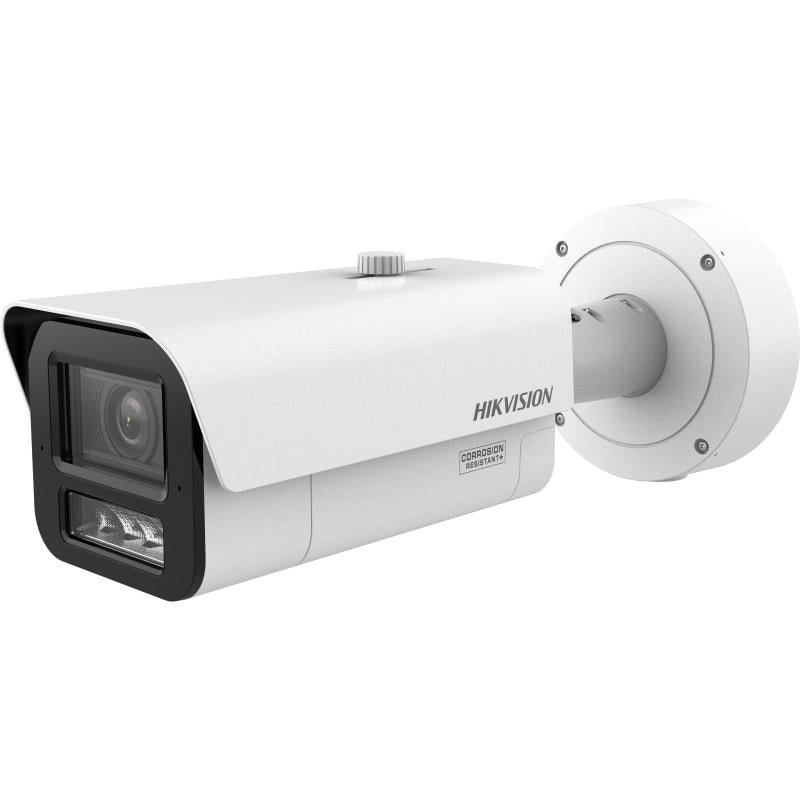

Hikvision iDS-2CD7A46G2/V-XZHSY(2.8-12mm) DeepinViewX Moto Varifocal Bullet Camera, 4MP, IP67
About this product
The Hikvision iDS-2CD7A46G2/V-XZHSY(2.8-12mm) is a 4MP DeepinViewX Moto Varifocal Bullet Camera for perimeter protection, with a 2.8 to 12 mm varifocal lens, for IP CCTV systems. It uses a dedicated large scale AI model for perimeter protection, which Hikvision states reduces false alarms by 90% compared to conventional AI cameras, and is water and dust resistant (IP67) and vandal proof (IK10).
Key features
- 4 MP resolution (max. 2688 × 1520) on a 1/1.8" Progressive Scan CMOS sensor
- 2.8 to 12 mm varifocal lens: horizontal FOV 106° to 41.8°, with auto, semi-auto and manual focus
- Low-light performance via DarkFighter technology; minimum illumination Color: 0.0005 Lux @ (F1.2, AGC ON)
- IR and white supplement light; supplement light range (2.8 to 12 mm) Monitoring: 60 m
- 140 dB WDR for clear imaging against strong back light
- Motion detection with alarm triggering by specified target types (human and vehicle)
- 2 built-in microphones and 1 built-in speaker
- IP67, IK10, NEMA 4X (optional) protection and a built-in heater for rainy or snowy weather
Frequently asked questions
What lens does the iDS-2CD7A46G2/V-XZHSY(2.8-12mm) have?
A 2.8 to 12 mm varifocal lens with a horizontal FOV of 106° to 41.8°, auto, semi-auto and manual focus, P-iris and an aperture of F1.47 to F2.5.
How does it perform at night?
It has IR and white supplement light, with a supplement light range of Monitoring: 60 m for the 2.8 to 12 mm lens. Minimum illumination is Color: 0.0005 Lux @ (F1.2, AGC ON) and B/W: 0 Lux with IR, and low-light performance comes via DarkFighter technology.
How does it cut false alarms?
It uses a dedicated large scale AI model for perimeter protection, which Hikvision states reduces false alarms by 90% compared to conventional AI cameras. Motion detection can trigger alarms by specified target types (human and vehicle).
Can it be mounted outdoors?
It is water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional), with a built-in heater for rainy or snowy weather.
What storage does it support?
A built-in memory card slot for microSD/microSDHC/microSDXC cards up to 1 TB, plus network storage on NAS (NFS, SMB/CIFS) with Auto Network Replenishment (ANR).
Does it have audio?
Yes. It has 2 built-in microphones and 1 built-in speaker (max. power consumption: 1.5 W), plus 1 line in and 1 line out on 3.5 mm connectors.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-2CD7A46G2/V-XZHSY(2.8-12mm) |
| Manufacturer Part Number (MPN) | iDS-2CD7A46G2/V-XZHSY(2.8-12mm) |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR, 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter, Blue glass module (less ghost phenomenon) |
| Focal Length & FOV (2.8 to 12 mm) | 2.8 to 12 mm, horizontal FOV 106° to 41.8°, vertical FOV 55.4° to 23.6°, diagonal FOV 130° to 48.1° |
| Focus | Auto, Semi-auto, Manual |
| Iris Type | P-iris |
| Aperture (2.8 to 12 mm) | F1.47 to F2.5 |
| DORI, wide (2.8 to 12 mm) | Detect: 64.7 m, Observe: 25.7 m, Recognize: 12.9 m, Identify: 6.5 m |
| DORI, tele (2.8 to 12 mm) | Detect: 151.7 m, Observe: 60.2 m, Recognize: 30.3 m, Identify: 15.2 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range (2.8 to 12 mm) | Monitoring: 60 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream (monitoring mode, 50 Hz) | up to 50 fps (2688 × 1520, 2560 × 1440, 1280 × 720), up to 100 fps (1920 × 1080); high frame rate is supported under monitoring mode only |
| Video Compression (main stream) | H.265+/H.265/H.264+/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Streams | 5 streams |
| WDR | 140 dB |
| Day/Night Switch | Day, Night, Auto, Schedule, Alarm Trigger |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| Privacy Mask | 8 programmable polygon privacy masks |
| SNR | ≥ 52 dB |
| Image Stabilization | EIS |
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) |
| Built-In Microphone | 2 built-in microphones |
| Built-In Speaker | 1 built-in speaker, Max. power consumption: 1.5 W |
| Audio | 1 input (line in), 3.5 mm connector; 1 output (line out), 3.5 mm connector |
| RS-485 | -Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Power Output | -Y: 12 VDC, max. 100 mA |
| Simultaneous Live View | Up to 20 channels |
| API | ISAPI, SDK, ISUP, OTAP, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Smart Event | scene change detection, audio exception detection, defocus detection |
| Protection | IP67, IK10, NEMA 4X (optional) |
