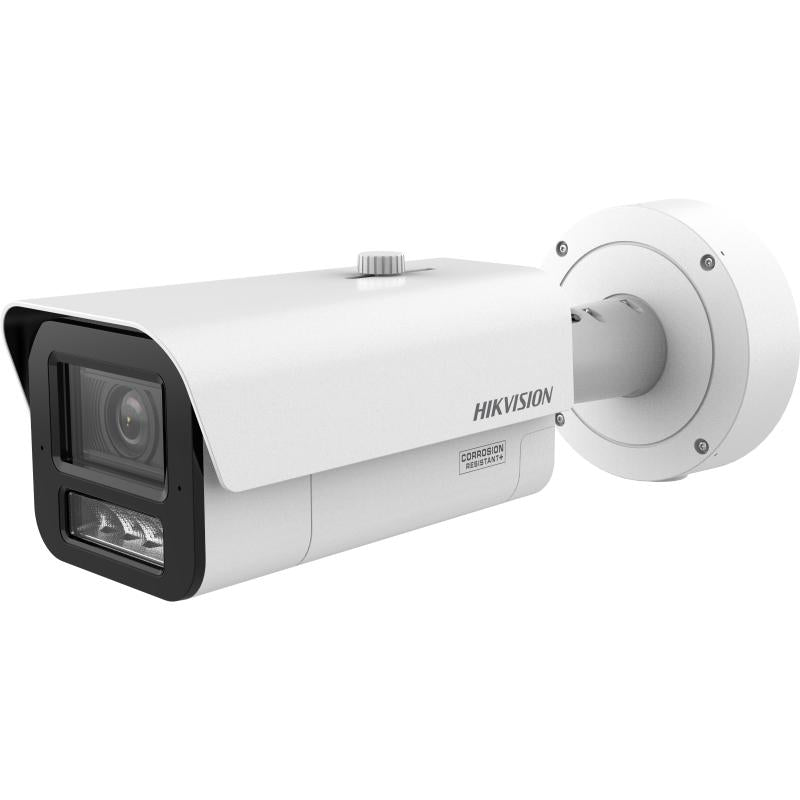

Hikvision iDS-2CD7A86G2/V-XZHSY(2.8-12mm) DeepinViewX Moto Varifocal Bullet Camera, 8MP, IP67
Free Delivery
Save £170.63
About this product
The Hikvision iDS-2CD7A86G2/V-XZHSY(2.8-12mm) is an 8MP DeepinViewX Moto varifocal bullet camera for perimeter protection, with a 2.8 to 12 mm lens. Its dedicated large scale AI model for perimeter protection is stated to reduce false alarms by 90% compared to conventional AI cameras.
Key features
- 8 MP resolution, max. 3840 × 2160
- 2.8 to 12 mm varifocal lens, horizontal FOV 104° to 41.2°
- Low-light performance via DarkFighter technology
- IR and white supplement light, 60 m range (monitoring) on the 2.8 to 12 mm lens
- Dedicated large scale AI model for perimeter protection
- Water and dust resistant (IP67) and vandal proof (IK10)
- Built-in heater for a clear image under rainy or snowy weather
- 2 built-in microphones and 1 built-in speaker
Frequently asked questions
What lens does this camera have?
A 2.8 to 12 mm varifocal lens with auto, semi-auto and manual focus, giving a horizontal FOV of 104° to 41.2°.
How does it see at night?
It has IR and white supplement light with smart supplement light; the supplement light range for the 2.8 to 12 mm lens is 60 m (monitoring), and the IR wavelength is 850 nm.
Where does it store video?
On a microSD/microSDHC/microSDXC card of up to 1 TB in the built-in slot, or on NAS (NFS, SMB/CIFS) with Auto Network Replenishment (ANR).
Can it be installed in harsh weather?
It is water and dust resistant (IP67) and vandal proof (IK10), and a built-in heater helps keep the image clear under rainy or snowy weather.
Does it have audio and alarm connections?
Yes: 2 built-in microphones, 1 built-in speaker, a 3.5 mm line in and line out, and 2 alarm inputs and 2 alarm outputs (max. 24 VDC/24 VAC, 1 A).
Which software can view it?
The iVMS-4200, Hik-Connect and Hik-Central clients, and it supports ONVIF (Profile S, Profile G, Profile T, Profile M).
Technical Details
Specifications
Brand
Hikvision
Model
iDS-2CD7A86G2/V-XZHSY(2.8-12mm)
Manufacturer Part Number (MPN)
iDS-2CD7A86G2/V-XZHSY(2.8-12mm)
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
3840 × 2160
Min. Illumination
Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR, 0 Lux with light
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter, Blue glass module (less ghost phenomenon)
Focal Length & FOV
2.8 to 12 mm, horizontal FOV 104° to 41.2°, vertical FOV 54.2° to 23.1°, diagonal FOV 126.5° to 47.3°
Focus
Auto, Semi-auto, Manual
Iris Type
P-iris
Aperture (2.8 to 12 mm)
F1.47 to F2.5
DORI, wide (2.8 to 12 mm)
Detect: 93.8 m, Observe: 37.2 m, Recognize: 18.8 m, Identify: 9.4 m
DORI, tele (2.8 to 12 mm)
Detect: 220 m, Observe: 87.3 m, Recognize: 44.0 m, Identify: 22.0 m
Supplement Light Type
IR, White Light
Supplement Light Range (2.8 to 12 mm)
Monitoring: 60 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Main Stream (monitoring mode, 50 Hz)
up to 50 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1280 × 720), up to 100 fps (1920 × 1080); high frame rate is supported under monitoring mode only
Video Compression (main stream)
H.265+/H.265/H.264+/H.264
Video Bit Rate
32 Kbps to 16 Mbps
Audio Type
Mono sound
Simultaneous Live View
Up to 20 channels
API
ISAPI, SDK, ISUP, OTAP, ONVIF (Profile S, Profile G, Profile T, Profile M)
User/Host
Up to 32 users; 3 user levels: administrator, operator, and user
Network Storage
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Client
iVMS-4200, Hik-Connect, Hik-Central
Day/Night Switch
Day, Night, Auto, Schedule, Alarm Trigger
Image Enhancement
BLC, HLC, 3D DNR, Distortion Correction, Defog
Privacy Mask
8 programmable polygon privacy masks
SNR
≥ 52 dB
Image Stabilization
EIS
Ethernet Interface
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Alarm
2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Built-In Microphone
2 built-in microphones
Built-In Speaker
1 built-in speaker, Max. power consumption: 1.5 W
Smart Event
Scene change detection, audio exception detection, defocus detection
E-PTZ
Support Patrol and Auto Tracking settings
Protection
IP67, IK10
Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-2CD7A86G2/V-XZHSY(2.8-12mm) |
| Manufacturer Part Number (MPN) | iDS-2CD7A86G2/V-XZHSY(2.8-12mm) |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR, 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter, Blue glass module (less ghost phenomenon) |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 104° to 41.2°, vertical FOV 54.2° to 23.1°, diagonal FOV 126.5° to 47.3° |
| Focus | Auto, Semi-auto, Manual |
| Iris Type | P-iris |
| Aperture (2.8 to 12 mm) | F1.47 to F2.5 |
| DORI, wide (2.8 to 12 mm) | Detect: 93.8 m, Observe: 37.2 m, Recognize: 18.8 m, Identify: 9.4 m |
| DORI, tele (2.8 to 12 mm) | Detect: 220 m, Observe: 87.3 m, Recognize: 44.0 m, Identify: 22.0 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range (2.8 to 12 mm) | Monitoring: 60 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream (monitoring mode, 50 Hz) | up to 50 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1280 × 720), up to 100 fps (1920 × 1080); high frame rate is supported under monitoring mode only |
| Video Compression (main stream) | H.265+/H.265/H.264+/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Type | Mono sound |
| Simultaneous Live View | Up to 20 channels |
| API | ISAPI, SDK, ISUP, OTAP, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Day/Night Switch | Day, Night, Auto, Schedule, Alarm Trigger |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| Privacy Mask | 8 programmable polygon privacy masks |
| SNR | ≥ 52 dB |
| Image Stabilization | EIS |
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) |
| Built-In Microphone | 2 built-in microphones |
| Built-In Speaker | 1 built-in speaker, Max. power consumption: 1.5 W |
| Smart Event | Scene change detection, audio exception detection, defocus detection |
| E-PTZ | Support Patrol and Auto Tracking settings |
| Protection | IP67, IK10 |
