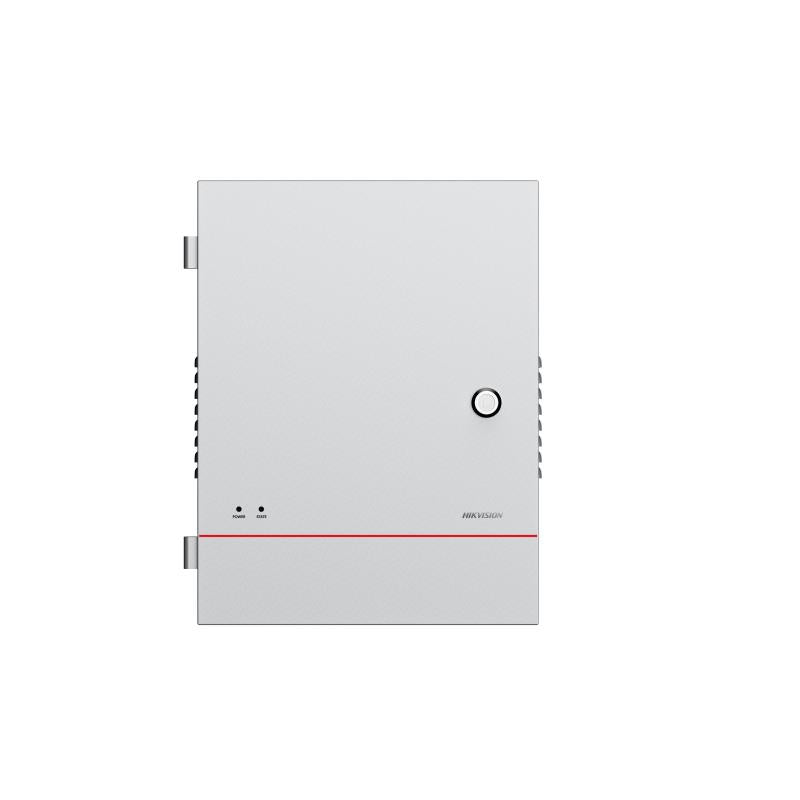

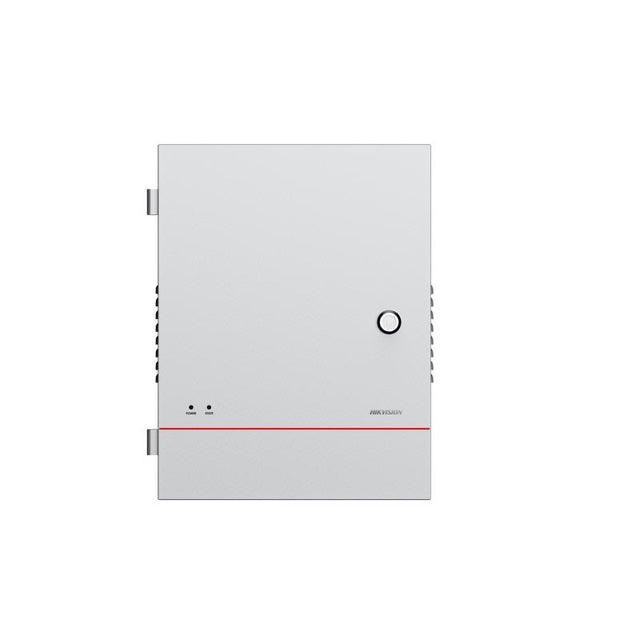

Hikvision DS-QFV0102W Distributed Vibration Fibre-Optic Sensing Server, Dual Channel, Up to 1 km per Channel
About this product
The Hikvision DS-QFV0102W is a wall mounted distributed vibration fibre-optic sensing server for intrusion monitoring, supporting dual channel DAS vibration fibre with a single-channel detection distance up to 1 km. It monitors intrusion such as climbing, crossing and excavation, with a positioning accuracy of ± 5 m and an alarm response time of ≤ 2 s.
Key features
- Dual channel DAS vibration fibre, with 2 FC/APC fiber interfaces
- Single-channel detection distance up to 1 km
- Simultaneous positioning and monitoring of multiple vibration points, with positioning accuracy of ± 5 m
- Frequency response range from 10 Hz to 5 kHz
- Alarm response time ≤ 2 s
- Alarm triggers: intrusion alarm, fiber cut alarm, tampering alarm
- Reports the alarm type, time, latitude and longitude, and alarm level
- Power: 24 VDC ± 15%, max. 60 W
Frequently asked questions
How long a fibre run can the DS-QFV0102W monitor?
It supports dual channel DAS vibration fibre, with a single-channel detection distance up to 1 km.
How accurately does it locate an intrusion?
Positioning accuracy is ± 5 m, and it supports simultaneous positioning and monitoring of multiple vibration points.
What kinds of intrusion does it detect?
It monitors intrusion in scenarios including climbing, crossing and excavation. Alarm triggers are intrusion alarm, fiber cut alarm and tampering alarm.
What power does it need?
24 VDC ± 15%, max. 60 W, through 1 power input interface with 24V DC power input.
What fibre and connectors does it use?
The fiber type is single mode (ITU-T G.652D), connected to 2 FC/APC fiber interfaces.
What are its operating conditions?
Operating temperature is -40 °C to 60 °C (-40 °F to 140 °F) and operating humidity is 0% to 93% (± 2%).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-QFV0102W |
| Manufacturer Part Number (MPN) | DS-QFV0102W |
| Fiber Type | Single mode (ITU-T G.652D) |
| Channel | 2 |
| Single-Channel Detection Range | 1km |
| Positioning Accuracy | 1km：±5m |
| Frequency Response | 10Hz to 5kHz |
| Alarm Response Time | ≤ 2s |
| Alarm Trigger | Intrusion alarm, Fiber cut alarm, Tampering alarm |
| Power indicator | Solid blue: Device is connected to the power supply and powers on; Blue light is not on: Device powers off |
| Status indicator | Solid blue: Device works normally without any error; Red light flashes slowly: Wired network error; Solid red: Device error |
| Buzzer | Stay buzzing for tampering alarm |
| Switch | Rocker switch for power |
| Communication Method | Wired communication |
| Fiber Interface | 2 FC/APC fiber interfaces |
| Power Interface | 1 power input interface with 24V DC power input |
| Function Interface | 1 1000 M network interface, 1 RS-232 interface, 2 RS-485 interface, 2 USB 3.0 interfaces, 1 3.5 mm audio interface, 2 alarm input interfaces, 16 relay interfaces |
| Material | Metal |
| Power | 24 VDC ± 15%, max.60 W |
| Power Consumption | < 60 W |
| Color | silvery |
| Operating Humidity | 0% to 93% (± 2%) |
| Laser Classification | Class 1 |
| Dimension | 417 mm × 337 mm × 151 mm (16.42" × 13.27" × 5.94") |
| Weight | Approx.10 kg (22.05 lb.) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
