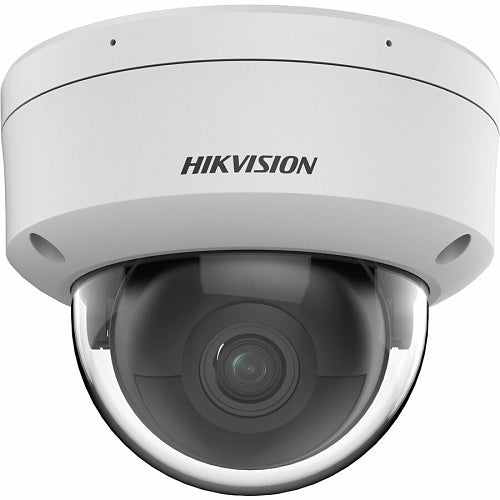

Hikvision DS-2CD3146G2-ISU(6mm)(H) dome camera, 4MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hikvision DS-2CD3146G2-ISU(6mm)(H) is a dome camera from the 3 Series with AcuSense & Heop range.
Powered by deep learning algorithms, Hikvision AcuSense technology delivers human and vehicle target classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, greatly enhancing alarm efficiency and effectiveness.
Key features
- Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
- Supports 1.5 Tops computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources
- High quality imaging with 4MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle target classification based on deep learning
- Water and dust resistant (IP67) and vandal-resistant (IK10)
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
DS-2CD3146G2-ISU(6mm)(H)
Product Series
3 Series with AcuSense & Heop
Product Type
Dome Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Mount Type
M12 (S-Mount)
Lens Type
Fixed
Maximum Aperture
f/1.4
Maximum Frame Rate
30fps
Minimum Focal Length
6.00mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Camera
Image Sensor Type
CMOS
Night Vision Distance
40.00m
Certifications
Ingress protection
IP67
Display & graphics
Maximum video resolution
2688 x 1520
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/3 Second
Shortest Shutter Speed
1/100000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
6mm
Lens Included
Yes
Maximum Focal Length
6.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dust Resistant, Vandal Resistant, Water Resistant
Form Factor
Dome
Weight
500.00g
Power description
Input Voltage
12V DC
Product information
Diameter
121.50mm
Storage
Storage Type
SD Card
Miscellaneous
Environmental status
Yes
Features
3D Digital Noise Reduction, Auto Gain Control, Back Light Compensation (BLC), Day/Night, Digital Watermark, Highlight Compensation (HLC), Human Detection, Mirror, Motion Detection, Password Protection, Region of Interest, Tamper Detection, Vehicle Detection, White Balance, Wide Dynamic Range
Attributes
Input Voltage
12V DC
Weight
500.00g
Impact protection
IK10
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2CD3146G2-ISU(6mm)(H) |
| Product Series | 3 Series with AcuSense & Heop |
| Product Type | Dome Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Mount Type | M12 (S-Mount) |
| Lens Type | Fixed |
| Maximum Aperture | f/1.4 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 6.00mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 40.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 2688 x 1520 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/3 Second |
|---|---|
| Shortest Shutter Speed | 1/100000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 6mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 6.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dust Resistant, Vandal Resistant, Water Resistant |
| Form Factor | Dome |
| Weight | 500.00g |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 121.50mm |
|---|
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | 3D Digital Noise Reduction, Auto Gain Control, Back Light Compensation (BLC), Day/Night, Digital Watermark, Highlight Compensation (HLC), Human Detection, Mirror, Motion Detection, Password Protection, Region of Interest, Tamper Detection, Vehicle Detection, White Balance, Wide Dynamic Range |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 500.00g |
| Impact protection | IK10 |
Hikvision DS-2CD3146G2-ISU(6mm)(H) dome camera, 4MP
