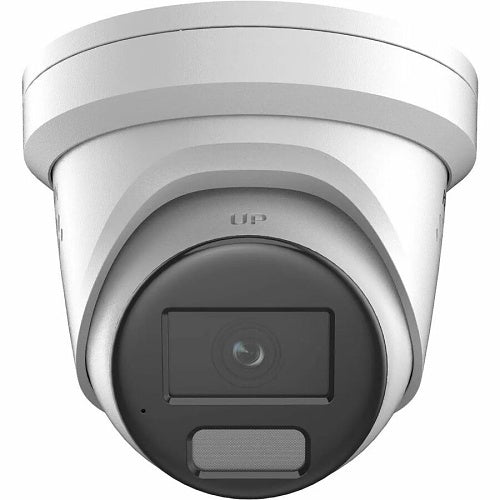

Hikvision DS-2CD3346G2-ISU/SL(2.8mm)(H) dome camera, 4MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hikvision DS-2CD3346G2-ISU/SL(2.8mm)(H) is a dome camera from the 3 Series with AcuSense & Heop range.
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness. Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
Supports 1.5 Tops computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provides real-time security via built-in two-way audio
Water and dust resistant (IP67)
Key features
- Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
- Supports 1.5 Tops computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources
- High quality imaging with 4MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- Water and dust resistant (IP67)
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2CD3346G2-ISU/SL(2.8mm)(H) |
| Product Series | 3 Series with AcuSense & Heop |
| Product Type | Dome Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Mount Type | M12 (S-Mount) |
| Lens Type | Fixed |
| Maximum Aperture | f/1.4 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 40.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 2688 x 1520 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/3 Second |
|---|---|
| Shortest Shutter Speed | 1/100000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Durability | Dust Resistant, Water Resistant |
|---|---|
| Form Factor | Turret |
| Weight | 790.00g |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 138.30mm |
|---|
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | 3D Digital Noise Reduction, Back Light Compensation (BLC), Cross Line Detection, Defog, Highlight Compensation (HLC), Human Detection, Mirror, Motion Detection, Noise Detection, Privacy Masking, Region of Interest, Tamper Detection, Vehicle Detection |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 790.00g |
