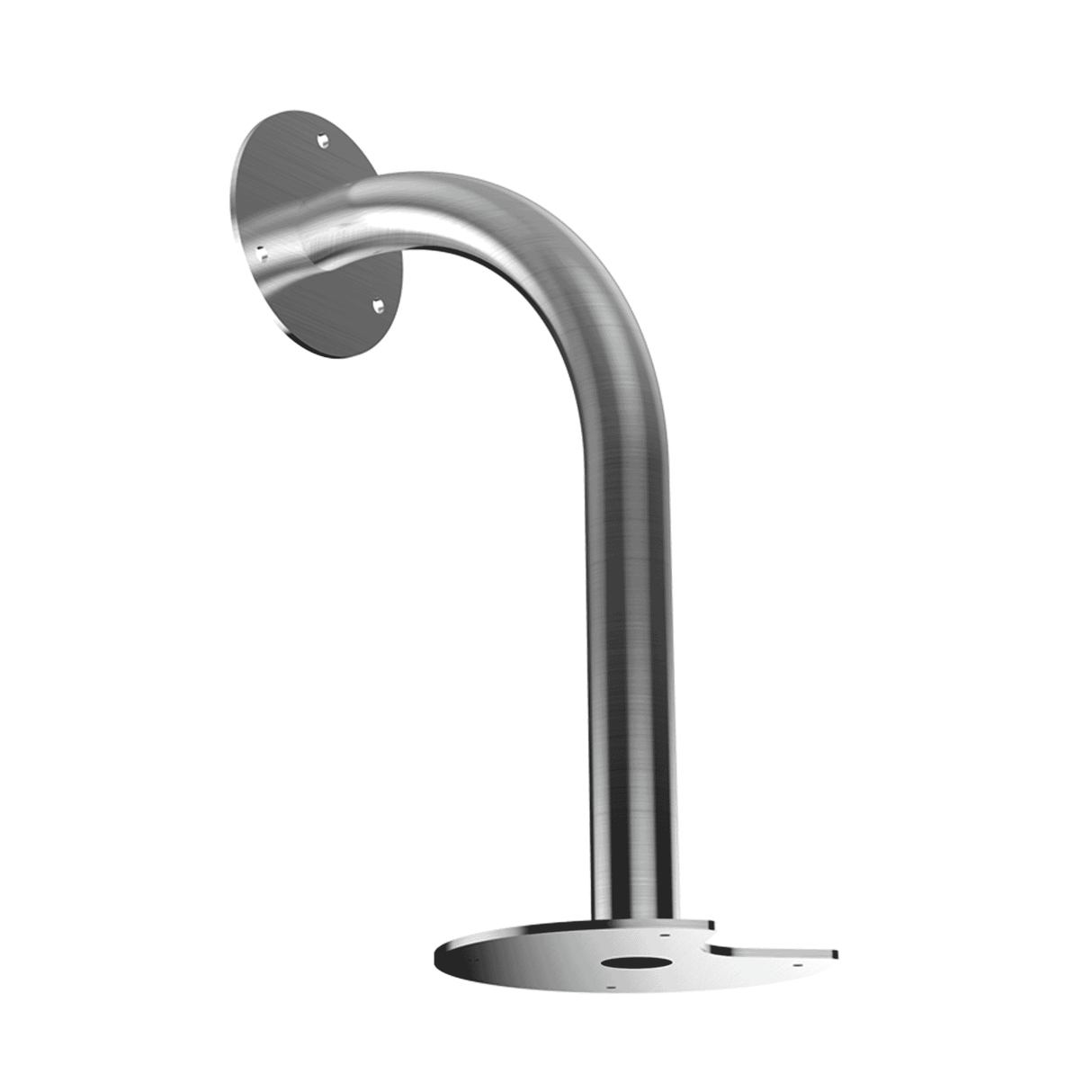

Hikvision DS-1695ZJ-X Stainless Steel CCTV Wall Mount, SUS304, 15 kg

Introduction: Hikvision DS-1695ZJ-X Stainless Steel CCTV Wall Mount

The Hikvision DS-1695ZJ-X is a compact, purpose-built wall bracket for CCTV and PTZ camera installations. Constructed from SUS304 stainless steel with a surface spray treatment, this bracket offers a balance of corrosion resistance, strength and a tidy, professional appearance. With an integrated cable‑hole design and a maximum rated load of 15 kg (33 lb), it is aimed at installers and integrators who need a reliable, neat mounting solution for indoor and outdoor environments (with proper outdoor sealing).

Key features at a glance

• Material:SUS304 stainless steel with surface spray treatment for improved corrosion resistance.
• Load capacity:Rated to support up to 15 kg (33 lb).
• Cable management:Integrated cable‑hole design to keep wiring concealed and protected.
• Compact footprint:Approximately 1.042 kg in weight and compact dimensions (Ø 136 mm × 204.3 mm × 353.4 mm).
• Indoor/outdoor suitability:Suitable for outdoor use when sealed with the recommended waterproof rubber; follow installation guidelines.
• Installation guidance:Manufacturer recommends wall support of at least three times the combined weight of mount and camera for safety.

Detailed specifications and benefits

Understanding the detailed specifications helps installers decide whether the DS-1695ZJ-X is appropriate for a specific site or camera. The key specification points and their practical benefits are outlined below.

• SUS304 stainless steel (surface spray treatment):SUS304 is an austenitic stainless steel commonly used in environments where corrosion resistance is important. The additional surface spray treatment further enhances the brackets resistance to staining and surface degradation, improving longevity in harsh or humid environments compared with untreated metals.
• Appearance/finish:Natural stainless steel colour provides a professional, neutral look that blends with most camera housings and architectural styles.

• Weight:Approx. 1.042 kg — light enough for easy handling and installation, while still robust.
• Dimensions:Ø 136 mm × 204.3 mm × 353.4 mm — compact footprint that reduces visual impact and works well in space-constrained locations.
• Maximum load:15 kg (33 lb) — suitable for a wide range of box, dome and smaller PTZ cameras. Important: the manufacturer advises the mounting surface be capable of supporting at least three times the combined weight of the mount and camera to maintain safety margins.
• Mounting/hole details:Multiple hole sizes and standard spacings (Ø136 mm, Ø80 mm, Ø100 mm, Ø110 mm, 3 × Ø6.5 mm, 4 × Ø3.5 mm, 77.8 mm spacing) to accommodate different camera base plates and anchor types — see datasheet drawing for exact templates.

• Integrated cable‑hole design:Makes routing power and data cables straightforward, helps maintain a tidy appearance, and reduces exposure of cables to weather or tampering.
• Outdoor installations:Use the recommended waterproof rubber seal when mounting outdoors to maintain weather resistance.
• Compliance & warranty:Verify these items with your supplier or Hikvision representative if they are needed for procurement, compliance or warranty tracking.

Use cases and scenarios where this bracket excels

The DS-1695ZJ-X fits a range of common CCTV mounting scenarios due to its stainless‑steel construction, compact size and cable management features. Typical use cases include:

• Commercial properties:Retail stores, office buildings and warehouses where a durable, unobtrusive mounting solution is required. The stainless finish complements modern facades and interior decors.
• Industrial environments:Sites with occasional exposure to moisture or corrosive atmospheres where stainless‑steel components outperform mild steel or painted alternatives.
• Outdoor perimeters and entrances:When mounted with proper waterproof sealing, the bracket is suitable for entrance coverage and perimeter surveillance where tidy wiring and a robust mount are important.
• PTZ and dome camera installations:Supports compact PTZ heads and domes up to 15 kg. The mounting hole pattern makes it compatible with many camera base plates and junction boxes.
• Retrofits and upgrades:Because of its compact dimensions and multiple hole options, the bracket can simplify camera swaps or upgrades in existing mounts without large structural changes.

Comparisons with similar products on the market

When selecting a CCTV bracket, installers commonly weigh material, load capacity, cable management and price. Heres how the DS-1695ZJ-X compares to typical alternatives:

• Corrosion resistance:SUS304 generally offers better long-term corrosion resistance than painted mild steel and many aluminium alloys in marine or chemically active environments. Aluminium is lighter but can be more susceptible to galvanic corrosion depending on mounting hardware and local conditions.
• Strength and stiffness:Stainless steel offers good rigidity for stable camera mounting; aluminium can flex more under heavy loads or wind loading unless section sizes are increased.

• At 15 kg maximum load, the Hikvision bracket covers a broad range of modern cameras and compact PTZs. Heavy-duty, long-arm brackets designed for multi-axis stabilised PTZs or thermal assemblies will offer higher capacities but at the cost of increased size, weight and visual impact.
• For small-to-medium sized PTZs and domes, the DS-1695ZJ-X offers a practical balance between capacity, appearance and cost.

• The integrated cable‑hole design reduces installation time and yields a neater finished job compared to brackets that require external conduit or surface-mounted raceways. Some competing brackets incorporate internal junction boxes; choose according to whether you need additional space for connectors or weatherproofing accessories.

Conclusion: Why choose the Hikvision DS-1695ZJ-X

The Hikvision DS-1695ZJ-X stainless steel wall mount is a practical, well-specified bracket for many CCTV and PTZ installation needs. Its use of SUS304 stainless steel with surface spray treatment offers attractive corrosion resistance and a professional finish. The integrated cable‑hole design simplifies wiring and improves aesthetics, while the 15 kg load rating suits a wide range of cameras used in commercial, industrial and perimeter surveillance applications.

Before purchase, confirm any required compliance details—IP rating, CE/UKCA markings and warranty terms—with the manufacturer or distributor, and ensure the chosen mounting surface meets the recommended safety factor of three times the combined weight of the mount and camera. Verify currency and margin expectations with your procurement policy.

Overall, the DS-1695ZJ-X is a strong option when you need a compact, durable and tidy mounting solution that balances cost, appearance and practical performance for a wide variety of CCTV and PTZ camera installations.
