Introduction to the Hikvision DS-2CD2546G3-IZS2UY and its key features

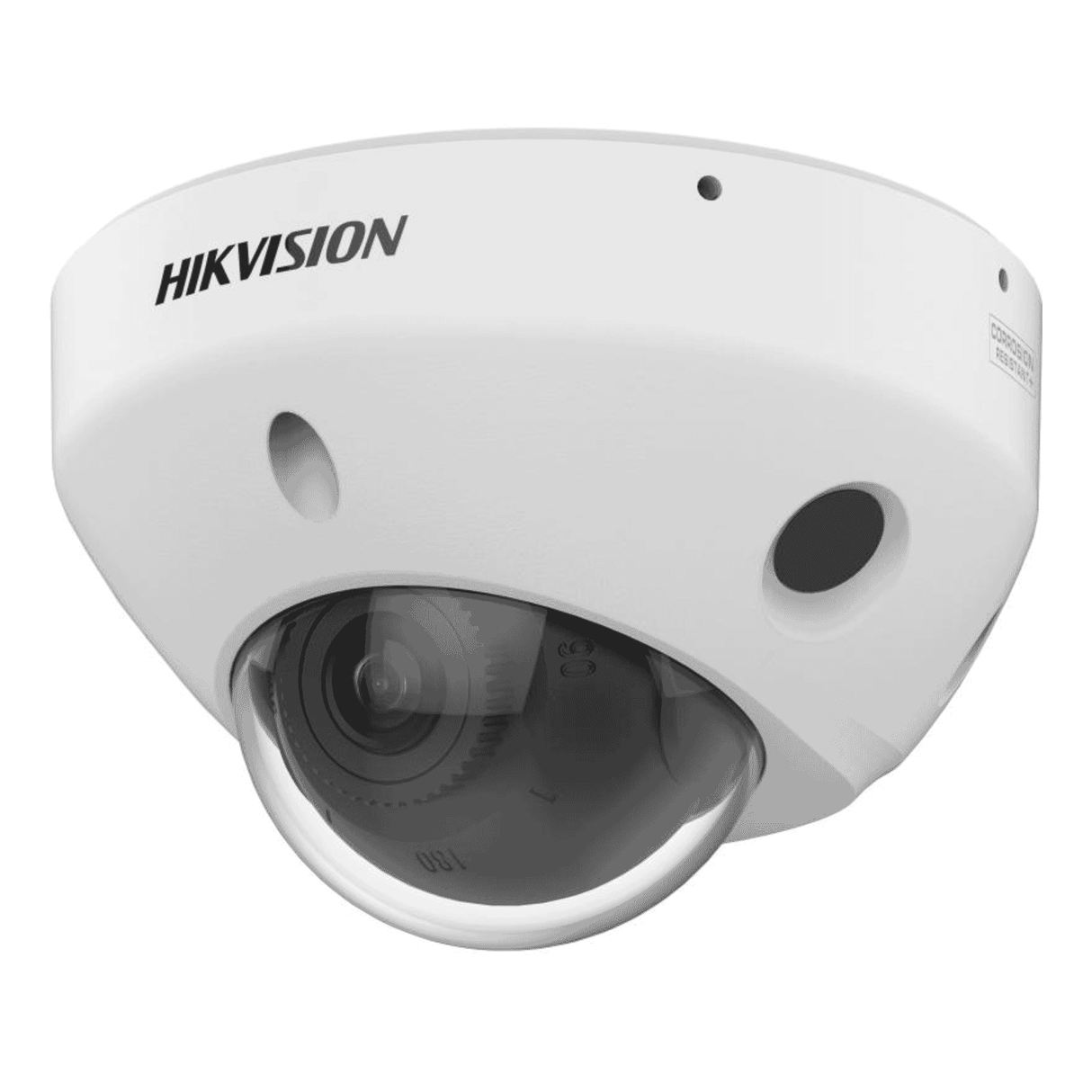

The Hikvision DS-2CD2546G3-IZS2UY is a compact but capable 4 MP AcuSense varifocal mini-dome designed for professional and semi-professional surveillance applications. Combining DarkFighter low-light imaging, a motorised 2.8694mm varifocal lens, on-device deep-learning analytics and robust environmental protections, this camera aims to deliver clear imagery and reliable detection in challenging indoor and outdoor environments.
Key features at a glance:
- 4 MP (2688 D7 1520) resolution for detailed imagery.
- DarkFighter low-light performance plus IR supplement (up to ~30 m) for nighttime visibility.
- Motorised varifocal 2.8694 mm lens (F1.6) for flexible coverage.
- AcuSense on-device person and vehicle classification to reduce false alarms.
- Built-in array dual microphones for audio capture.
- Rugged environmental ratings: IP67, NEMA 4X and IK08.
- Power over Ethernet (PoE, IEEE 802.3af Class 3) or 12 VDC and local microSD storage support.
Detailed specifications and benefits
This mini-dome packs a range of technical capabilities into a small form factor. Below are the most relevant specifications and the benefits they deliver in real-world use.
- Image sensor:1/3" progressive-scan CMOS, delivering consistent frame capture and good image stability for moving scenes.
- Max resolution:2688 D7 1520 (4 MP) provides enough detail for recognition and evidence capture while keeping bandwidth and storage needs reasonable compared with higher-resolution options.
- Motorised varifocal lens 2.8694 mm (F1.6):The motorised point varifocal lens enables installers to adjust field of view remotely during commissioning, simplifying setup and ensuring optimal coverage without manual lens changes. Field of view ranges from wide coverage (2.8 mm) to narrower, longer-range observation (4 mm).
- DarkFighter:Advanced low-light imaging produces usable color video in very low ambient illumination, which helps reduce reliance on IR at dusk and early night when color context still matters.
- IR supplement light:Up to ~30 m (850 nm) for full black-and-white night coverage when ambient light is insufficient.
- Minimum illumination:Colour 0.001 Lux (F1.6, AGC ON); B/W 0 Lux with IR. This combination makes the camera effective across a broad range of lighting conditions.
- On-device deep learning:Person and vehicle classification runs on the camera itself, improving detection accuracy and dramatically reducing false alerts from shadows, animals or vegetation.
- Audio:Built-in array dual microphones allow local audio capture for events where sound adds context, useful for entrances, retail counters and vehicle areas (check local regulations on audio recording).
- Ingress and corrosion resistance:IP67 and NEMA 4X protect the camera from dust, water immersion and corrosive environments, making it suitable for coastal locations and harsh weather.
- Vandal resistance:IK08 rating offers physical protection against impacts, appropriate for public-facing installations.
- Power options:PoE (IEEE 802.3af Class 3) simplifies installation by delivering power and data over a single cable, while 12 VDC is available as an alternative.
- Local storage and protocols:microSD slot for local recording (refer to manufacturer datasheet for maximum supported capacity) and compatibility with ONVIF and Hikvision network protocols for integration with recorders and VMS solutions.
Additional technical highlights include DORI examples (detection/observation/recognition/identification distances) that help planners choose the right lens setting for a scene: Detection 66.6 m / 79.2 m (2.8 mm / 4 mm), Observation 26.4 m / 31.4 m, Recognition 13.3 m / 15.8 m, Identification 6.7 m / 7.9 m. Physical dimensions are compact (Ø113.6 mm D7 74.6 mm) and weight is approximately 400 g, easing ceiling or soffit mounting even in retrofit scenarios.
Use cases and scenarios where the camera excels
The DS-2CD2546G3-IZS2UY is designed to be versatile. Its combination of varifocal optics, strong low-light performance and AI analytics makes it particularly effective in the following settings:
- Perimeter surveillance:Wide-to-tele coverage from the varifocal lens lets a single camera be tuned to monitor fences, gates and access points. AcuSense reduces nuisance alerts from animals, foliage or weather, meaning fewer false alarms and more meaningful events.
- Retail loss prevention:High-resolution imagery, person detection and audio capture make the camera a solid choice for entrances, checkout areas and aisles where identifying suspicious behavior is critical.
- Parking lots and garages:DarkFighter plus IR ensures clear capture in low-light parking environments. Vehicle classification helps trigger recording or alerts for vehicle-centric incidents while filtering out irrelevant motion.
- Commercial and industrial sites:IP67/NEMA 4X corrosion resistance and IK08 vandal protection allow deployment in harsh outdoor or semi-exposed indoor areas such as loading docks or chemical plant perimeters.
- Contractor and DIY installs:Motorised lens adjustment, PoE support and ONVIF compatibility simplify installation and integration, making the camera suitable for professional installers and knowledgeable DIY users alike.
Comparisons with similar products in the market
When choosing a mini-dome camera, buyers typically compare resolution, low-light performance, analytics, environmental robustness and total cost of ownership. The DS-2CD2546G3-IZS2UY stands out in several ways:
- Versus fixed-lens mini-domes:Fixed-lens cameras are often cheaper but lack the flexibility of a varifocal lens. The motorised 2.8694 mm lens lets the installer tune framing for distance or field of view without swapping hardware, useful when coverage requirements are uncertain during planning.
- Versus non-AI cameras:Traditional motion detection triggers many false alarms from irrelevant motion. On-device AcuSense deep-learning classification filters for persons and vehicles, reducing cloud or operator time spent on false positives and lowering incident response costs.
- Versus higher-end PTZ or ultra-high-resolution cameras:PTZs and 8+ MP cameras deliver more flexibility or pixel density but bring higher costs, bandwidth and storage needs. The Hikvision 4 MP option is a cost-effective balance for many installations where persistent coverage and smart alerts matter more than extreme zoom or ultra-high resolution.
- Versus competitor offerings:Other brands offer similar combinations of low-light imaging and analytics; what differentiates products are software ecosystems, analytics tuning, and local support. Hikvisions broad product range and integration with its NVRs and management platforms make this model attractive where a consistent vendor ecosystem is desired. Buyers should compare warranty terms, privacy features and firmware update policies when selecting between vendors.
Customer feedback and reviews
There are no specific verified customer testimonials provided here. However, feedback commonly reported by installers and system integrators for cameras with this feature set includes:
- Appreciation for the motorised varifocal lens and remote adjustment, which saves on commissioning time and ladder work.
- Positive remarks about on-device person/vehicle classification reducing false alerts and improving operational efficiency.
- Recognition of DarkFighter performance for retaining color detail in low-light scenes prior to full IR engagement.
- Notes about the rugged housing and corrosion resistance enabling installations in coastal or industrial environments where cheaper cameras fail prematurely.
As with any security product, actual satisfaction depends on correct system design, appropriate placement, and regular maintenance. Prospective buyers should consult independent reviews, ask for onsite demonstrations where possible, and validate analytics performance in representative lighting and scene conditions.
Conclusion: why this camera is a great choice
The Hikvision DS-2CD2546G3-IZS2UY 4 MP AcuSense varifocal mini-dome is a well-rounded option for organizations seeking reliable, smart, and rugged surveillance without the premium cost of ultra-high-resolution systems. It combines flexible motorised optics, advanced low-light imaging, and embedded deep-learning analytics to reduce false alarms and capture usable evidence across a wide range of indoor and outdoor environments.
For contractors, property managers and business owners who need a balance of image quality, analytics accuracy and environmental durability, this camera delivers a sensible blend of features. When deployed as part of a well-designed system with proper installation, power protection and integration into a recording platform, it can significantly improve situational awareness while lowering the time and cost associated with false alerts.
Before purchasing, verify compatibility with your recorder or VMS, review the datasheet for microSD and environmental ratings, and ensure installation follows local electrical and privacy regulations. With the right planning, the DS-2CD2546G3-IZS2UY is a versatile and effective component for modern surveillance systems.
