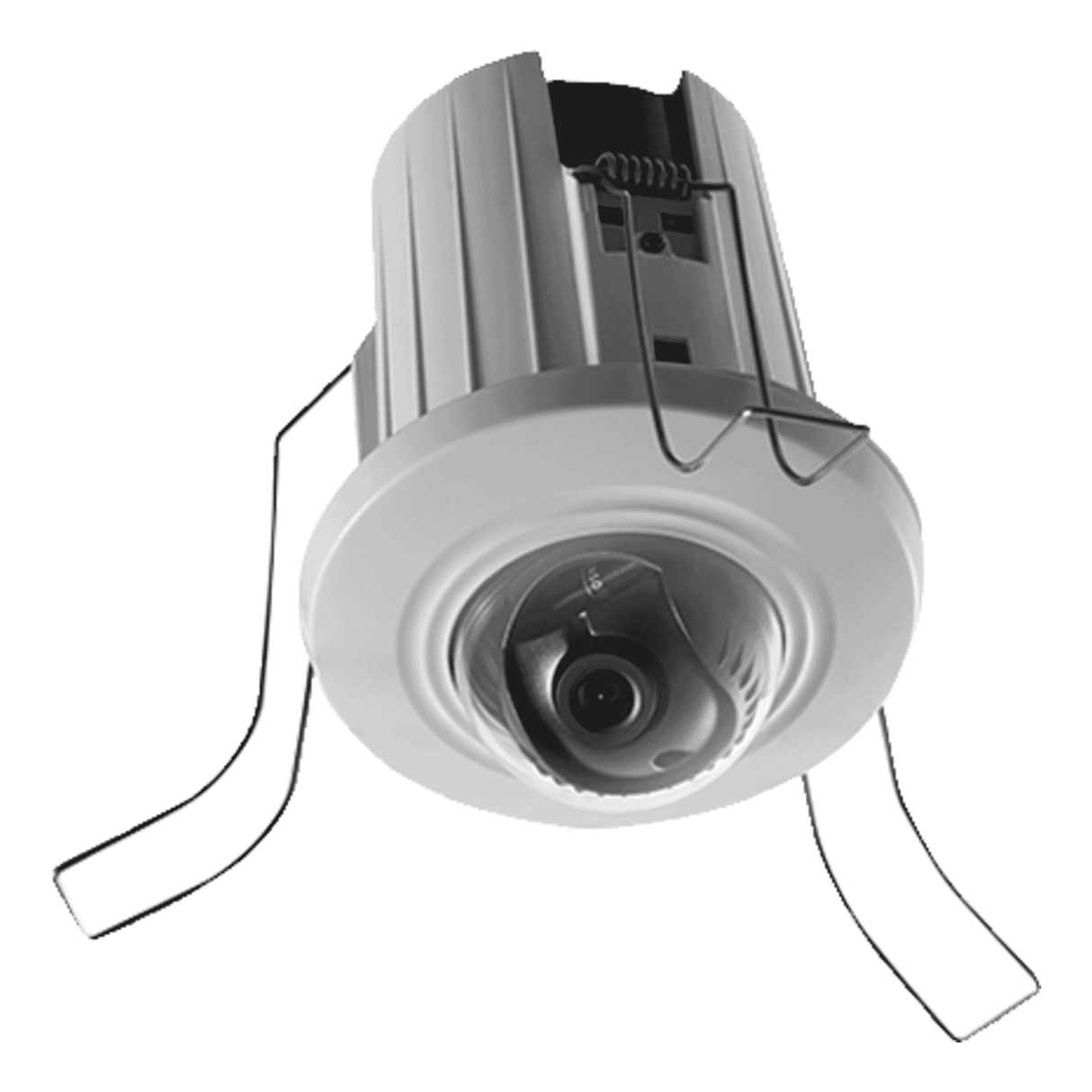

Hikvision DS-2CD2E43G2-U(2.8MM) 4MP AcuSense In-Ceiling Mini Dome Camera

Introduction: Meet the Hikvision DS-2CD2E43G2-U (2.8MM)

The Hikvision DS-2CD2E43G2-U is a compact 4 MP AcuSense in‑ceiling mini dome IP camera designed for reliable indoor surveillance. Built for discreet ceiling mounting, it combines a 2688 × 1520 sensor, AcuSense deep‑learning analytics for human and vehicle classification, on‑device perimeter protection, PoE convenience and local storage options.

Key Features at a Glance

• 4 MP resolution(2688 × 1520 at up to 30 fps) for clear image detail suitable for identification and evidence capture.
• AcuSense analyticswith human/vehicle classification and perimeter protection (line crossing and intrusion) to reduce nuisance alarms.
• Wide field of viewfrom a 2.8 mm fixed lens (103° horizontal) for broad coverage from a ceiling mount.
• 120 dB WDR and 3D DNRfor balanced images in scenes with mixed lighting and reduced noise in low‑light conditions.
• Flexible power and storage: PoE (802.3af) or 12 VDC, with onboard microSD support up to 256 GB and NAS/ANR compatibility.
• Built‑in microphoneand ONVIF Profile S/G for easy integration with third‑party recorders and VMS.

Detailed Specifications and Benefits

The camera uses a 1/3" progressive scan CMOS sensor producing 4 MP (2688 × 1520) video at up to 30 fps. This resolution strikes a balance between image detail and manageable bandwidth/storage requirements, making it suitable for most indoor security needs where facial features and object details must be captured without the high cost associated with 4K systems.

The fixed 2.8 mm lens with an F1.6 aperture delivers a horizontal field of view of approximately 103°, vertical 55° and diagonal 122°. From an in‑ceiling position this lens covers a wide area—ideal for retail aisles, open office areas or corridors—without the distortion and bandwidth demands of ultra‑wide or fisheye designs. The lens supports tilt adjustment (0°–75°) to fine tune the scene when mounted in varied ceiling configurations.

Compression options include H.265, H.265+ and H.264, allowing you to optimize storage and network load without sacrificing image quality. The camera’s 120 dB wide dynamic range (WDR) helps balance bright windows and darker interiors, while 3D digital noise reduction (3D DNR) keeps low‑light footage clean. Additional exposure controls include BLC/HLC for managing backlight and highlight conditions.

AcuSense deep‑learning analytics is a standout benefit. Human and vehicle classification reduces false positives caused by moving vegetation, small animals or lighting changes. Perimeter protection features—line crossing detection and intrusion zones—can be configured on the device to trigger alerts only for relevant events, saving time for security staff and increasing the effectiveness of incident response.

A built‑in microphone provides basic audio monitoring and can aid incident verification when combined with video. Local storage is supported via a microSD card (up to 256 GB), providing on‑camera recording or fallback storage if network outages occur. For larger deployments, NAS (NFS/SMB) and ANR are supported. Network compatibility includes RJ45 10/100 Mbps Ethernet and ONVIF Profile S/G for third‑party VMS integration.

Power options include PoE (802.3af) and 12 VDC input, making installation straightforward—especially when using PoE switches that carry power and data over a single cable. Power consumption is low (~3.2–4.2 W typical). The camera is compact and lightweight (~155 g), and designed for indoor operating temperatures down to −10 °C. For permanent mains work, follow local electrical regulations and engage a qualified installer.

Use Cases and Ideal Scenarios

The DS-2CD2E43G2-U is designed for indoor applications that require discreet, ceiling‑mounted cameras with smart analytics. Typical deployments include:

• Retail stores:Monitor aisles, checkout areas and entrances. AcuSense helps reduce false alarms from carts or product movement while highlighting human events that matter.
• Office buildings:Oversee lobbies, open offices and meeting rooms. The compact in‑ceiling form keeps the camera unobtrusive while covering broad areas.
• Corridors and stairwells:Provide continuous coverage with a single camera thanks to the wide field of view and tilt adjustability.
• Education and healthcare facilities:Monitor public indoor spaces where privacy and low‑profile installation are priorities; audio capture can add context for incidents when appropriate permissions are in place.
• Contractor and SMB installations:The camera’s PoE support and ONVIF compatibility make it attractive for integrators and experienced DIY installers seeking a reliable, budget‑friendly option.

Comparisons with Similar Products

At its price point, the Hikvision 4 MP AcuSense mini dome competes with other compact in‑ceiling and mini dome cameras from manufacturers like Dahua, Axis and several white‑label brands. Key comparison points include:

• Analytics:AcuSense’s human/vehicle classification is a differentiator. While many competitors offer motion detection and basic analytics, the deep‑learning classification reduces false positives and is often available only on higher‑end models from other vendors.
• Price vs. performance:Some competitors offer similar resolution but may lack the same level of onboard analytics or require higher cost add‑ons for similar functionality.
• Integration:ONVIF support ensures the camera can work with most third‑party recorders and VMS solutions. Axis cameras are known for exceptional integration and feature polish, while Dahua often matches Hikvision on features at comparable prices—choice may come down to specific analytics, software ecosystem and integrator preference.
• Form factor and installation:The in‑ceiling mini dome design is common; differences lie in lens options, mounting flexibility and tilt range. The DS-2CD2E43G2-U’s tilt adjust and 103° HFOV make it versatile for many ceiling heights and room sizes.

Conclusion: Why This Camera Is a Strong Choice

The Hikvision DS-2CD2E43G2-U(2.8MM) offers a compelling mix of image quality, intelligent analytics and installation flexibility at a budget‑friendly price. Its 4 MP sensor provides clear coverage, while AcuSense human/vehicle classification and perimeter protection reduce false alarms and improve operational efficiency. PoE support, onboard microSD recording and ONVIF compatibility make it simple to deploy in small to medium systems and integrate with existing recorders and software.

For retailers, offices and indoor public spaces seeking an unobtrusive ceiling camera with smart detection features, this mini dome is a practical and cost‑effective option. As with any security purchase, evaluate sample footage, confirm interoperability with your VMS, and follow local regulations for audio and CCTV use to ensure the system meets both technical and legal requirements.

• Model: DS-2CD2E43G2-U(2.8MM)
• Resolution: 4 MP (2688 × 1520) at 30 fps
• Lens: 2.8 mm, F1.6 (103° HFOV)
• Analytics: AcuSense human/vehicle classification; line crossing & intrusion
• Power: PoE 802.3af or 12 VDC; microSD up to 256 GB; ONVIF Profile S/G

Overall, the DS-2CD2E43G2-U is an effective, feature-rich choice for many indoor surveillance needs where intelligent detection and discreet ceiling mounting are priorities.
