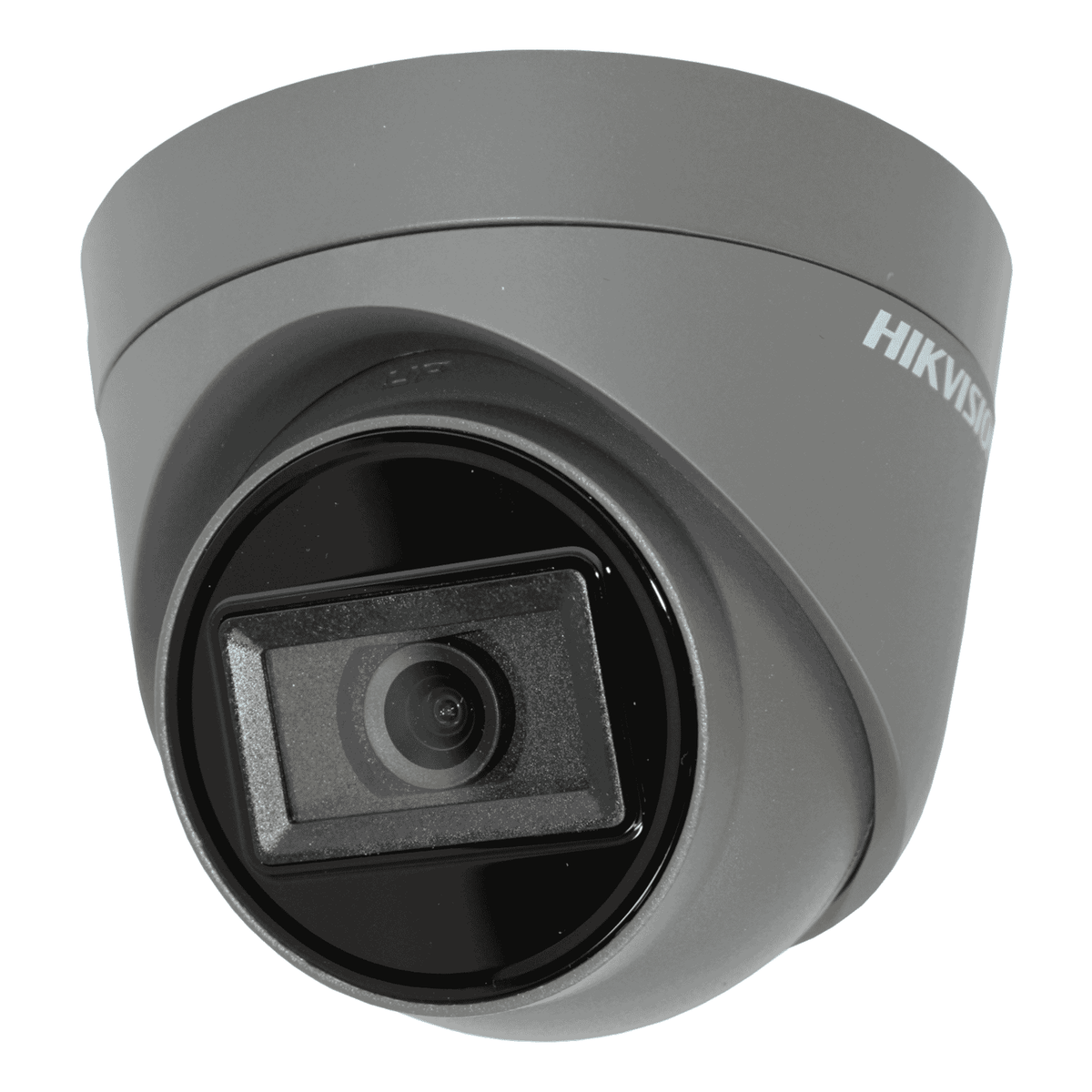

Hikvision DS-2CE78U1T-IT3F 8.29MP (4K) Turret Camera, 2.8mm, Smart EXIR 60m, IP67

Introduction to the Hikvision DS-2CE78U1T-IT3F and its key features

TheHikvision DS-2CE78U1T-IT3Fis an 8.29 MP (commonly marketed as 8MP/4K) turret-style analogue camera built for outdoor HD‑TVI and hybrid CCTV systems. Designed to bring high-resolution detail to coax-based installations, it combines a progressive CMOS sensor, a wide-angle 2.8 mm lens, and Smart EXIR night illumination that reaches up to 60 metres. With switchable video outputs (TVI/AHD/CVI/CVBS) the camera offers compatibility across a wide range of recorders and retrofit scenarios, making it a versatile option for upgrades and new analogue deployments.

Detailed description of specifications and benefits

This camera’s specification sheet focuses on providing real-world performance for outdoor surveillance. Below are the core technical points and the benefits they translate into:

• Image sensor:8.29 MP progressive‑scan CMOS. Benefit: higher pixel count and progressive scan enable clearer stills and smoother motion capture compared with interlaced sensors, improving identification of faces and licence plates at distance.
• Maximum resolution:3840 × 2160 (4K). Benefit: true 4K detail is useful for wide scenes and areas where post-event zooming and forensic checks are needed without losing clarity.

• Lens:2.8 mm fixed focal length. Benefit: wide-angle coverage (~102.2° horizontal FOV) is ideal for monitoring entrances, corridors, car parks and building perimeters where a broad scene is required without multiple cameras.

• IR illumination:Smart EXIR LEDs with effective range up to 60 m. Benefit: improved low-light performance and even IR light distribution across the scene, reducing hotspots and delivering usable detail after dark for longer ranges than typical low-cost cameras.
• Day/night operation:Mechanical IR cut filter ensures accurate daytime colours and reliable monochrome night images when lighting is insufficient.

• Switchable outputs:TVI / AHD / CVI / CVBS. Benefit: flexible compatibility with legacy and contemporary DVRs and hybrid recorders, simplifying upgrades and reducing the need to replace cabling or recorders.
• Frame rate:Up to 8MP at roughly 12.5–15 fps depending on mode. Benefit: still provides smooth-enough motion for many surveillance scenarios; higher detail is prioritised over ultra-high frame rates common in IP cameras.

• Image features:True day/night, IR cut filter, digital wide dynamic range (DWDR), 2D digital noise reduction (DNR), HLC/BLC. Benefit: improved image clarity in scenes with bright backgrounds or variable lighting, and reduced noise in low-light scenes.

• Power:12 VDC, max approx. 5.3 W. Benefit: low power draw simplifies power requirements and allows use with common CCTV power supplies.
• Ingress protection:IP67-rated housing. Benefit: weatherproof for outdoor use—resistant to dust and heavy rain, suitable for exposed locations and temperate extremes.
• Operating range:−40 °C to 60 °C and ≤ 90% non-condensing humidity. Benefit: reliable operation across harsh climates and seasons.
• Dimensions & weight:Ø 109.82 × 91.03 mm, ≈ 320 g. Benefit: compact turret form-factor that is unobtrusive and simple to mount under eaves, on walls or poles.

Use cases and scenarios where this camera excels

The DS-2CE78U1T-IT3F is best suited to scenarios where wide coverage, high-resolution detail and long-range night vision are important, and where coax or hybrid recorders are preferred. Typical applications include:

• Retail and small commercial premises:A single 4K turret can capture wide shopfronts, car parks and surrounding perimeters, reducing blind spots and the number of cameras required to cover the same area.
• Residential and gated communities:Use for entrances, driveways and perimeter walls where the wide field of view and high resolution help identify people and vehicles entering or leaving properties.
• Parking lots and storage yards:Long-range Smart EXIR illumination up to 60 m helps capture licence plates and activity in low-light conditions, making it suitable for overnight monitoring of larger outdoor spaces.
• Legacy system upgrades:Installers replacing older analogue cameras can use this model with existing coax infrastructure and a compatible hybrid DVR—beneficial for staged technology rollouts where total system replacement is not yet feasible.
• Perimeter security for SMEs:For small and medium enterprises that need reliable 24/7 surveillance without migrating immediately to IP cameras and PoE networks, this turret provides a cost-effective high-resolution option.

Comparisons with similar products on the market

When comparing the DS-2CE78U1T-IT3F to alternatives, consider three common trade-offs: resolution vs. frame rate, analogue compatibility vs. IP features, and night-vision range vs. price.

• VS entry-level analogue cameras:Many basic analogue turrets offer 2–5 MP resolution and shorter IR ranges. The Hikvision’s 8.29 MP sensor and 60 m Smart EXIR give superior long-range detail and low-light performance, making it a better choice where forensic image quality matters.
• VS IP 4K cameras:IP cameras often provide higher frame rates, onboard analytics and PoE power delivery, but they require network infrastructure and can be costlier. The DS-2CE78U1T-IT3F is a strong choice where existing coax cabling is preferred and where high resolution is needed without the network upgrade.
• VS other manufacturers’ HD‑TVI 4K models:Competing 4K TVI cameras may vary in build quality, IR implementation and feature sets.

Conclusion — why choose the DS-2CE78U1T-IT3F?

The Hikvision DS-2CE78U1T-IT3F stands out as a pragmatic, cost-effective 4K turret camera for analogue and hybrid CCTV systems. Its strengths are clear: high-resolution 8.29 MP imaging for detailed forensic capture, a wide 2.8 mm field of view for broad coverage, Smart EXIR night illumination to 60 m for reliable low-light surveillance, and switchable TVI/AHD/CVI/CVBS outputs that simplify upgrades and compatibility.

For organisations and homeowners who need to enhance existing coax infrastructure with modern 4K capability—without moving immediately to full IP networks—the DS-2CE78U1T-IT3F provides an excellent balance of image quality, environmental robustness (IP67) and installer-friendly features.
