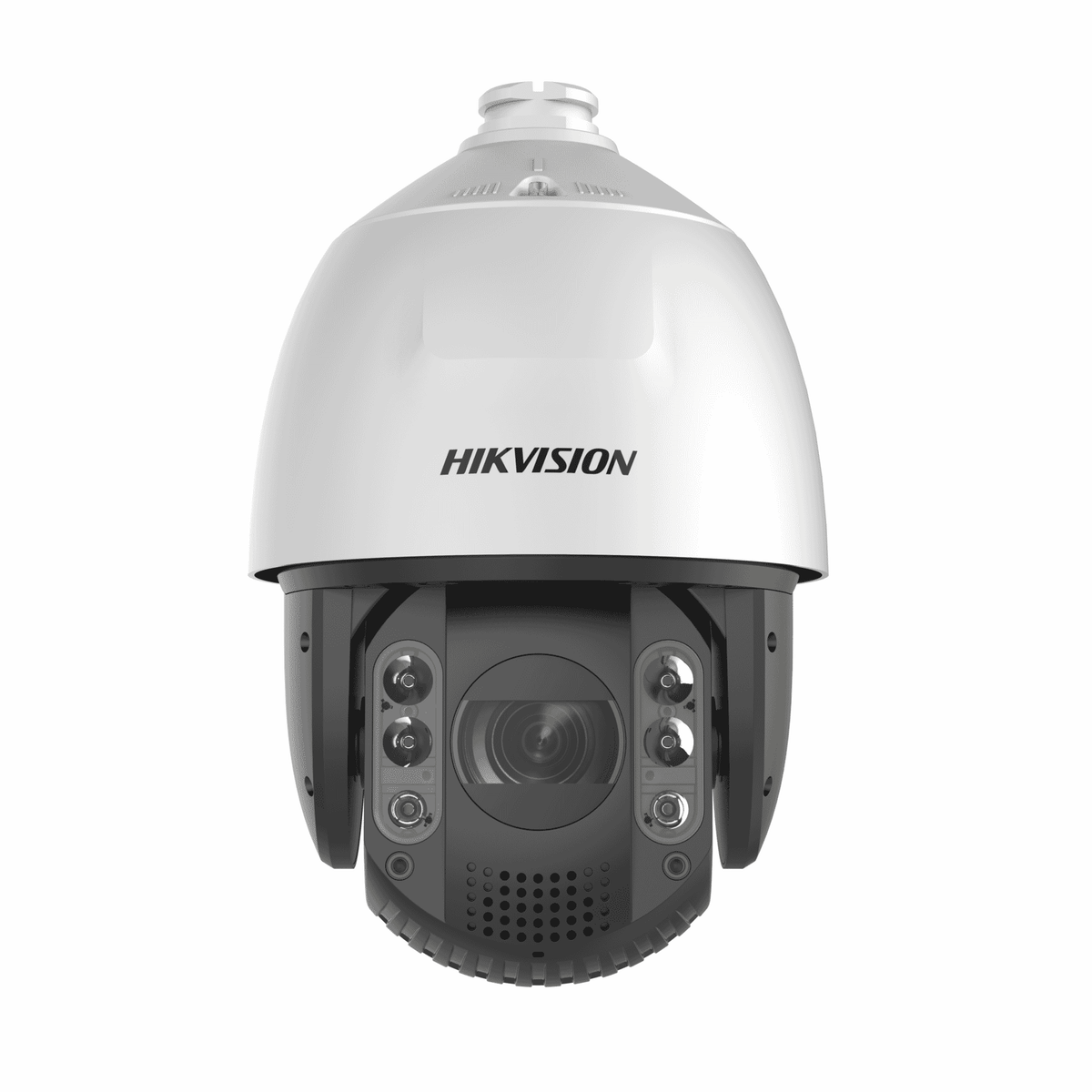

Hikvision DS-2DE7A425IWG1-E 4 MP PTZ Speed-Dome, 25× Optical, DarkFighter, AcuSense

Free Delivery DarkFighter
4 MP PTZ Speed‑Dome, 25× Optical
About this product

The DS-2DE7A425IWG1-E is a 4 MP PTZ camera with 25× optical zoom and 200 m of infrared — the longest reach in this family short of the 400 m DF8 — with a built-in speaker and strobe so it can warn an intruder off rather than just record them.

  • 4 MP (2560 × 1440) at up to 50 fps (50 Hz) or 60 fps (60 Hz) under supported settings.
  • 25× optical zoom (4.8–120 mm) plus 16× digital, with self-learning focus holding sharpness through the sweep.
  • Infrared to 200 m with DarkFighter and AI-ISP: colour at 0.005 lux, monochrome at 0.001 lux.
  • Audio-visual deterrent — white flashing light and audible warning on event, with a built-in speaker effective to 30 m and dual array microphones picking up to 8 m.
  • IP67 and IK10 with TVS 6000 V protection, −30 °C to 65 °C; 36 VDC (max 42 W) or Hi-PoE, DS-1602ZJ bracket supplied.
FAST delivery by Order within
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Image sensor
1/2.8" progressive scan CMOS
Max. resolution
2560 × 1440
Min. illumination
Colour 0.005 lux @ F1.6 (AGC on); B/W 0.001 lux @ F1.6; 0 lux with IR
Shutter speed
1/1 s to 1/30,000 s
Slow shutter
Yes
Day & night
IR cut filter
Zoom
25× optical, 16× digital
Focal length
4.8 mm to 120 mm
Aperture
Max. F1.6
Focus
Auto, semi-auto, manual
Zoom speed
Approx. 3.5 s
Field of view
Horizontal 55°–2.65°; vertical 33°–1.5°; diagonal 61.5°–3.03°
Supplement light type
IR
Supplement light range
Up to 200 m
Pan range
360°
Tilt range
−15° to 90° (auto flip)
Pan speed
0.1°–160°/s; preset 240°/s
Tilt speed
0.1°–120°/s; preset 200°/s
Presets
300
Preset freezing
Yes
Patrol scan
8 patrols, up to 32 presets each
Pattern scan
4 pattern scans
3D positioning
Yes
Power-off memory
Yes
Main stream
50 Hz 50 fps / 60 Hz 60 fps at 2560 × 1440 under supported settings
Compression
H.265+/H.265/H.264+/H.264
Video bit rate
32 kbps to 16384 kbps
Region of interest
8 fixed regions per stream
Wide dynamic range
120 dB
Defog
Digital defog
Image stabilisation
EIS
Enhancement
BLC, HLC, 3D DNR
Signal-to-noise ratio
> 52 dB
Privacy mask
24 programmable polygon masks
Panoramic view
360° real-scene stitched panoramic image
Face capture
Up to 5 faces simultaneously
Regional people counting
Up to 8 detection regions; density, number-exception and waiting-time modes
Smart tracking
Manual and auto-tracking
Smart events
Line crossing, intrusion, region entrance, region exiting
Built-in speaker
1 speaker, effective to approx. 30 m
Built-in microphone
2 arrayed microphones, up to 8 m
Audio
1 line in, 1 line out
Alarm
2 inputs, 1 output
Deterrent linkage
White light flashing and audible warning on event
Ethernet
1 × RJ45 10M/100M self-adaptive
On-board storage
microSD/SDHC/SDXC up to 512 GB
Network storage
NAS (NFS, SMB/CIFS) with ANR
API
ONVIF Profile S/G/T, ISAPI, SDK, ISUP
Simultaneous live view
Up to 20 channels
Power input
36 VDC ±25%, max. 42 W
Power over Ethernet
Hi-PoE
Dimensions
Ø 220 mm × 363.3 mm
Weight
Approx. 5 kg
Material
ADC12
Operating conditions
−30 °C to 65 °C, humidity ≤ 90% non-condensing
Protection
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
Surge protection
TVS 6000 V lightning, surge and voltage transient protection
Demist
Yes
DORI detect (tele)
2402.4 m
DORI observe (tele)
953.3 m
DORI recognise (tele)
480.5 m
DORI identify (tele)
240.2 m
Included bracket
DS-1602ZJ wall mount
EMC approvals
CE-EMC, RCM, IC, KC
Safety approvals
UL 62368-1, CB, CE-LVD, BIS, LOA
Environmental approvals
CE-RoHS, WEEE, REACH

Specifications

Image sensor 1/2.8" progressive scan CMOS
Max. resolution 2560 × 1440
Min. illumination Colour 0.005 lux @ F1.6 (AGC on); B/W 0.001 lux @ F1.6; 0 lux with IR
Shutter speed 1/1 s to 1/30,000 s
Slow shutter Yes
Day & night IR cut filter
Zoom 25× optical, 16× digital
Focal length 4.8 mm to 120 mm
Aperture Max. F1.6
Focus Auto, semi-auto, manual
Zoom speed Approx. 3.5 s
Field of view Horizontal 55°–2.65°; vertical 33°–1.5°; diagonal 61.5°–3.03°
Supplement light type IR
Supplement light range Up to 200 m
Pan range 360°
Tilt range −15° to 90° (auto flip)
Pan speed 0.1°–160°/s; preset 240°/s
Tilt speed 0.1°–120°/s; preset 200°/s
Presets 300
Preset freezing Yes
Patrol scan 8 patrols, up to 32 presets each
Pattern scan 4 pattern scans
3D positioning Yes
Power-off memory Yes
Main stream 50 Hz 50 fps / 60 Hz 60 fps at 2560 × 1440 under supported settings
Compression H.265+/H.265/H.264+/H.264
Video bit rate 32 kbps to 16384 kbps
Region of interest 8 fixed regions per stream
Wide dynamic range 120 dB
Defog Digital defog
Image stabilisation EIS
Enhancement BLC, HLC, 3D DNR
Signal-to-noise ratio > 52 dB
Privacy mask 24 programmable polygon masks
Panoramic view 360° real-scene stitched panoramic image
Face capture Up to 5 faces simultaneously
Regional people counting Up to 8 detection regions; density, number-exception and waiting-time modes
Smart tracking Manual and auto-tracking
Smart events Line crossing, intrusion, region entrance, region exiting
Built-in speaker 1 speaker, effective to approx. 30 m
Built-in microphone 2 arrayed microphones, up to 8 m
Audio 1 line in, 1 line out
Alarm 2 inputs, 1 output
Deterrent linkage White light flashing and audible warning on event
Ethernet 1 × RJ45 10M/100M self-adaptive
On-board storage microSD/SDHC/SDXC up to 512 GB
Network storage NAS (NFS, SMB/CIFS) with ANR
API ONVIF Profile S/G/T, ISAPI, SDK, ISUP
Simultaneous live view Up to 20 channels
Power input 36 VDC ±25%, max. 42 W
Power over Ethernet Hi-PoE
Dimensions Ø 220 mm × 363.3 mm
Weight Approx. 5 kg
Material ADC12
Operating conditions −30 °C to 65 °C, humidity ≤ 90% non-condensing
Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
Surge protection TVS 6000 V lightning, surge and voltage transient protection
Demist Yes
DORI detect (tele) 2402.4 m
DORI observe (tele) 953.3 m
DORI recognise (tele) 480.5 m
DORI identify (tele) 240.2 m
Included bracket DS-1602ZJ wall mount
EMC approvals CE-EMC, RCM, IC, KC
Safety approvals UL 62368-1, CB, CE-LVD, BIS, LOA
Environmental approvals CE-RoHS, WEEE, REACH

4 MP PTZ Speed‑Dome, 25× Optical features

Hikvision DS-2DE7A425IWG1-E 4 MP PTZ camera with 25× zoom, 200 m infrared and audible deterrent

Hikvision DS-2DE7A425IWG1-E 4 MP PTZ Speed-Dome, 25× Optical, DarkFighter, AcuSense

Who this is for

For the installer. 42 W on Hi-PoE, so this is not a PoE+ camera — check the injector or switch port before you quote it. At 5 kg and Ø 220 × 363 mm it is the heaviest of the network domes in this group and wants a substantial bracket and a solid fixing. The speaker and strobe are driven by event linkage in the camera itself, so a deterrent response works with no head-end logic at all — worth configuring even where there is a manned control room, because it fires instantly.

For the end user. Two hundred metres of infrared is the headline: in full darkness this sees roughly twice as far as the 100 m cameras and a third further than the 150 m. The other half of it is that this camera talks back. When it detects someone crossing a line at night it can flash a white strobe and sound a warning on the spot. Most opportunist intruders leave at that point, which is a materially better outcome than good footage of a theft. People counting is included too, which is normally a retail feature rather than a security one.

Buying this in the UK

Two points specific to this model. An audible warning device on a boundary can attract a noise complaint from a local authority if it is triggering repeatedly at night — tune the analytics so it fires on classified targets, not on movement. And under UK GDPR, cameras with microphones are treated more strictly than video alone: this one has two, so recording audio needs a separate justification and is often best disabled. WME supplies the security trade from Birmingham and has done since 1975.

Common questions

Does it need Hi-PoE? Yes — 42 W maximum, above what 802.3at PoE+ delivers. Either Hi-PoE or a 36 VDC supply.

How is this different from the 150 m model? Longer infrared (200 m against 150 m), faster pan and tilt, IK10 vandal rating, and the speaker and strobe deterrent, which the 150 m model does not have.

Can it warn people off by itself? Yes. Event linkage triggers a white flashing light and an audible warning from the built-in speaker, effective to about 30 m, without any operator input.

What is people counting for? It counts people in up to 8 defined regions and can alarm on density, on a number threshold, or on how long someone has been waiting — used for occupancy and queue management as much as for security.

Should I record the audio? Usually not. Two microphones are fitted, but under UK GDPR audio recording is harder to justify than video and the ICO treats it as more intrusive. Most installs leave it off unless there is a specific documented reason.
