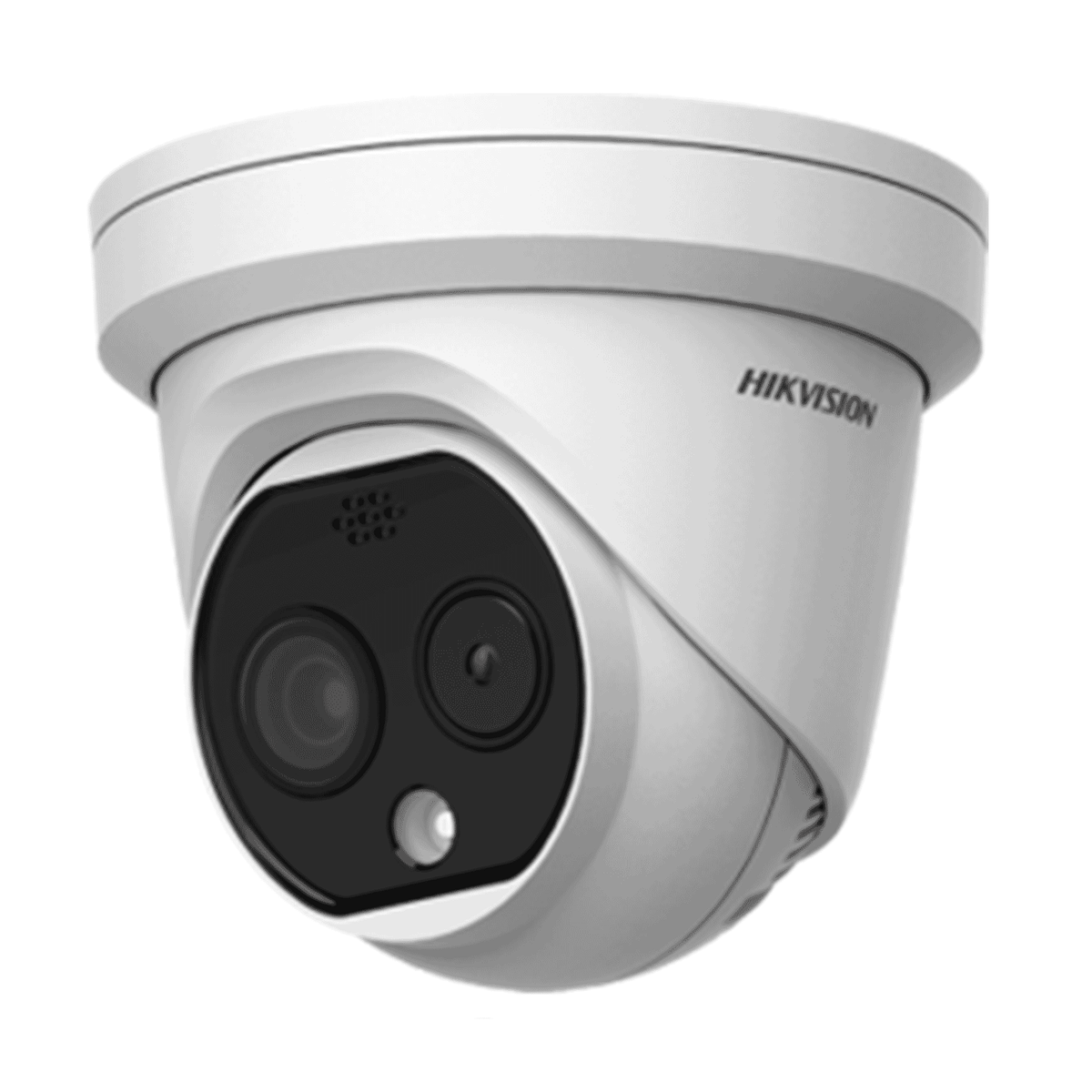

Hikvision DS-2TD1217-2/QA HeatPro Bi-spectrum Thermal + 4MP Turret Camera 1.8mm 160×120/4MP

Introduction to the Hikvision DS-2TD1217-2/QA HeatPro

Hikvision DS-2TD1217-2/QA HeatProis a bi-spectrum turret camera that pairs a 160160 thermal sensor with a 4 MP wide-angle optical channel to deliver both thermal detection and situational visual context. Designed for outdoor perimeter and industrial monitoring, the camera combines thermal imaging, deep-learning analytics and temperature-exception alarms in a rugged IP66-rated housing. Its flexible power and network options (12 VDC or PoE 802.3af) and wide operating temperature range (-40 C to +65 C) make it suitable for challenging environments where visibility or lighting is poor.

Key features at a glance

• Bi-spectrum imaging:160 thermal VOx sensor with a 4 MP optical channel for image fusion and picture-in-picture.
• Advanced analytics:deep-learning perimeter protection (line crossing, intrusion, region entrance/exit) with human/vehicle filtering and temperature-exception alarms (points/areas/line).
• Rugged build:IP66 ingress protection, TVS 6000V surge protection and extended operating temperature.
• Flexible deployment:PoE-enabled, H.265/H.264 compression, on-board SD storage (region dependent), audio I/O and alarm connections.
• Fire and temperature monitoring:dynamic fire detection algorithm and support for temperature anomaly alarms across points, areas and lines.

Detailed specifications and benefits

The camera uses a VOx uncooled focal plane array with a 160160 thermal resolution and a 17 pixel pitch. With a thermal field of view of approximately 90 90 and an IFOV of 9.44 mrad, the thermal channel is suited for short-to-medium range detection. The NETD is below 40 mK at typical conditions, which supports reliable thermal contrast for detecting people, vehicles and temperature anomalies even in low-visibility conditions.

The optical channel is a 1/2.7" progressive-scan CMOS that captures roughly 4 MP (2688 1520) at a wide 2 mm focal length (approximate field of view ~119 119.3 119.3 ). Low-light sensitivity is strong (color 0.0176 lux; B/W 0.0035 lux and 0 lux with IR), and an IR illuminator extends visibility up to about 15 m depending on region and model. This optical channel is ideal for capturing context, identifying vehicle plates at short range, and providing visual verification for thermal alerts.

One of the camera's strongest selling points is its analytics suite. Bi-spectrum features include image fusion, picture-in-picture and target coloration so operators can combine thermal contrast with optical detail. The integrated deep-learning video content analysis supports perimeter protection rules such as line crossing and intrusion and can apply human/vehicle filtering to reduce false alarms from animals or environmental motion.

For temperature and fire monitoring, the camera supports up to 10 temperature points, 10 areas and 1 line, with a measurement range from -20 C to 150 C and a stated accuracy of ±8 C. Dynamic fire detection algorithms add another layer of responsiveness for early-warning scenarios in yards, storage areas or plant environments. Alarm outputs include temperature exceptions, dynamic fire triggers and up to six audio alarms plus white-flash visual alerts.

The HeatPro supports H.265/H.264/MJPEG compression and multiple streaming to balance bandwidth and storage. Network compatibilities include IPv4/IPv6, RTSP and ONVIF standards. Interfaces include RJ45 10/100, optional SD storage (region dependent), RS-485, audio in/out and alarm I/O. Power flexibility comes from 12 VDC or PoE (802.3af, Class 3). Mechanically the camera measures approximately 138.3 and weighs about 940 g. It is IP66-rated and includes TVS 6000V lightning protection.

Use cases and scenarios where this camera excels

• Perimeter detection and access gates:The combined thermal and optical channels let security teams detect intruders under poor lighting and verify events visually. Deep-learning VCA reduces nuisance alarms and improves response efficiency.
• Industrial and plant monitoring:Temperature-exception alarms, multi-point temperature measurement and dynamic fire detection provide early warnings for equipment overheating, vehicle fires or abnormal thermal signatures across yards and storage areas.
• Logistics yards and container stacks:Wide thermal FOV and a 4 MP optical channel help monitor large open areas for people and vehicle activity, even in fog, dust or darkness where traditional CCTV struggles.
• Supplements to CCTV suites:Use the HeatPro alongside conventional cameras to add thermal-based detection that triggers visual verification recordings only when necessary, saving bandwidth and storage while improving detection reliability.
• Remote sites and harsh climates:With operating temperatures down to -40 C and PoE support, the camera suits remote installations where mains power or heating is impractical.

How it compares with similar products

The HeatPro DS-2TD1217-2/QA targets the sweet spot between cost and capability within Hikvision's lineup and against competitors. Compared with standard optical-only 4 MP turret cameras, it adds thermal detection and temperature analytics that dramatically improve performance in low-visibility and night-time conditions.

Against competitor bi-spectrum units from other major brands, the HeatPro's strengths are its deep-learning VCA, integrated temperature features and rugged build for outdoor deployments. Higher-resolution thermal models will outperform it for long-range identification and detailed temperature mapping, while cheaper thermal modules or optical-only cameras will lack reliable temperature alarms and the fusion options offered here. The choice ultimately depends on required detection range, budget and whether temperature/fire analytics are needed as part of the security or safety system.

The camera is shown with a 10-year warranty in the product data provided; confirm the warranty terms, exclusions and regional support channels at point of sale.

Conclusion: why choose the Hikvision HeatPro DS-2TD1217-2/QA

The Hikvision DS-2TD1217-2/QA HeatPro sits at the intersection of affordability, capability and ruggedness. Its bi-spectrum design combines thermal detection with a 4 MP wide-angle optical channel to provide reliable intrusion detection, temperature monitoring and visual context in one compact turret. For sites where lighting is poor, visibility is frequently degraded, or temperature/fire detection is required in addition to perimeter analytics, this camera offers a practical and cost-effective solution. While higher-end thermal cameras remain necessary for long-range identification and detailed thermography, the HeatPro is an excellent choice for wide-area situational awareness, industrial safety monitoring and perimeter protection where balance between performance and budget is paramount.
