Introduction to the Hikvision DS-3E0508-O and its key features

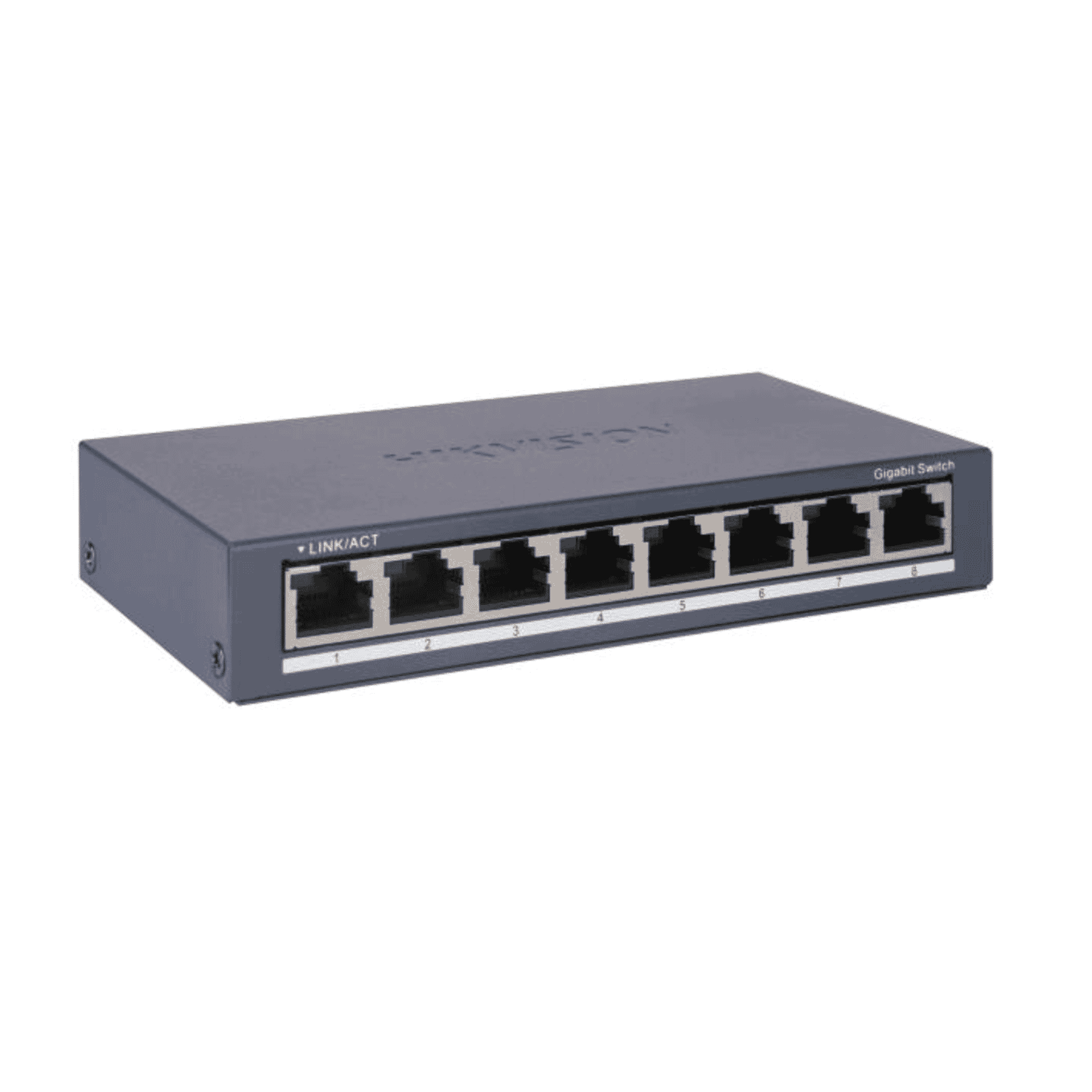

Hikvision DS-3E0508-O — compact 8‑port Gigabit unmanaged switch
The Hikvision DS-3E0508-O is an 8‑port Gigabit unmanaged switch designed for simple, reliable network aggregation in small office, home and surveillance installations. With eight 10/100/1000 Mbps RJ45 ports, a metal fan‑free enclosure, and built‑in surge protection, this unit targets users who need straightforward, wire‑speed connectivity without the complexity of managed switches. It is part of Hikvision's Pro Series and offers a compact footprint, low power consumption and plug‑and‑play operation — making it a practical choice for CCTV/NVR deployments, edge aggregation and basic LAN expansion.
Detailed specifications and benefits
The DS-3E0508-O packs several technical features into a small, durable package. Below are the key specifications and what they mean in practice.
- Ports:8 × 10/100/1000 Mbps RJ45. These full‑Gigabit ports support high‑bandwidth devices like IP cameras, NVRs, workstations and uplinks to other switches without bottlenecking typical local traffic.
- Switching capacity and performance:16 Gbps switching capacity with a packet forwarding rate of about 11.90 Mpps. This store‑and‑forward design provides wire‑speed switching for mixed traffic loads common in surveillance and small LANs.
- MAC address table & buffer:8K MAC address entries and a 4 Mbit internal packet cache. The MAC table size is suitable for modest networks and camera deployments; the internal cache helps smooth bursts of traffic.
- Enclosure and mounting:Metal, fan‑free enclosure with options for desktop or wall mounting. The metal housing improves durability and electromagnetic shielding while the fan‑free design reduces noise and eliminates moving parts that can fail.
- Power & efficiency:Powered by 5 V DC, 0.6 A with very low power consumption (max ≈ 3 W; idle ≈ 1.61 W). This makes the switch energy efficient and simple to power from compact adapters or low‑power distribution systems.
- Protection:6 kV surge/lightning protection built into the unit. For outdoor camera feeds and installations in locations with frequent electrical transients, integrated surge protection can improve resilience and reduce equipment failures.
- Certifications:CE, CB and related EMC/safety markings as listed by Hikvision. This indicates compliance with standard safety and electromagnetic compatibility requirements for many regions.
- Unmanaged operation:Plug‑and‑play, no configuration required. Ideal for users who want simple connectivity without VLANs, QoS tuning or other managed features.
Taken together, these specifications produce a compact switch that is easy to deploy, quiet in operation and focused on providing reliable connectivity where simplicity and resilience matter more than advanced management features.
Use cases and scenarios where the DS-3E0508-O excels
The DS-3E0508-O is particularly well‑suited to a handful of practical deployment scenarios:
- CCTV and NVR aggregation:Many small to medium surveillance installations require several non‑PoE cameras to be connected to an NVR or to a separate PoE midspan. The DS-3E0508-O provides eight gigabit ports that can aggregate multiple camera feeds to an NVR or uplink to a PoE switch without adding complexity.
- Home and small office LAN expansion:For home offices, studios and small businesses needing extra wired ports, this switch offers a reliable, low‑cost way to add gigabit connectivity for PCs, printers, NAS devices and access points.
- Edge aggregation for compact networks:In retail outlets, kiosks, branch offices or compact network closets, the small footprint and wall‑mount option make the unit easy to tuck away while providing dependable wired connectivity.
- Environments requiring surge protection:Sites where outdoor cameras or long cable runs are used can benefit from the integrated 6 kV surge protection, helping to protect downstream devices from transient events.
- Quiet environments:The fan‑free metal enclosure is ideal for noise‑sensitive locations like meeting rooms, front desks or residential installations.
Comparisons with similar products in the market
Eight‑port unmanaged gigabit switches are a common commodity, and several manufacturers offer comparable devices. Here are the main areas where the DS-3E0508-O stands out and where it aligns with competitors.
- Core offering vs. standard 8‑port switches:Many models from well‑known brands offer 8 gigabit ports, metal cases and fan‑free designs. The DS-3E0508-O is competitive on basic performance metrics (16 Gbps switching, gigabit ports) and typically aligns with mainstream entry‑level switches in terms of throughput and simplicity.
- Surge protection advantage:A differentiator for the Hikvision unit is the built‑in 6 kV surge/lightning protection. Not all consumer 8‑port switches include this level of protection, which makes the DS-3E0508-O more attractive for surveillance and installations with longer cable runs or exposure to electrical transients.
- Surveillance ecosystem integration:As part of Hikvision's Pro Series, this switch is positioned for camera/NVR workflows and may integrate more smoothly into surveillance-focused deployments and installations. Competing consumer switches are general purpose and may lack the same focus on camera deployments.
- Price and value:With a suggested price around $24.99, the DS-3E0508-O is priced competitively in the entry‑level segment. Many comparable unmanaged 8‑port metal switches fall in a similar price band, so the added surge protection and Hikvision branding can represent good value for surveillance use cases.
- What it doesn’t offer:This is an unmanaged switch without PoE or advanced layer‑2 features like VLANs, link aggregation or QoS configuration. If you need PoE for cameras or managed features for complex networks, a different model (or an additional PoE injector/midspan) will be required.
Customer feedback and typical user impressions
There are no official customer testimonials included here, but based on the product's design and target use cases, the typical user feedback you can expect includes:
- Positive impressions:Users deploying the switch for CCTV aggregation often note ease of installation, quiet operation and appreciation for the surge protection. Installers who need a small, reliable unmanaged switch frequently highlight its compact metal housing and wall‑mount flexibility.
- Constructive notes:Some users who require Power over Ethernet (PoE) for cameras will find the lack of PoE a limiting factor and may prefer a PoE switch or to use PoE injectors. Others needing managed features for VLAN segmentation or traffic shaping will find this device intentionally spare on features.
- Value perception:Given the competitive price point, buyers looking for a low‑cost, durable Gigabit aggregation switch often consider the DS-3E0508-O to offer good value for surveillance and small network edge roles.
Conclusion: why choose the Hikvision DS-3E0508-O
The Hikvision DS-3E0508-O is an effective, no‑nonsense 8‑port Gigabit unmanaged switch that addresses the needs of CCTV aggregations, small office LANs and compact edge deployments. Its strengths are clear: a metal, fan‑free enclosure for silent and durable operation; low power consumption for energy‑efficient setups; integrated 6 kV surge protection to boost resilience in surveillance installations; and plug‑and‑play simplicity that minimizes setup time.
For buyers who need straightforward gigabit connectivity without the overhead of managed features or PoE, and who value the additional protection and robust build, the DS-3E0508-O represents a practical, cost‑effective choice. Confirm warranty and support terms with your supplier before purchase, and follow Hikvision documentation for firmware and installation guidance to ensure optimal and secure operation.
In short: if your deployment calls for a compact, quiet, durable and affordable 8‑port Gigabit switch — especially in camera/NVR scenarios where surge protection matters — the Hikvision DS-3E0508-O is well worth considering.
