Introduction: What the Hikvision DS-3E1505P-EI Offers

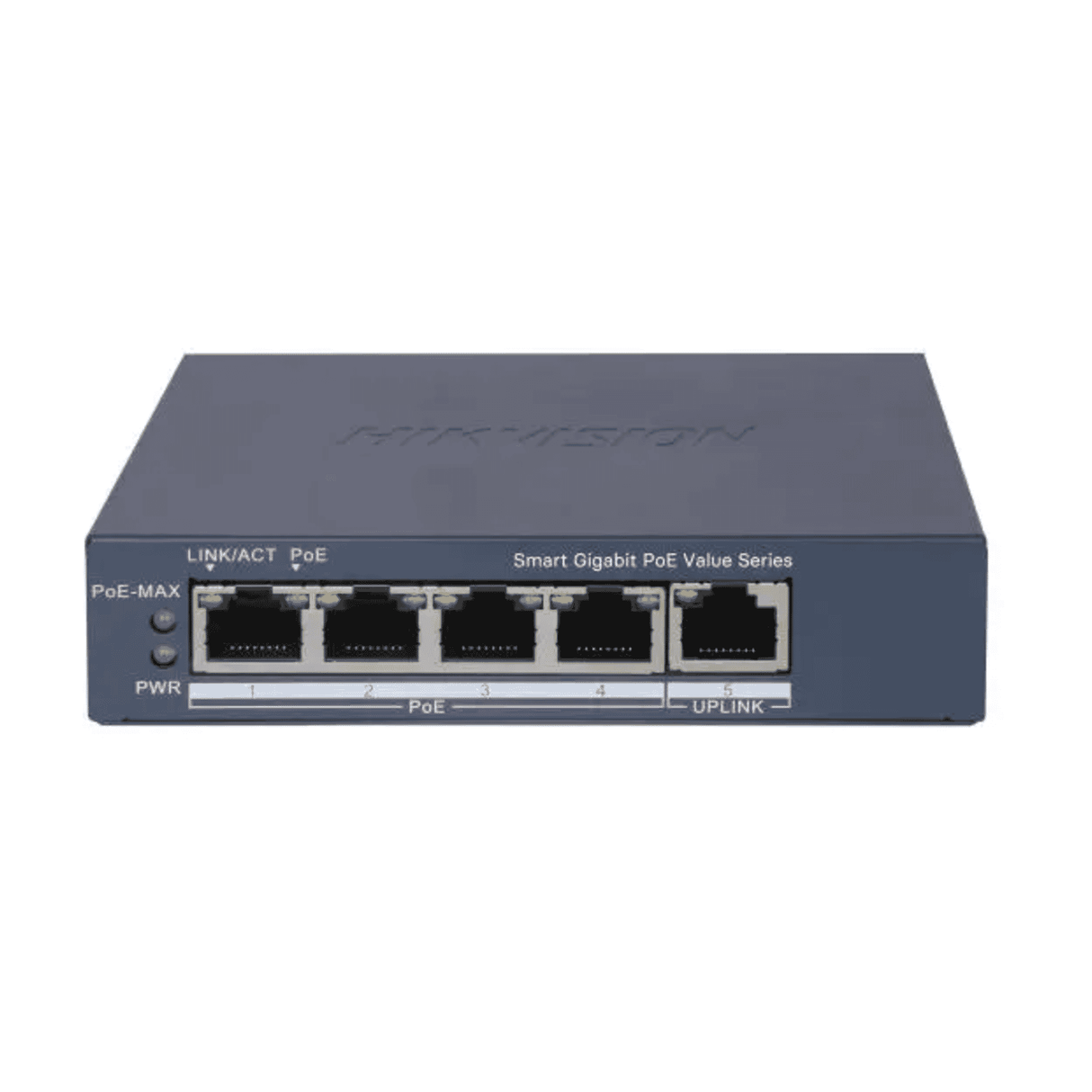

The Hikvision DS-3E1505P-EI is a compact, smart-managed 5-port Gigabit PoE switch tailored for small CCTV/IP camera deployments, SOHO (small office/home office) networks and SMB (small and medium business) installations. With four Gigabit PoE+ ports and a dedicated Gigabit uplink port, it combines power delivery, switching performance and simple management in a pocket-sized metal housing. Key features include IEEE 802.3af/at PoE+ support, web-based management and integration with Hikvision management tools, plus long-range PoE and 6 kV surge protection for more resilient camera runs.
Key Features at a Glance
- 4× Gigabit PoE+ ports(ports 1 64) capable of powering cameras and other PoE devices up to 30 W per port.
- 1× Gigabit uplinkfor easy connection to a router, NVR or core switch.
- Smart management: Web GUI, SNMP, LLDP and integration with Hik-Partner Pro / Hik-Central Pro.
- Network features: 802.1Q VLANs, static link aggregation, port mirroring, loop detection and STP/RSTP support.
- PoE enhancements: PoE Watchdog for auto-reboot of hung devices and a long-range PoE mode that extends reach up to ~300 m on ports 1 64.
- Protection: 6 kV surge protection for safer outdoor camera runs.
Detailed Specifications and Benefits
Understanding the DS-3E1505P-EIs specifications shows why its a strong choice for small networked camera systems and compact PoE clusters.
- Ports: 4 × 10/100/1000 Mbps PoE RJ45 (ports 1 64) and 1 × 10/100/1000 Mbps RJ45 uplink 0 great for full Gigabit throughput from each camera or device.
- Switching capacity: 10 Gbps with a forwarding rate of about 7.44 Mpps, suitable for multi-camera feeds at HD resolutions when traffic is segmented and uplinked appropriately.
- MAC table and buffering: 2K MAC entries and ~1 Mbit packet buffer help maintain stable operation in typical SOHO/SMB scenarios.
- PoE standards: IEEE 802.3af/at (PoE+), supporting up to 30 W per port for modern PTZ and infrared cameras or edge devices.
- Total PoE budget: Model/region variants commonly list either 45 W or 60 W total. This affects how many high-draw devices you can run simultaneously; verify the adaptor rating on your supplied unit before deployment.
- Power adapter: Typically a 54 V DC adapter with current in the 0.92 61.2 A range depending on variant. Total device power consumption depends on PoE load and adapter rating (approx. 50 65 W under load in common scenarios).
- PoE Watchdog: Automatically reboots hung devices (for example, stuck cameras), reducing the need for on-site resets and improving uptime.
- Long-range mode: Allows PoE delivery across longer runs (up to ~300 m) for installations where cameras are distant from the switch.
- Web GUI provides an accessible interface for setup and routine configuration.
- SNMP and LLDP support allow integration into monitoring systems and improved device discovery on managed networks.
- VLAN (802.1Q), static link aggregation and port mirroring enable segmentation, redundancy and troubleshooting useful in multi-camera or mixed device deployments.
- Compact dimensions (121.1 × 27.6 × 83.1 mm) and low weight make it suitable for desk- or wall-mounting in tight spaces.
- Operating range: 0 °C to 40 °C, with wide storage tolerances and humidity tolerance of 5 695% (no condensation).
- 6 kV surge protection reduces the risk of damage from lightning-induced surges on camera runs; good practice is still to use additional external surge protection and proper grounding for outdoor installations.
- Regional approvals such as CE, RoHS and others are commonly listed; check the supplied datasheet for exact approvals and UKCA if required.
Use Cases and Ideal Scenarios
The Hikvision DS-3E1505P-EI excels in situations where space, simplicity and PoE delivery matter. Typical scenarios include:
- Up to four cameras can be powered directly from the switch. The combination of PoE+ support and long-range mode lets you place cameras at greater distances without separate power runs.
- PoE Watchdog is particularly useful in unattended camera systems: a camera that stops responding can be power-cycled automatically to restore service.
- Acts as a compact distribution switch for an office with a small number of PoE phones, access points or security cameras.
- Web-based management, VLANs and link aggregation help segment voice/video traffic and improve reliability without requiring an IT rack full of gear.
- Small footprint and wall-mount capability make it a neat choice for retail backrooms or digital signage stacks, where a few PoE devices need centralized power and network access.
Comparisons with Similar Products
When choosing a small PoE switch, buyers often compare the DS-3E1505P-EI to offerings from Netgear, TP-Link, Ubiquiti and other Hikvision models. Heres how it stacks up on common decision points:
- Unmanaged models (from Netgear or TP-Link) can be cheaper but lack VLANs, link aggregation and PoE Watchdog. The Hikvision provides more control and camera-centric features at a modest premium.
- Some competitors offer similar smart-managed feature sets. The DS-3E1505P-EI distinguishes itself with Hikvision ecosystem integration (useful if you already use Hikvision NVRs/management) and long-range PoE on ports 1 64, plus robust surge protection aimed at surveillance use cases.
- Larger switches provide higher PoE budgets, more ports and richer L2/L3 features. The DS-3E1505P-EI is targeted at small deployments where only a handful of PoE devices are required and space or budget is constrained.
Customer Feedback and Typical Reviews
Direct product reviews for the DS-3E1505P-EI often reflect its target audience: installers and small business users who value simplicity and reliability. Typical feedback themes include:
- Easy setup and compact form factor 50 6customers praise the small footprint and quick web GUI configuration for camera projects.
- Good value for surveillance use Many note that PoE Watchdog and long-range mode are practical additions for surveillance deployments compared with bare-bones switches.
- PoE budget caution Some buyers initially assumed the highest total PoE budget; installers recommend verifying the adapter label and datasheet because variants list 45 W or 60 W totals depending on region and adapter supplied.
If youre looking for concrete testimonials, consider collecting short installer case notes such as: "Deployed four 4K cameras with PoE Watchdog — reduced callouts for frozen cameras," or "Great for a small office: powered two Wi-Fi APs and a VoIP phone with room to spare." These reflect typical, anonymized user experiences rather than individual endorsements.
Practical Considerations Before Buying
- Verify PoE budget and adapter:Hikvision regional pages list differing total PoE budgets (commonly 45 W or 60 W depending on variant and power adapter). Confirm the exact PoE power budget and adapter rating on the supplied unit (check the adapter label and included datasheet) before planning device loads.
- Surge protection and grounding:While the unit includes 6 kV surge protection, outdoor camera runs still benefit from additional surge protectors and proper grounding practices to minimize lightning-related risks.
- Installation:Suitable for DIY installers, but commercial or safety-critical installations should be performed by qualified professionals to ensure compliance with local codes and proper power distribution.
- Value:With a suggested price of $54.99 (cost price noted at $41.47), the DS-3E1505P-EI aims to provide an attractive balance of features versus price for surveillance- and small-network projects.
Conclusion: Why Choose the Hikvision DS-3E1505P-EI?
The Hikvision DS-3E1505P-EI is a focused solution for small PoE deployments where reliability, camera-specific features and a compact footprint matter. It combines PoE+ support, smart management, long-range PoE and surge protection in an easy-to-deploy package. For installers and small businesses that need to power and manage up to four PoE devices while keeping costs and space requirements low, this switch offers a compelling set of capabilities. Just be sure to verify the total PoE budget on the shipped adapter and datasheet for your region so you can plan device power accurately. When matched to the right use case small surveillance systems, compact office installs or temporary kiosks the DS-3E1505P-EI delivers solid performance and useful management features at an affordable price.
