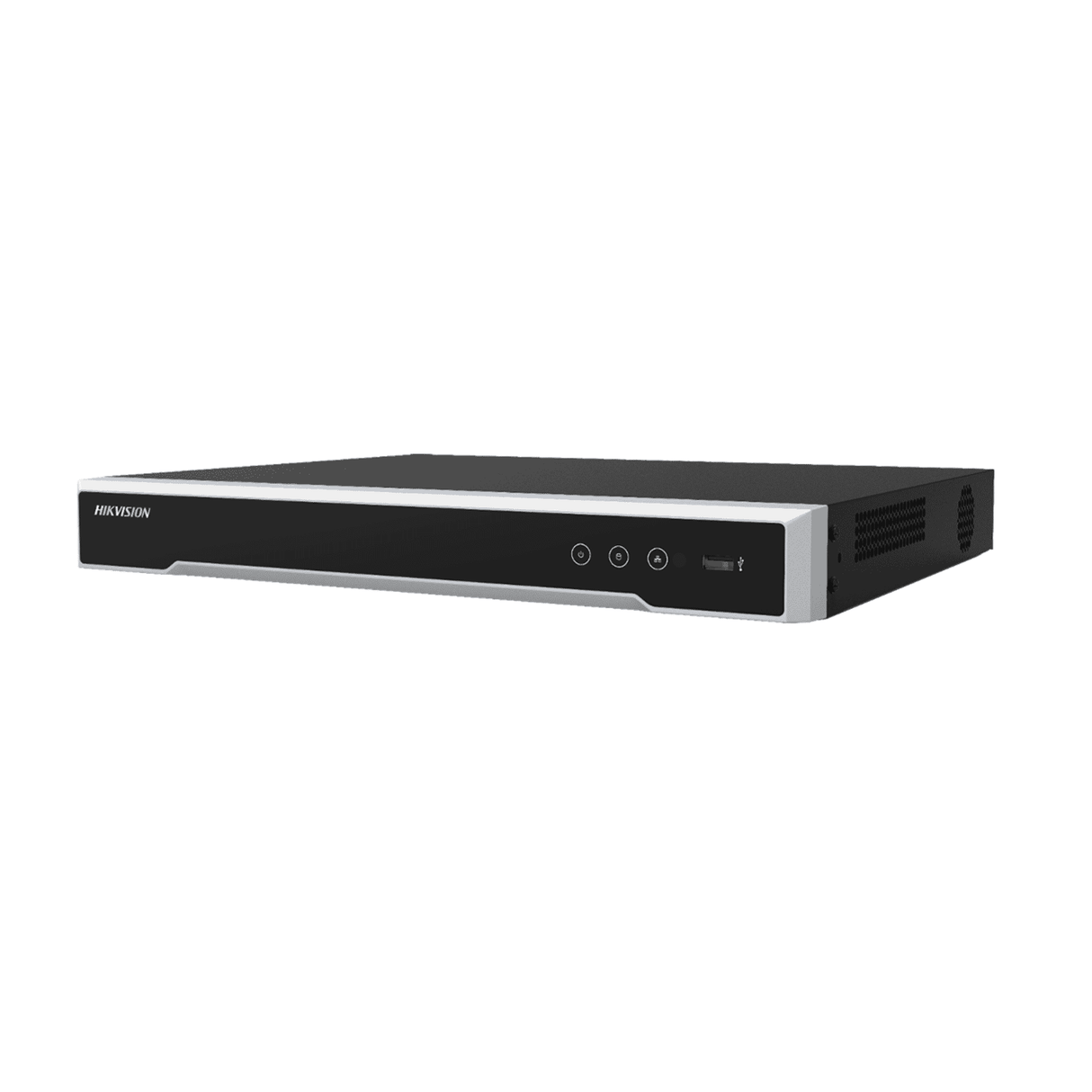

Hikvision DS-7608NI-M2/8P 8-ch PoE NVR, 8K HDMI, 2×SATA

Introduction: Meet the Hikvision DS-7608NI-M2/8P

The Hikvision DS-7608NI-M2/8P is an 8-channel PoE Network Video Recorder (NVR) from Hikvision’s M-series designed for small-to-medium surveillance installations that need straightforward PoE support, high-resolution local display, and flexible storage. With eight built-in PoE ports, support for modern compression codecs (including H.265+), and an HDMI output capable of up to 8K resolution, this NVR strikes a balance between ease of installation and advanced monitoring capability. Whether you’re equipping a retail store, office, or a small campus, this model is aimed at delivering reliable recording, scalable storage, and smooth remote access.

Key features at a glance

• 8 independent PoE ports(IEEE 802.3af/at) with up to 120 W budget for powering cameras directly from the NVR.
• High-efficiency video compressionincluding H.265+ to reduce bandwidth and storage requirements.
• Local HDMI output up to 8K (7680×4320 @30Hz)and 4K @60Hz for crisp on-site monitoring.
• Two internal SATA bayssupporting up to 16 TB each (up to 32 TB total) for robust local storage.
• Remote access & protocol supportvia Hik-Connect, ONVIF, RTSP and standard network protocols with up to 128 simultaneous remote connections.

Detailed specifications and the benefits they deliver

Understanding the specifications helps translate technical numbers into practical advantages during system planning and daily use. Below are the most relevant specifications and what they mean in real-world terms.

• Model & channels:DS-7608NI-M2/8P supports 8 IP channels — ideal for sites with up to eight cameras or for phased expansion using additional NVRs.
• PoE ports & power:8 × RJ-45 PoE ports (10/100 Mbps) with IEEE 802.3af/at and a total PoE power budget of ≤120 W. Benefit: simple installation — cameras can be powered directly from the recorder, reducing cabling and separate power supplies.
• Network port & protocols:1 × Gigabit RJ-45 and support for TCP/IP, DHCP, IPv4/IPv6, RTSP, ONVIF, and Hik-Connect. Benefit: broad compatibility with third-party cameras and flexible remote access options including smartphone apps.
• Remote connections & bandwidth:Up to 128 simultaneous remote connections with incoming bandwidth up to 128 Mbps and outgoing up to 256 Mbps. Benefit: multiple operators and remote viewers can access video without overwhelming the system.

• Video compression:H.265+/H.265/H.264+/H.264 with dual-stream recording. Benefit: improved compression reduces storage and network load while preserving image quality.
• Max resolution and decoding:Supports up to 32 MP per channel in ultra-HD mode; typical decoding example shows up to 8-ch @8MP (30 fps) for local display. Benefit: future-proofs installations using high-resolution cameras and enables clear forensic detail.
• Local display outputs:HDMI up to 8K (7680×4320 @30Hz) and 4K @60Hz; VGA up to 1920×1080; CVBS output via BNC. Benefit: exceptionally high local display resolution for control rooms or on-site monitoring stations.
• Playback:Synchronous playback of up to 8 channels — helpful for reviewing multi-camera incidents quickly.

• Internal storage:2 × SATA bays, each up to 16 TB (max internal 32 TB). Benefit: large local capacity avoids immediate need for external NAS or cloud storage for many small-to-medium deployments.
• USB:Front USB 2.0 and rear USB 3.0 for exports, upgrades and peripheral connections.
• Power & size:100–240 VAC input, low baseline power consumption (≤15 W without HDD and PoE off), compact dimensions (≈385 × 315 × 52 mm). Benefit: energy-efficient and easy to rack or install in small cabinets.

Use cases and scenarios where the DS-7608NI-M2/8P excels

This NVR is tailored for environments where simplicity, local display quality and PoE convenience matter. Typical scenarios include:

• Retail stores:Up to eight PoE cameras can cover sales floors, entrances and cash registers. H.265+ reduces storage costs while 4K/8K HDMI output allows managers to review crisp footage on-site.
• Small and medium-sized offices:A compact, all-in-one recorder with PoE ports reduces infrastructure complexity — ideal for multi-floor or multi-zone office security systems.
• Branch locations and remote sites:On-board PoE and large internal storage mean deployments in remote or branch venues don’t require additional equipment. Hik-Connect and ONVIF support simplify remote monitoring and integration.
• Education and healthcare:Classrooms, clinics or small campuses benefit from easy-to-manage recording, high-resolution playback for incident review, and simultaneous remote connections for multiple administrators.
• Small warehouses and light industrial sites:Weatherproof IP cameras can be powered and recorded centrally; large local storage capacity helps retain video for longer retention policies.

Comparisons with similar products

When compared to competing 8-channel PoE NVRs, the DS-7608NI-M2/8P stands out for its combination of high-resolution local display and a generous PoE power budget in a compact chassis. Key comparison points:

• Versus basic 8ch NVRs without high-res HDMI:Many lower-cost NVRs limit HDMI to 1080p or 4K @30Hz. The DS-7608NI-M2/8P’s 8K output offers higher-fidelity monitoring — useful where local display detail matters.
• Versus standalone NVR + PoE switch setups:Integrated PoE simplifies cabling and reduces rack space compared with pairing a separate PoE switch and NVR. This unit reduces component count and points of failure.
• Versus higher-end enterprise recorders:Enterprise NVRs offer greater channel counts, RAID and more advanced analytics, but they carry higher costs and complexity. The Hikvision M-series balances performance and affordability for smaller deployments.
• Compatibility with third-party cameras:ONVIF support makes it a practical choice for mixed-camera environments; however, best feature compatibility may still be with Hikvision cameras when using advanced analytics or proprietary functions.

Conclusion: Why the DS-7608NI-M2/8P is a strong choice

The Hikvision DS-7608NI-M2/8P is an attractive option for organisations and installers seeking a compact, capable 8-channel PoE NVR. It combines practical on-board PoE, modern compression (H.265+), strong local display capability (up to 8K HDMI) and substantial internal storage potential (up to 32 TB) in a single, easy-to-deploy unit. For small-to-medium CCTV installations where installation simplicity, high-quality local monitoring and good remote access are priorities, this NVR provides a compelling balance of features and value.

Before purchasing, confirm whether the SKU includes hard drives or if HDDs must be supplied separately, and ensure planned cameras and analytics are compatible (especially if you intend to mix brands). With sensible planning and professional installation for permanent systems, the DS-7608NI-M2/8P can serve as a dependable core component of a resilient IP surveillance solution.
