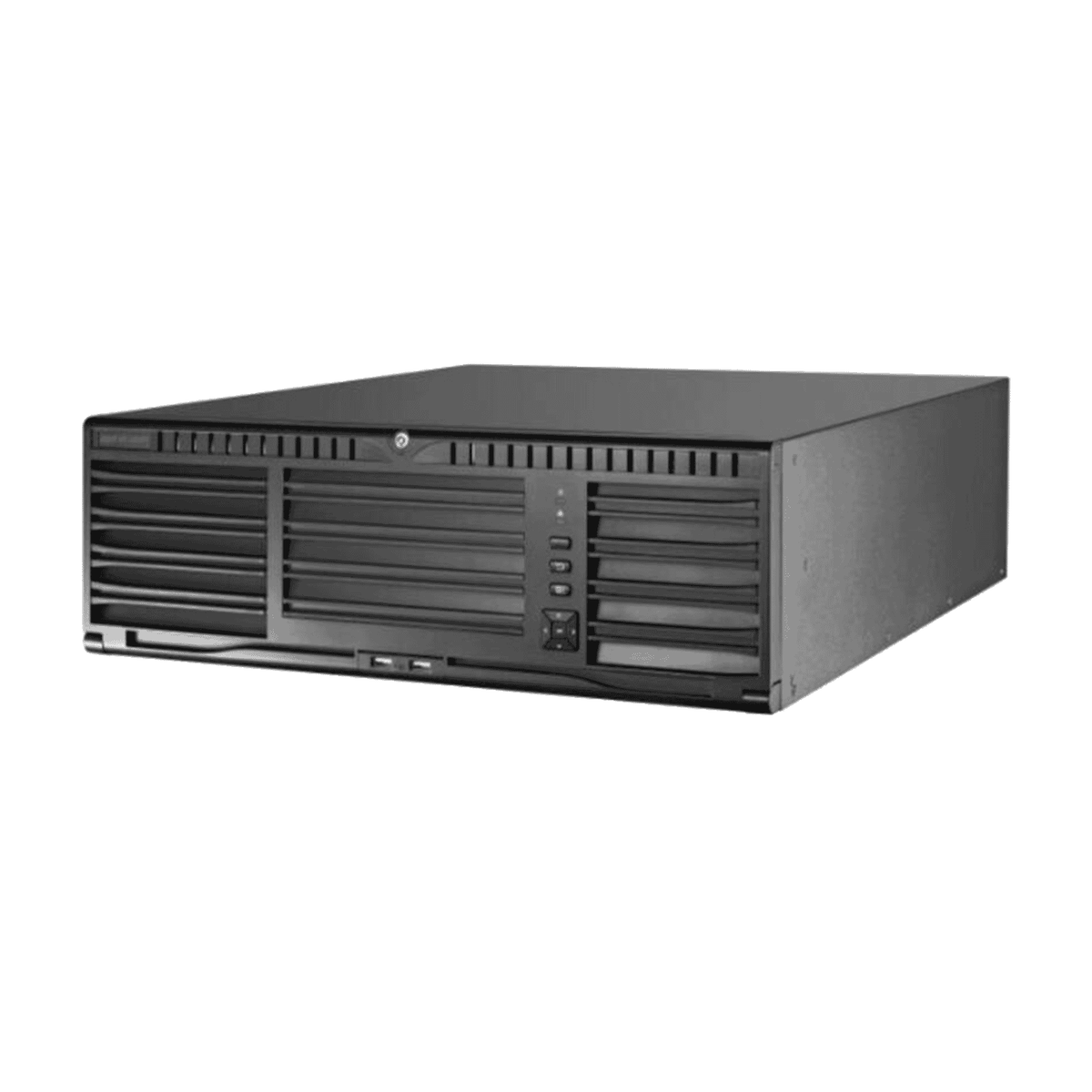

Hikvision DS-96256NI-I16 256-Ch 3U Enterprise NVR, 16-Bay RAID

Introduction to the Hikvision DS-96256NI-I16 and its key features

The Hikvision DS-96256NI-I16 is an enterprise-grade 3U Network Video Recorder (NVR) engineered for large-scale IP CCTV deployments. Built to handle demanding surveillance environments, it supports up to 256 IP camera channels and offers 16 hot‑swappable SATA drive bays with multiple RAID configurations for data protection. With dual 4K HDMI outputs, multi-channel decoding and broad protocol support (including ONVIF), this unit is designed for centralised recording in enterprises, campuses, retail estates and city‑wide projects where channel density, long retention and reliability matter.

Detailed description of specifications and benefits

The DS-96256NI-I16 combines high channel capacity, flexible storage options and enterprise-grade reliability. Below is a concise breakdown of the key technical specifications and the practical benefits they deliver.

• Supported codecs: H.265/H.265+, H.264/H.264+, MPEG4 and MJPEG — modern compression options reduce storage and bandwidth demands without sacrificing image quality.
• Incoming bandwidth: 768 Mbps — supports a high aggregate camera throughput suitable for mixed-resolution fleets.
• Outgoing (TLS) bandwidth: 128 Mbps (64 Mbps in RAID) — encrypted streaming with TLS helps protect video-in-transit; note lower throughput in RAID modes depending on configuration.
• Decoding & playback: multi-channel decoding with synchronous playback up to 16 channels and decoding examples provided by the manufacturer (e.g., 1×32 MP; 5×8 MP; 10×4 MP; 20×1080p) — useful for live monitoring and archival review.
• Video outputs: 2× HDMI (4K) + 1× VGA (1080p) — dual 4K outputs enable high-resolution monitoring stations or video walls.

• HDD bays: 16 hot‑swappable SATA bays — supports easy onsite maintenance and fast drive replacement without system downtime.
• Max per bay: 10 TB (manufacturer published) — up to 160 TB internal capacity (16×10 TB) as published; further expansion possible via eSATA or optional mini‑SAS.
• RAID modes: 0/1/5/6/10 with N+1 hot‑spare — flexible RAID options accommodate different priorities (capacity, performance or redundancy) and N+1 hot‑spare adds additional resiliency for mission‑critical storage.
• HDD management: health monitoring, quota and grouping — simplifies lifecycle management and helps avoid unexpected failures.

• Network: 4× Gigabit RJ45 ports with support for IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE and DDNS — broad protocol support eases integration into existing infrastructures.
• Camera protocols: Hikvision native, ONVIF 2.5 and RTSP — good interoperability with third‑party IP cameras that comply with ONVIF.
• Interfaces: USB 3.0 plus USB 2.0, 1× RCA audio out, two‑way audio support and optional extension boards (SFP, RS‑485, alarm I/O) — flexible I/O for diverse deployments.
• Power & environment: 100–240 VAC, power consumption ≤140 W (without HDD), operating temperature 0–50 °C and optional redundant PSU/fan variants — designed for data‑centre or rack environments with appropriate power and cooling practices.

• High channel density: 256 channels lets a single recorder manage very large camera estates, simplifying centralisation and lowering per-channel hardware costs.
• Scalable, high‑capacity storage: 16 hot‑swap bays and RAID choices make it straightforward to size for retention requirements and to add redundancy for business continuity.
• Operational continuity: hot‑swap drives, HDD health monitoring and optional redundant PSU reduce downtime and maintenance windows.
• Integration flexibility: ONVIF and multiple network protocols mean easier integration with third‑party systems and video management platforms.

Use cases and scenarios where the product excels

The DS-96256NI-I16 is intended for environments that demand many camera channels, long retention periods and robust uptime. Typical deployments include:

• Centralised recording hub for multiple buildings: consolidated storage for hundreds of IP cameras across locations, with 4K output for security operations centres (SOCs).
• Compliance and evidence retention: large internal capacity and RAID protection help meet regulatory or corporate retention policies.

• High camera counts covering public areas, entrances, tills and back‑of‑house zones; long retention windows for loss prevention investigations.
• Integration with POS and analytics platforms via broad protocol support to enhance loss-prevention workflows.

• Wide-area deployments with centralised storage and redundancy for resilience. Dual 4K outputs enable live monitoring across multiple operator stations or video walls.
• Support for encrypted streams (TLS) helps protect sensitive public-safety data in transit.

• Can act as a central NVR in a data-centre-style rack with optional expansion (eSATA/mini‑SAS) for archival tiering or replication.
• Suitable for managed service providers who require predictable maintenance procedures (hot‑swap, drive grouping, health alerts).

Comparisons with similar products on the market

When evaluating the DS-96256NI-I16 against other enterprise NVRs, consider the following comparative points rather than one single winner—each deployment has different priorities.

• Channel capacity: 256 channels is a high ceiling common among enterprise NVRs. Some competitors may offer similar channel support but with fewer drive bays or different maximum internal capacities.
• Storage density: 16 hot‑swap bays and a published 160 TB internal capacity are strong for long‑retention projects. Other vendors may prioritise higher per-bay capacities or easier scale-out options (e.g., modular expansion shelves), so compare expansion pathways closely.
• RAID and redundancy: RAID6 and N+1 hot‑spare are attractive for resilience. Some rival units emphasise hardware-level redundancy (dual active PSUs or mirrored controllers) — check variant options and service-level requirements.
• Decoding and outputs: dual 4K HDMI outputs are useful for multi‑operator setups. For specialised VMS integrations or very large video walls, purpose-built video‑wall decoders or GPUs in some competitor models might be preferable.
• Integration and standards: ONVIF 2.5 and broad protocol support make Hikvision flexible, but organisations with strict vendor-agnostic policies should validate multi-vendor interoperability and third‑party VMS compatibility in their lab tests.

Conclusion: why the DS-96256NI-I16 is a great choice

For organisations that require centralised recording for hundreds of IP cameras, the Hikvision DS-96256NI-I16 delivers a balanced blend of channel capacity, storage density and enterprise features. Its 16 hot‑swap bays, multiple RAID modes including N+1 hot‑spare, and dual 4K HDMI outputs make it suitable for SOCs, large retail, campuses and city surveillance systems. Broad network protocol and ONVIF support ease integration, while HDD monitoring and hot‑swap capability reduce downtime and simplify maintenance.

When these checks are in place, the DS-96256NI-I16 stands out as a practical, feature-rich option for large-scale surveillance deployments.
