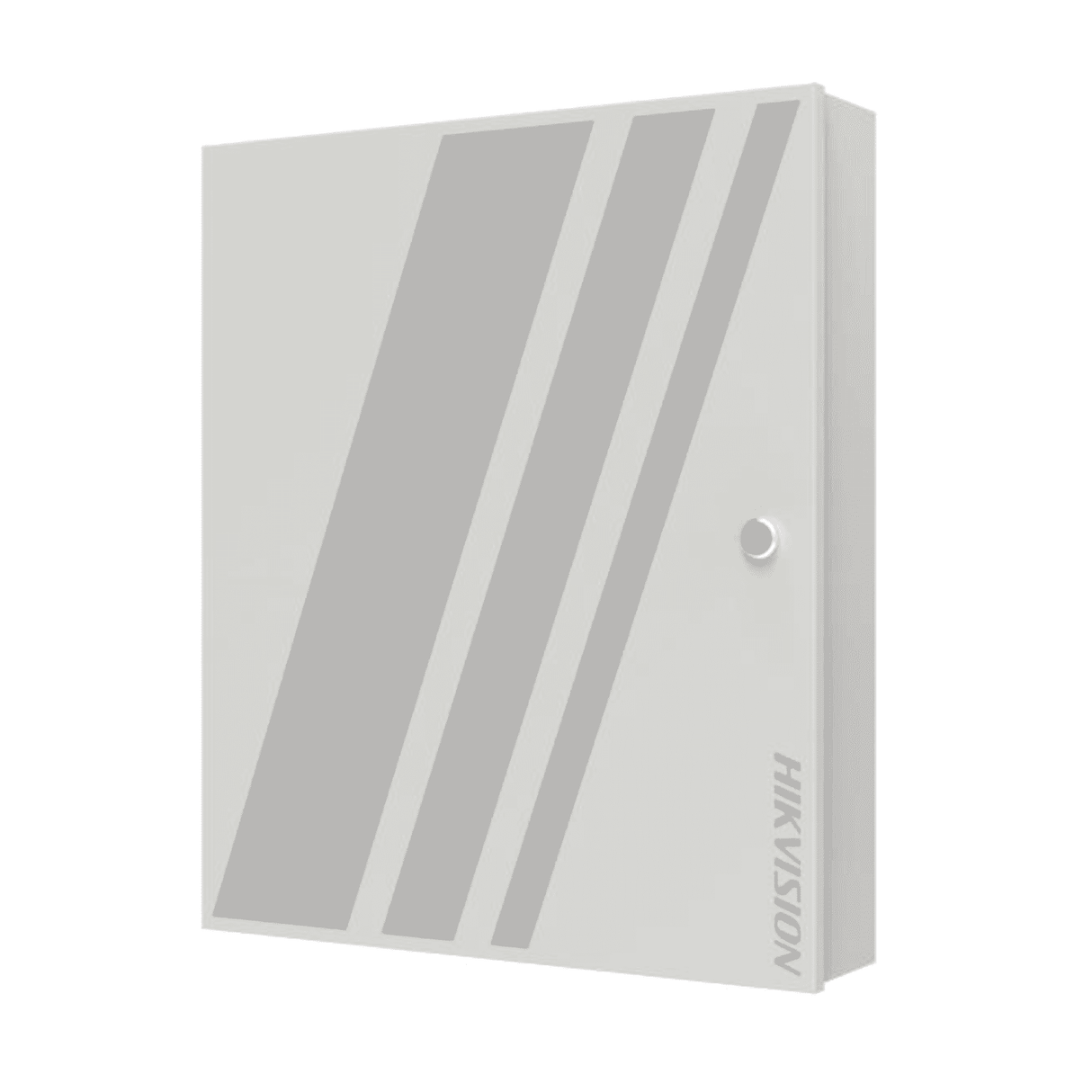

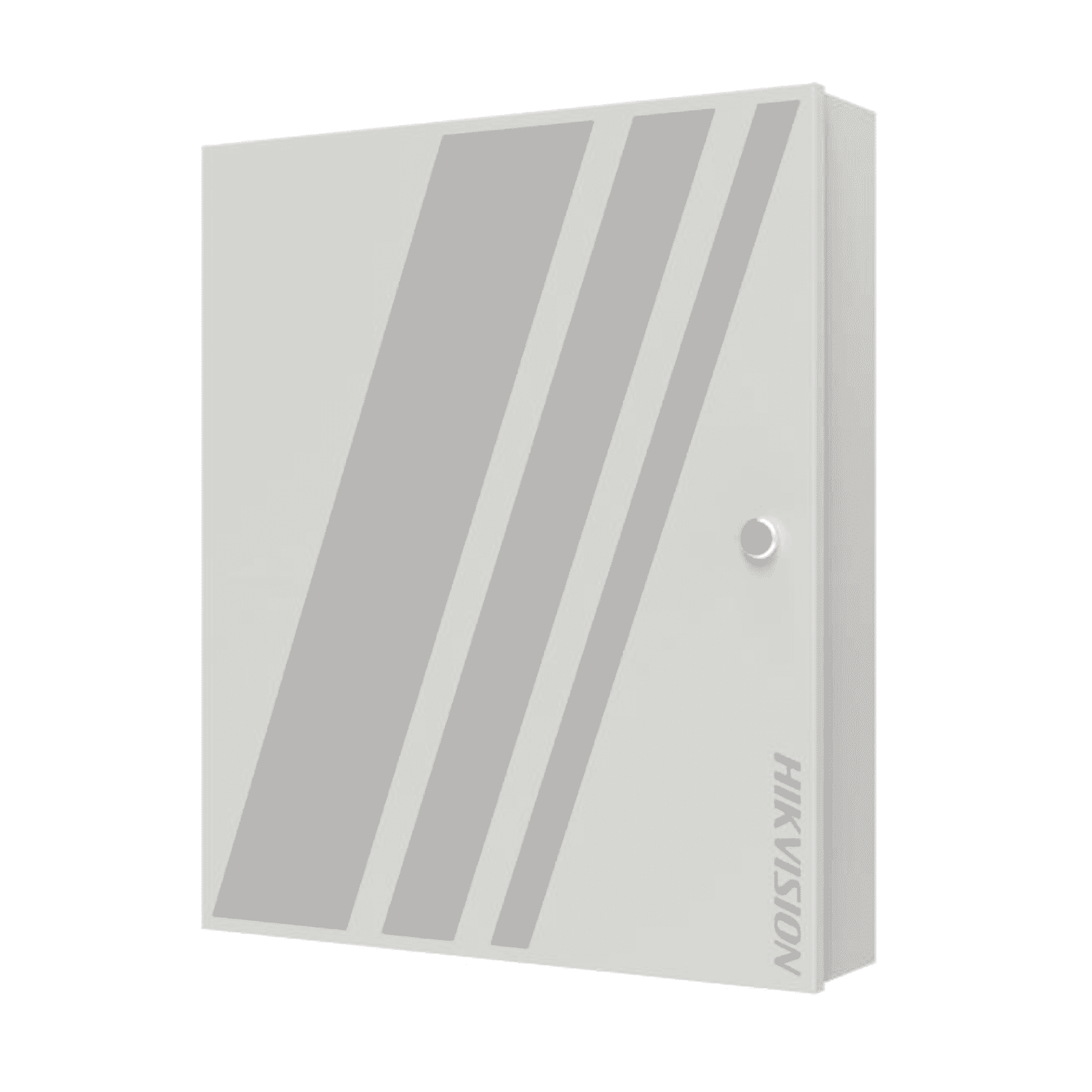

Hikvision DS-K2708X Ultra-Series 8-Door Network Access Controller, Gigabit, 100k Users

Introduction to the Hikvision DS-K2708X Ultra-Series 8-Door Network Access Controller

Hikvision DS-K2708X 8‑Door Network Access Controlleris an enterprise-grade access control platform designed for medium to large installations that demand high capacity, flexible wiring, and professional access features. Built on Hikvisions Ultra-Series architecture, the DS-K2708X combines a 4-door core with two extendable access modules to control up to eight doors (supporting up to 16 readers). With Gigabit Ethernet connectivity, web-based configuration, and substantial on-device storage for users and events, this controller targets installers and integrators who need a robust, scalable solution for offices, campuses, healthcare, education and light industrial sites.

• Controls up to 8 doors and supports up to 16 readers (RS-485 OSDP or Wiegand where module-dependent).
• High-capacity storage: approximately 100,000 users, 200,000 cards, 10,000 fingerprints, and 600,000 event logs.
• Gigabit Ethernet (1 × RJ45 10/100/1000 Mbps) for fast network communication and web-based configuration.
• Professional access functions: anti-passback, multi-door interlock, multi-factor authentication, tamper detection and fire interface.
• Robust I/O: 8 lock outputs, 8 REX inputs, 8 door contacts, 16 alarm inputs and 8 alarm outputs; redundant/segmented downstream RS-485 wiring.
• Physical resilience and installation support: metal enclosure options, backup battery charging/discharging capability and a USB 2.0 port.

Detailed specifications and benefits

• Model / Series:DS-K2708X, Ultra-Series. Benefit: Enterprise-grade firmware and features designed for large-scale deployment and integration with Hikvision ecosystems.
• System OS:Linux. Benefit: Stable, lightweight operating environment with predictable performance for continuous use.
• Doors / Readers:Up to 8 doors; up to 16 readers. Benefit: Flexibility to support different reader types and multi-reader door configurations (e.g., in/out readers or two-factor setups).
• Network:1 × RJ45 10/100/1000 Mbps (Gigabit). Benefit: High throughput for faster synchronization, large event uploads and responsive web management over modern networks.
• USB:1 × USB 2.0. Benefit: Local backup/restore or firmware updates without needing network access.
• Capacities:~100,000 users; 200,000 cards; 10,000 fingerprints; 600,000 events. Benefit: On-device capacity suitable for enterprise deployments and high-volume access scenarios, reducing dependence on constant server connectivity.
• Key functions:Anti-passback, multi-door interlock, multi-factor authentication, fire interface. Benefit: Enterprise safety and security workflows including emergency unlocking, combined credential policies and prevention of credential sharing.
• Reader support:Up to 16 RS-485 OSDP or up to 8 Wiegand (module-dependent). Benefit: OSDP support enables encrypted bidirectional communication and improved security compared with legacy Wiegand wiring.

• Lock outputs:8 — supports direct locking for each controlled door.
• REX inputs:8 — Request-to-exit integration to maintain smooth egress control.
• Door contacts:8 — individual monitoring for door position reporting and alarm conditions.
• Alarm I/O:16 inputs; 8 outputs — broad alarm integration capability for sensors, PIRs, glass-break and third-party devices.
• RS-485:Up to 15 downstream interfaces — redundant/segmented wiring options reduce single points of failure on larger downstream reader networks.
• Power input / Max power:100140 VAC (enclosure variants include PSU); ≤ 200 W. Benefit: Wide input range for global installations; enclosure variants simplify installation by including an internal power supply option.
• Battery support:Backup battery charging/discharging supported; tamper switch present. Benefit: Keeps critical access control systems running during power interruptions and provides physical tamper detection for security events.

• Dimensions:Approx. 417.5 × 487.2 × 98.3 mm (varies by enclosure). Benefit: Rackable/field-friendly enclosure sizes with space for modules and cabling.
• Operating temperature:−10 °C to 55 °C;Humidity:0%–90% RH non-condensing. Benefit: Suitable for many indoor commercial environments without specialized climate control.
• Enclosure:Metal enclosure (varies by SKU). Benefit: Durable housing for circuit protection and cable management.
• UI languages:English and regional languages. Benefit: Easier on-site configuration for local installation teams.

Use cases and scenarios where the DS-K2708X excels

The DS-K2708X is specifically well-suited to environments where capacity, reliability and advanced access policies are required. Typical deployment scenarios include:

• Corporate campuses and multi-building offices:Large staff volumes, multi-factor authentication for secure areas and complex anti-passback or interlock workflows make the DS-K2708X a good fit. Its local capacity means brief network interruptions wont immediately interrupt credential validation.
• Education and campus environments:Where multiple entrances, secure labs and high event logging are required, this controller supports centralized management while retaining strong on-device storage.
• Healthcare facilities:Need for secure, auditable access control combined with emergency/fire interface support and tamper detection aligns well with hospital and clinic requirements.
• Multi-site rollouts and managed service providers:Installers who deploy many doors across sites benefit from Gigabit connectivity, RS-485 segmentation and robust event storage to reduce troubleshooting trips.
• Light industrial and logistics:Where mixed credential technologies (card, fingerprint, multi-factor) and alarm I/O integration are necessary for safety and inventory control.

Comparisons with similar products in the market

Within the mid-to-high tier access control controller category, the DS-K2708X competes with multi-door controllers from other established access brands. Key differentiators and points of parity include:

• Capacity and on-device storage:Many comparable controllers in this class offer tens of thousands of users; the DS-K2708X stands out with ~100k user capacity and 600k event logs, reducing dependence on always-on server connectivity for audit and verification.
• Networking speed:Gigabit Ethernet is increasingly standard for enterprise installations; some legacy controllers remain at 10/100 Mbps. The DS-K2708Xs Gigabit port helps large installations with faster synchronization and firmware operations.
• OSDP and reader support:Support for RS-485 OSDP readers is a modern advantage compared with controllers that only support Wiegand. OSDP provides encrypted communication and more advanced reader capabilities.
• Modularity and wiring resilience:The segmented downstream RS-485 and the modular 4-door core plus modules design make it more fault-tolerant and flexible than fixed 4- or 8-door controllers that lack downstream segmentation.
• Integration and ecosystem:Hikvisions ecosystem advantage is tighter integration with Hikvision cameras, VMS and software platforms. Organizations already using Hikvision infrastructure may find a more seamless integration workflow.

When choosing between brands, consider factors beyond hardware specs: local support and warranty policies, regional compliance (CE/UKCA etc.), available integration partners, and whether your organization requires an open-platform controller that integrates with third-party software.

Conclusion: Why the DS-K2708X is a strong choice

The Hikvision DS-K2708X Ultra-Series 8‑Door Network Access Controller is a compelling choice when you need enterprise-grade capacity, modern networking, and professional access control features in one device. Its combination of high on-device storage, Gigabit networking, OSDP reader support, and robust I/O make it suitable for corporate campuses, education, healthcare and managed multi-site deployments. For integrators and security managers, the controllers modular design and wiring resilience reduce single points of failure while simplifying on-site configuration.

As with any security investment, ensure you consult the official Hikvision DS-K2708X manual and datasheet for wiring, PSU and battery installation, and verify local regulatory approvals and warranty terms through authorised distributors. When deployed with proper planning and integration, the DS-K2708X delivers the capacity, flexibility and reliability expected from an enterprise-class access control controller.
