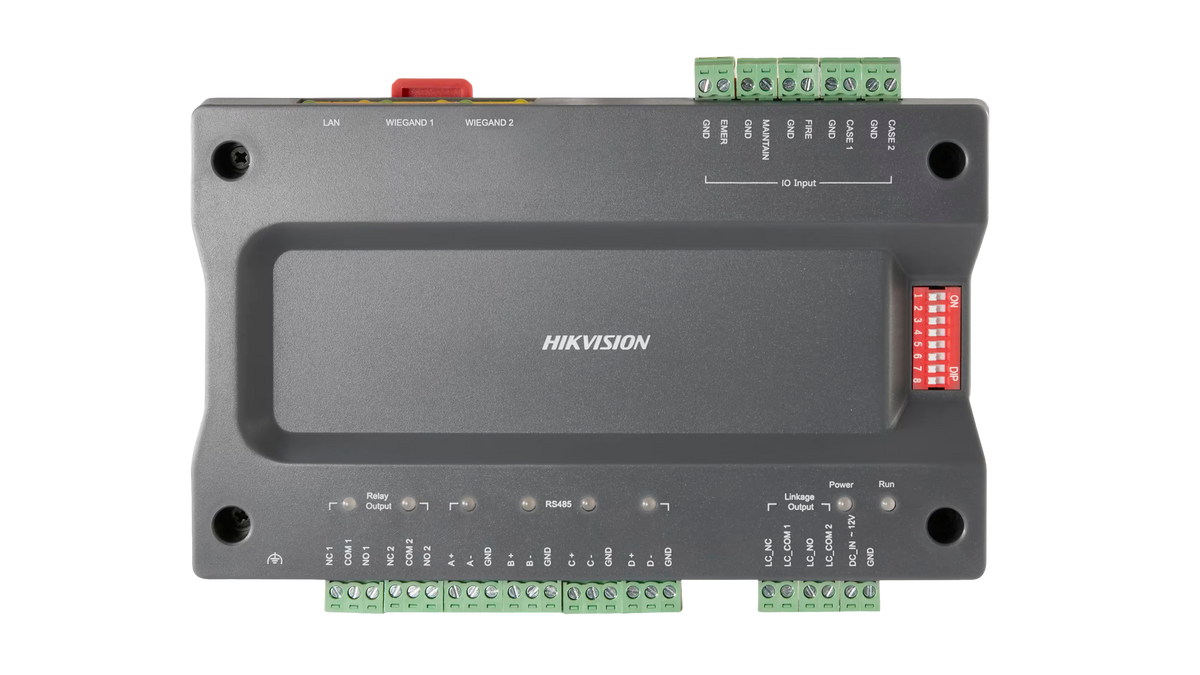

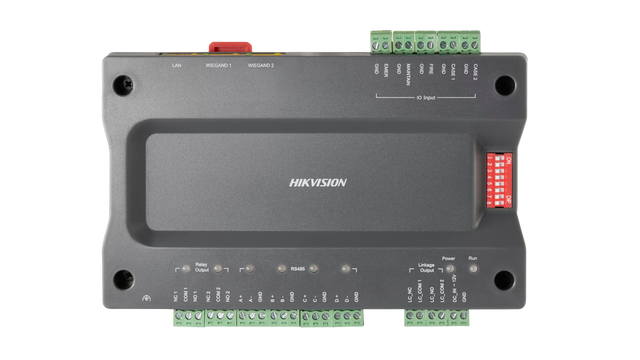

Hikvision DS-K2210 Elevator Master Controller, 128 Floors, 20,000 Cards
Free Delivery
Save £47.78
About this product
The Hikvision DS-K2210 is an elevator master controller that controls 128 floors' permissions, storing 20,000 cards and 50,000 events. It connects over TCP/IP and RS-485 and accepts 2 Wiegand readers or 2 RS485 readers.
Key features
- Controls 128 floors' permissions
- 20,000 cards and 50,000 events storage
- Uplink communication over TCP/IP and RS-485
- Card readers: 2 Wiegand readers or 2 RS485 readers
- Inputs: 1 panic button, 1 fire alarm button and 1 maintenance button
- 5 relay outputs
- Multiple authentication modes
- Watchdog and tamper-proof function
Frequently asked questions
How many floors can the DS-K2210 control?
It controls 128 floors' permissions.
How many cards and events does it store?
20,000 cards and 50,000 events.
Which card readers can it take?
Up to 2 RS-485 card readers or 2 Wiegand card readers.
What power supply does it need?
12 VDC±15%.
How is it mounted?
By guide rail installation.
How is it configured?
Via web client and client software.
Technical Details
Specifications
Brand
Hikvision
Model
DS-K2210
Manufacturer Part Number (MPN)
DS-K2210
Communication
TCP/IP;RS-485, and Wiegand
Uplink Communication
TCP/IP and RS-485
Card Reader
Up to 2 RS-485 Card Readers or 2 Wiegand Card Readers
Floor Control
Control 128 floors' permissions
Card and Event Storage
20,000 cards and 50,000 events storage
Input Interface
1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button
Output Interface
5 Relay Outputs
Internal Clock
Support
RTC
Support
Processor
32 bit
Power Supply
12 VDC±15%
Installation
Guide Rail Installation
Dimensions
167(L)mm*105(W)mm*30(H)mm
Working Temperature
-40°F to 158°F
Working Humidity
0% to 90% (No Condensation)
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-K2210 |
| Manufacturer Part Number (MPN) | DS-K2210 |
| Communication | TCP/IP;RS-485, and Wiegand |
| Uplink Communication | TCP/IP and RS-485 |
| Card Reader | Up to 2 RS-485 Card Readers or 2 Wiegand Card Readers |
| Floor Control | Control 128 floors' permissions |
| Card and Event Storage | 20,000 cards and 50,000 events storage |
| Input Interface | 1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button |
| Output Interface | 5 Relay Outputs |
| Internal Clock | Support |
| RTC | Support |
| Processor | 32 bit |
| Power Supply | 12 VDC±15% |
| Installation | Guide Rail Installation |
| Dimensions | 167(L)mm*105(W)mm*30(H)mm |
| Working Temperature | -40°F to 158°F |
| Working Humidity | 0% to 90% (No Condensation) |
