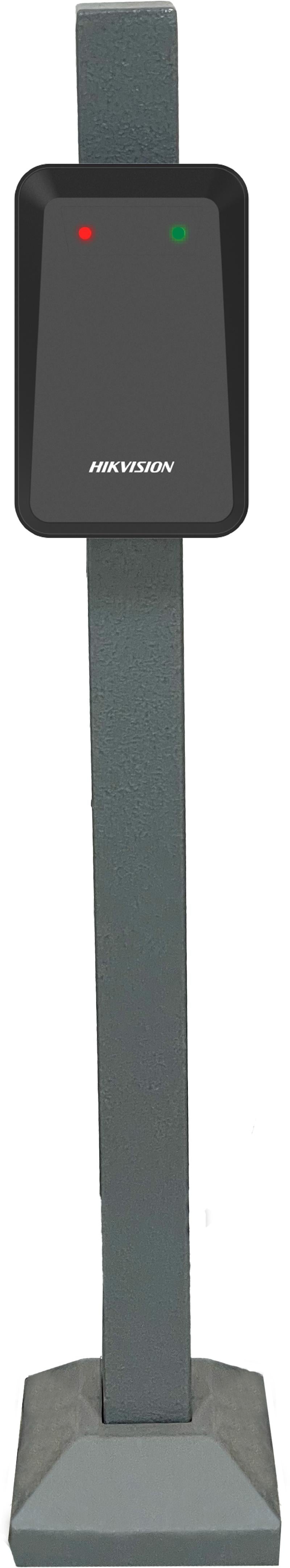

Hikvision DS-TMG035(Trigger Radar) Entrance and Exit Trigger Radar, Adjustable 0.3 to 6 m Trigger Distance, IP67
About this product
The Hikvision DS-TMG035(Trigger Radar) is an entrance and exit radar for barrier gates that detects pedestrians and vehicles stably, helping keep the barrier gate from falling down while a pedestrian or vehicle is passing. It recognises the target's moving direction for mixed entrance and exit scenes, with an adjustable trigger distance of 0.3 to 6 m and IP67 protection.
Key features
- Detects pedestrians and vehicles stably using advanced signal processing technology
- Recognises the target's moving direction, for mixed entrance and exit scenes
- Trigger distance 0.3 to 6 m (adjustable)
- Detection area horizontal width 0 to 2 m (adjustable)
- Distinguishes a following vehicle at 0.5 to 2 m (adjustable)
- Response time 50ms
- RS-485 communication
Frequently asked questions
What trigger distance does the Hikvision DS-TMG035(Trigger Radar) cover?
The trigger distance is 0.3 to 6 m (adjustable), and the detection area covers a horizontal width of 0 to 2 m (adjustable).
Does it detect pedestrians as well as vehicles?
Yes. It uses advanced signal processing technology to detect pedestrians and vehicles stably, helping keep the barrier gate from falling down while a pedestrian or vehicle is passing.
Can it tell entering traffic from exiting traffic?
It recognises the target's moving direction, which makes it applicable to mixed entrance and exit scenes.
How does it connect and how is it updated?
Communication is via RS-485, and online debugging and upgrade are supported over the serial port.
What happens to its settings after a power cut?
The radar records its configuration parameters automatically, so its working status is restored after the power is cut off and the radar is rebooted.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-TMG035(Trigger Radar) |
| Manufacturer Part Number (MPN) | DS-TMG035(Trigger Radar) |
| Beamwidth | Vertical 10°, Horizontal 38° |
| Response Time | 50ms |
| Trigger Distance | 0.3 to 6 m (adjustable) |
| Detection Area | Horizontal width: 0 to 2 m (adjustable) |
| Area Vehicle Following | Distinguish following distance of vehicle: 0.5 to 2 m (adjustable) |
| Transmitting Power | ≤ 10mW |
| Working Temperature | -40℃~+85℃ |
| Working Current | ＜ 0.25A |
| Power Consumption | ＜ 3W |
| Protection | IP67 |
| Communication | RS-485 |
