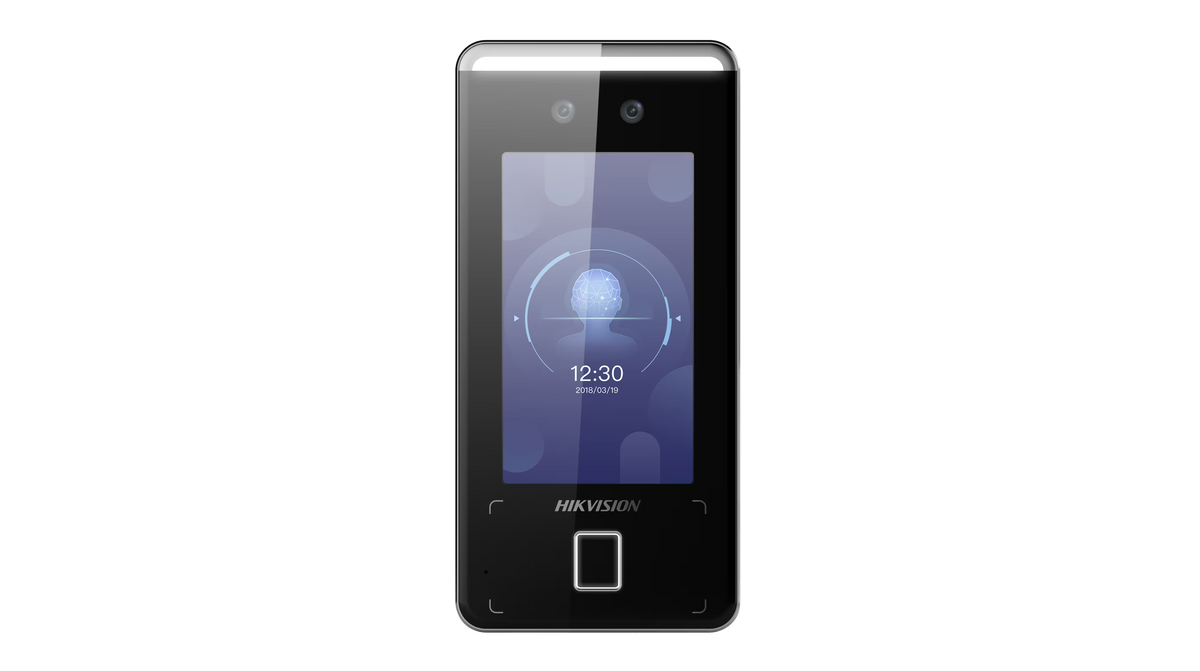

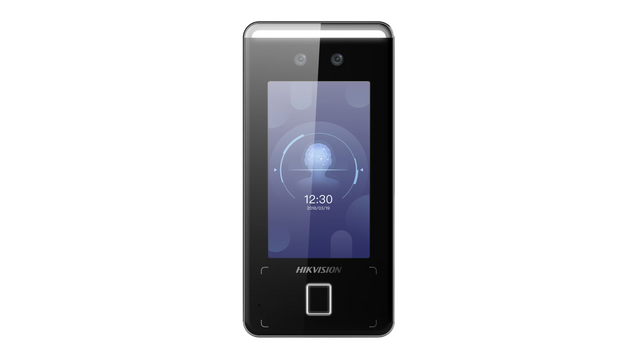

Hikvision DS-K1T341CMFW Face Recognition Terminal, 4.3-inch Touch Screen, IP65
About this product
The Hikvision DS-K1T341CMFW is a Value Series face access terminal for door access control, with a 4.3-inch capacitive touch screen and a 2 MP wide-angle dual-lens. It verifies users by face, fingerprint or card, has a built-in access controller, and can also connect to an external access controller or Wiegand card reader via the Wiegand protocol.
Key features
- 4.3-inch IPS capacitive touch screen
- 2 MP wide-angle dual-lens (video stream: 720P)
- Face, fingerprint and card authentication (M1 card)
- 3,000 face, 3,000 card and 3,000 fingerprint capacity, plus 150,000 event capacity
- Face recognition duration < 0.2 s/User, with face anti-spoofing
- Mask wearing detection
- Wi-Fi (2.4 G, 802.11b/g/n) plus 1 RJ-45, 10/100 M self-adaptive network interface
- IP65 protective level
Frequently asked questions
How do users authenticate on the DS-K1T341CMFW?
By face, fingerprint or card. The supported card type is M1 card.
How many faces, fingerprints and cards can it hold?
It has 3,000 face capacity, 3,000 card capacity and 3,000 fingerprint capacity, plus 150,000 event capacity.
What power does the DS-K1T341CMFW need?
A 12 VDC to 24 VDC, 2 A supply. Power consumption is ≤ 10 W.
Does it connect over Wi-Fi?
Yes. It supports Wi-Fi (2.4 G, 802.11b/g/n) as well as wired networking through 1 RJ-45, 10/100 M self-adaptive interface.
Can it work with an existing access controller?
Yes. It connects to an external access controller or Wiegand card reader via the Wiegand protocol (Hik 26bit, Hik 34bit).
What protective level and temperature range does it have?
It is rated IP65, with a working temperature of -30 °C to 60 °C (-22 °F to 140 °F).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-K1T341CMFW |
| Manufacturer Part Number (MPN) | DS-K1T341CMFW |
| Screen Size | 4.3 inch |
| Operation Method | Capacitive touch screen |
| Display Type | IPS |
| Lens | 2 |
| Resolution | 2 MP (video stream: 720P) |
| FOV | HFOV = 41.5°; VFOV = 75.5°; DFOV = 87° |
| Capacity | 3,000 face capacity, 3,000 card capacity, 3,000 fingerprint capacity and 150,000 event capacity |
| Face Recognition Duration | < 0.2 s/User |
| Audio Quality | Noise suppression and echo cancellation |
| Wired Network | Support |
| Wi-Fi | Support, 2.4 G, 802.11b/g/n |
| Network Interface | 1 RJ-45, 10/100 M self-adaptive |
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| Tamper | 1 |
| RS-485 | 1,RS-485 (Half duplex,HIKVISION） |
| Wiegand | 1,Wiegand （Hik 26bit,Hik 34bit） |
| USB | 1 |
| Card Type | M1 card |
| Built-In Access Controller | Support |
| Power Supply | 12 VDC to 24 VDC, 2 A |
| Power Consumption | ≤ 10 W |
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Protective Level | IP65 |
| Language | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean |
| Hik-Connect | Support |
| QR Code Recognition | Support |
| Face Anti-Spoofing | Support |
