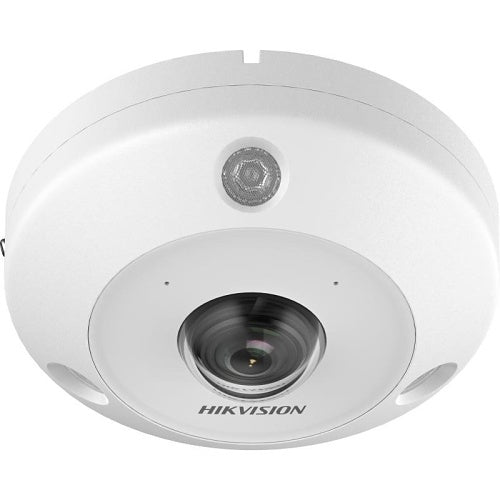

Hikvision DS-2CD6395G1E-IVS(2mm) fisheye IP camera, 9MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hikvision DS-2CD6395G1E-IVS(2mm) is a fisheye IP camera from the Panoramic range.
DS-2CD6395G1E-IVS is a fisheye network camera capable of providing a 360-degree panoramic image of its scene. The progressive scan CMOS sensor provides high-resolution images of up to 3024x3024. Up to 20 live view display modes, designed for 3 mount types, meet various user preferences.
Three independently controlled IR lights offer a range of 15m and provide good vision in low or even zero-light environment.
Key features
- Heatmap - based on deep learning algorithms, the camera counts people and presents an intuitive map
- Multi dewarping modes - the image can be dewarped to normal image for viewing intuitively
- Built-in mic and speaker - the camera supports two-way audio for real-time audio security monitoring and communication
- Built-in IR light - an IR range of 15m provides good visibility in low or even zero-light environments
- High resolution 9MP - capturing clear images even when dewarped into 4-image PTZ mode
- Each image is clear and detailed
- Water and dust resistant (IP67) and vandal resistant (IK10)
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
DS-2CD6395G1E-IVS(2mm)
Product Series
Panoramic
Product Type
Dome Camera
Technical information
Aperture
f/2.25
Built-in Microphone
Yes
Effective resolution
9MP
Illumination Distance
15m
Lens Type
Fixed
Maximum Aperture
f/2.25
Maximum Frame Rate
30fps
Motion Detection
Yes
Night Vision
Yes
Night Vision Type
Infrared (IR)
Power Consumption
9.6000W
Protocols
DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, RTP, RTSP, SFTP, SNMP, UDP
Video Formats
H.264 / AVC, H.264+, H.265 / HEVC, H.265+, MJPEG
Wide Dynamic Range
Yes
Audio
Audio Encoding
AAC-LC, G.711, G.722.1, G.726
Memory Card Slot
Yes
Camera
Image Sensor Type
CMOS
Certifications
CE marking
Yes
Ingress protection
IP67
Display & graphics
Image Sensor Size
1/1.8"
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%
Operating Temperature (T-T)
-30-60°C
Storage Temperature (T-T)
-30-60°C
Exposure
Longest Shutter Speed
1s
Minimum Illumination
0.0050lux
Shortest Shutter Speed
1/100000s
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2mm
Lens Included
Yes
Maximum Focal Length
2.00mm
Memory
Memory Card Supported
microSD, microSDHC, microSDXC
Physical characteristics
Colour
White
Durability
Dust Resistant, Vandal Resistant, Water Resistant
Form Factor
Fisheye
Height
59.40mm
Weight
715.00g
Power description
Input Voltage
12V DC
Maximum Power Consumption
12.00W
Power over Ethernet (PoE)
Yes
Power Source
DC Power, PoE (Power over Ethernet)
Product information
Diameter
140.30mm
Storage
Storage Type
SD Card
Miscellaneous
Environmental status
Yes
Impact protection
IK10
Attributes
Input Voltage
12V DC
Power Source
DC Power, PoE (Power over Ethernet)
Weight
715.00g
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2CD6395G1E-IVS(2mm) |
| Product Series | Panoramic |
| Product Type | Dome Camera |
Technical information
| Aperture | f/2.25 |
|---|---|
| Built-in Microphone | Yes |
| Effective resolution | 9MP |
| Illumination Distance | 15m |
| Lens Type | Fixed |
| Maximum Aperture | f/2.25 |
| Maximum Frame Rate | 30fps |
| Motion Detection | Yes |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Power Consumption | 9.6000W |
| Protocols | DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, RTP, RTSP, SFTP, SNMP, UDP |
| Video Formats | H.264 / AVC, H.264+, H.265 / HEVC, H.265+, MJPEG |
| Wide Dynamic Range | Yes |
Audio
| Audio Encoding | AAC-LC, G.711, G.722.1, G.726 |
|---|---|
| Memory Card Slot | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| CE marking | Yes |
|---|---|
| Ingress protection | IP67 |
Display & graphics
| Image Sensor Size | 1/1.8" |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
| Operating Temperature (T-T) | -30-60°C |
| Storage Temperature (T-T) | -30-60°C |
Exposure
| Longest Shutter Speed | 1s |
|---|---|
| Minimum Illumination | 0.0050lux |
| Shortest Shutter Speed | 1/100000s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.00mm |
Memory
| Memory Card Supported | microSD, microSDHC, microSDXC |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dust Resistant, Vandal Resistant, Water Resistant |
| Form Factor | Fisheye |
| Height | 59.40mm |
| Weight | 715.00g |
Power description
| Input Voltage | 12V DC |
|---|---|
| Maximum Power Consumption | 12.00W |
| Power over Ethernet (PoE) | Yes |
| Power Source | DC Power, PoE (Power over Ethernet) |
Product information
| Diameter | 140.30mm |
|---|
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Impact protection | IK10 |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Power Source | DC Power, PoE (Power over Ethernet) |
| Weight | 715.00g |
