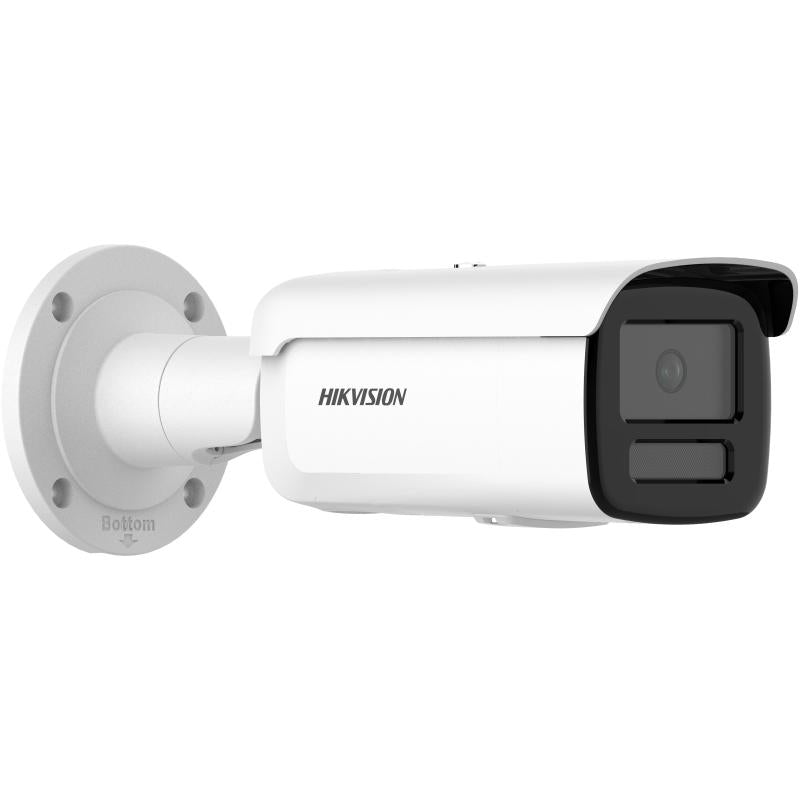

Hikvision DS-2CD2T86G2H-4I(4mm)(eF) Fixed Bullet Network Camera, 8MP, Up to 80m IR
Free Delivery
Save £45.37
About this product
The Hikvision DS-2CD2T86G2H-4I(4mm)(eF) is an 8 MP fixed bullet network camera powered by DarkFighter, with a 4 mm fixed focal lens and IR up to 80 m. It focuses on human and vehicle classification based on deep learning, and is water and dust resistant to IP67.
Key features
- 8 MP resolution, max. 3840 × 2160
- Low-light performance via powered-by-DarkFighter technology
- IR up to 80 m (4I model), 850 nm, with smart supplement light
- 4 mm fixed lens with F1.0 aperture, horizontal FOV 90.0°
- 120 dB WDR for clear imaging against strong back light
- Line crossing, intrusion, region entrance and region exiting with human and vehicle target types
- On-board microSD/microSDHC/microSDXC card slot, up to 512 GB
- IP67 water and dust resistance
Frequently asked questions
How is the DS-2CD2T86G2H-4I(4mm)(eF) powered?
From 12 VDC ± 25%, 0.95 A, max. 11.5 W via a Ø5.5 mm coaxial power plug, or by PoE: IEEE 802.3af, Class 3, max. 12.5 W.
How far does the IR reach?
The 4I model's IR supplement light reaches up to 80 m, at an IR wavelength of 850 nm, with smart supplement light.
What storage does it support?
A built-in memory card slot for microSD/microSDHC/microSDXC cards up to 512 GB, plus NAS (NFS, SMB/CIFS) with Auto Network Replenishment (ANR).
Can it be mounted outdoors?
It has IP67 protection and is rated for startup and operation from -30 °C to 60 °C with humidity of 95% or less (non-condensing).
What smart detection does it have?
Line crossing, intrusion, region entrance and region exiting, with alarm triggering by specified target types (human and vehicle), plus face capture.
What is the field of view of the 4 mm lens?
Horizontal FOV 90.0°, vertical FOV 45.8° and diagonal FOV 109.4°.
Technical Details
Specifications
Brand
Hikvision
Model
DS-2CD2T86G2H-4I(4mm)(eF)
Manufacturer Part Number (MPN)
DS-2CD2T86G2H-4I(4mm)(eF)
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
3840 × 2160
Min. Illumination
Color: 0.0008 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens Type
Fixed focal lens, 4 mm
Focal Length & FOV
4 mm, horizontal FOV 90.0°, vertical FOV 45.8°, diagonal FOV 109.4°
Lens Mount
M16
Iris Type
Fixed
Aperture
F1.0
Depth Of Field (4 mm)
3.8 m to ∞
DORI (4 mm)
D: 109 m, O: 43 m, R: 21 m, I: 10 m
Supplement Light Type
IR
Supplement Light Range (4I)
Up to 80 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Main Stream (50 Hz)
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Video Compression (main stream)
H.265/H.264/H.264+/H.265+
Video Bit Rate
32 Kbps to 16 Mbps
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host
Up to 32 users; 3 user levels: administrator, operator, and user
Network Storage
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Client
iVMS-4200, Hik-Connect, Hik-Central
WDR
120 dB
Image Enhancement
BLC, HLC, 3D DNR
SNR
≥ 52 dB
Privacy Mask
4 programmable polygon privacy masks
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event
Scene change detection
Face Capture
Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting; support alarm triggering by specified target types (human and vehicle)
Power
12 VDC ± 25%, 0.95 A, max. 11.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 12.5 W
Material
Front cover: metal, body: metal, bracket: metal
Dimension
286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")
Weight
Approx. 1180 g (2.6 lb.)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Protection
IP67: IEC 60529-2013
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CD2T86G2H-4I(4mm)(eF) |
| Manufacturer Part Number (MPN) | DS-2CD2T86G2H-4I(4mm)(eF) |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0008 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens Type | Fixed focal lens, 4 mm |
| Focal Length & FOV | 4 mm, horizontal FOV 90.0°, vertical FOV 45.8°, diagonal FOV 109.4° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth Of Field (4 mm) | 3.8 m to ∞ |
| DORI (4 mm) | D: 109 m, O: 43 m, R: 21 m, I: 10 m |
| Supplement Light Type | IR |
| Supplement Light Range (4I) | Up to 80 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream (50 Hz) | 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video Compression (main stream) | H.265/H.264/H.264+/H.265+ |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| WDR | 120 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| SNR | ≥ 52 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; support alarm triggering by specified target types (human and vehicle) |
| Power | 12 VDC ± 25%, 0.95 A, max. 11.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 12.5 W |
| Material | Front cover: metal, body: metal, bracket: metal |
| Dimension | 286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6") |
| Weight | Approx. 1180 g (2.6 lb.) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP67: IEC 60529-2013 |
