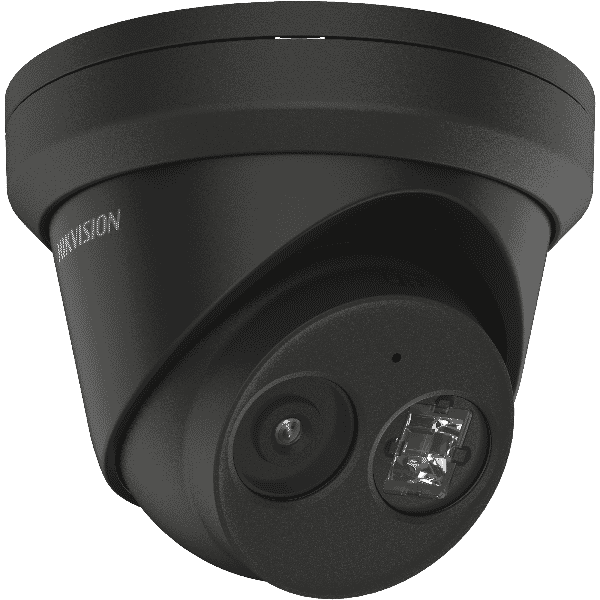

Hikvision DS-2CD2343G2-IU(2.8mm)(BLACK) AcuSense Fixed Turret Network Camera, 4MP, Up to 30m IR
About this product
The Hikvision DS-2CD2343G2-IU(2.8mm)(BLACK) is a 4 MP AcuSense fixed turret network camera in black with a 2.8 mm lens and a built-in microphone, for IP CCTV systems. It classifies human and vehicle targets with deep learning, sees up to 30 m with IR and is water and dust resistant (IP67).
Key features
- 4 MP resolution (2688 × 1520)
- Human and vehicle targets classification based on deep learning
- IR range up to 30 m at 850 nm
- Built-in microphone for real-time audio security
- 2.8 mm lens, F1.6: horizontal FOV 103°, vertical FOV 55°
- 120 dB WDR for clear imaging against strong backlight
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
Frequently asked questions
How far does the DS-2CD2343G2-IU(2.8mm)(BLACK) see in the dark?
Its IR range is up to 30 m, at an 850 nm wavelength.
Can it be powered over the network cable?
Yes. It supports PoE: 802.3af, Class 3 (max. 7 W), or 12 VDC ± 25% (max. 6 W) through a Ø 5.5 mm coaxial power plug.
Does it record sound?
Yes. The -U model has a built-in microphone for real-time audio security, with environment noise filtering.
Can it tell people from vehicles?
Yes. Motion detection, line crossing detection and intrusion detection support human and vehicle targets classification.
What memory card does it take?
A built-in microSD slot takes cards up to 512 GB.
What field of view does the 2.8 mm lens give?
Horizontal FOV 103°, vertical FOV 55° and diagonal FOV 122°.
Technical Details
Specifications
Brand
Hikvision
Model
DS-2CD2343G2-IU(2.8mm)(BLACK)
Manufacturer Part Number (MPN)
DS-2CD2343G2-IU(2.8mm)(BLACK)
Image Sensor
1/3″ Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
Shutter Speed
1/3 s to 1/100,000 s
WDR
120 dB
Day & Night
ICR Cut
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens Type & FOV (2.8 mm)
Horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
Aperture
F1.6
Lens Mount
M12
DORI (2.8 mm)
D: 67 m, O: 26 m, R: 13 m, I: 6 m
IR Range
Up to 30 m
Wavelength
850 nm
Video Compression (main stream)
H.265/H.264/H.264+/H.265+
Image Enhancement
BLC, HLC, 3D DNR
Built-in Microphone
Yes
Environment Noise Filtering
Yes
On-board Storage
Built-in microSD, up to 512 GB
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
Client
iVMS-4200, Hik-Connect, Hik-Central
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Perimeter Protection
Line crossing detection, intrusion detection; supports human and vehicle targets classification
Face Detection
Yes
Power Supply
12 VDC ± 25%, reverse polarity protection; PoE: 802.3af, Class 3
Power Consumption and Current
12 VDC, 0.5 A, max. 6 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 7 W
Power Interface
Ø 5.5 mm coaxial power plug
Material
Aluminum alloy body
Camera Dimension
Ø127.3 × 95.9 mm (Ø5.01″ × 3.78″)
Camera Weight
Approx. 600 g (1.3 lb.)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Protection
IP67 (IEC 60529-2013)
Colour
Black
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CD2343G2-IU(2.8mm)(BLACK) |
| Manufacturer Part Number (MPN) | DS-2CD2343G2-IU(2.8mm)(BLACK) |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Shutter Speed | 1/3 s to 1/100,000 s |
| WDR | 120 dB |
| Day & Night | ICR Cut |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens Type & FOV (2.8 mm) | Horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° |
| Aperture | F1.6 |
| Lens Mount | M12 |
| DORI (2.8 mm) | D: 67 m, O: 26 m, R: 13 m, I: 6 m |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Video Compression (main stream) | H.265/H.264/H.264+/H.265+ |
| Image Enhancement | BLC, HLC, 3D DNR |
| Built-in Microphone | Yes |
| Environment Noise Filtering | Yes |
| On-board Storage | Built-in microSD, up to 512 GB |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Perimeter Protection | Line crossing detection, intrusion detection; supports human and vehicle targets classification |
| Face Detection | Yes |
| Power Supply | 12 VDC ± 25%, reverse polarity protection; PoE: 802.3af, Class 3 |
| Power Consumption and Current | 12 VDC, 0.5 A, max. 6 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 7 W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Material | Aluminum alloy body |
| Camera Dimension | Ø127.3 × 95.9 mm (Ø5.01″ × 3.78″) |
| Camera Weight | Approx. 600 g (1.3 lb.) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP67 (IEC 60529-2013) |
| Colour | Black |
