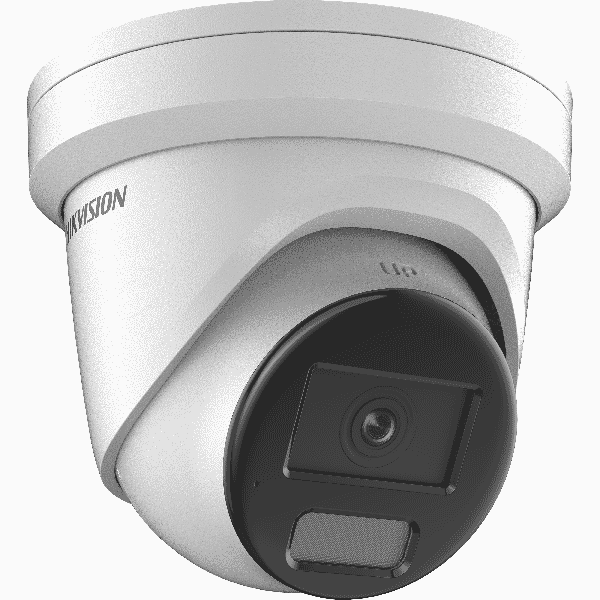

Hikvision DS-2CD2386G2H-IU(4mm)(eF) AcuSense Fixed Turret Network Camera, 8MP, 4mm
Free Delivery
About this product
The Hikvision DS-2CD2386G2H-IU(4mm)(eF) is an 8 MP AcuSense Powered-by-Darkfighter fixed turret network camera for IP CCTV systems, with a 4 mm lens and IR up to 30 m. It focuses on human and vehicle classification based on deep learning, and the -U model adds a built-in microphone for real-time audio security.
Key features
- 8 MP resolution (3840 × 2160) on a 1/1.8" Progressive Scan CMOS
- 4 mm fixed focal lens: horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
- F1.0 aperture with powered-by-DarkFighter low-light performance
- IR supplement light up to 30 m at 850 nm
- Human and vehicle classification based on deep learning
- 120 dB WDR and efficient H.265+ compression
- Built-in microphone (-U)
- Water and dust resistant (IP67)
Frequently asked questions
Can the DS-2CD2386G2H-IU(4mm)(eF) run on PoE?
Yes. It takes PoE to IEEE 802.3af, Class 3, max. 8 W, or 12 VDC ± 25%, 0.54 A, max. 6.5 W.
How far does the night vision reach?
The IR supplement light reaches up to 30 m, with an IR wavelength of 850 nm.
What field of view does the 4 mm lens give?
Horizontal FOV 93.3°, vertical FOV 47.2° and diagonal FOV 114.2°.
Does it pick up sound?
Yes. The -U model has a built-in microphone for real-time audio security.
What memory card does it take?
Its built-in memory card slot supports microSD/microSDHC/microSDXC cards up to 512 GB.
What are the DORI distances with the 4 mm lens?
For the 4 mm lens the DORI figures are D: 109 m, O: 43 m, R: 21 m, I: 10 m.
Technical Details
Specifications
Brand
Hikvision
Model
DS-2CD2386G2H-IU(4mm)(eF)
Manufacturer Part Number (MPN)
DS-2CD2386G2H-IU(4mm)(eF)
Product type
8 MP AcuSense Powered-by-Darkfighter Fixed Turret Network Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
3840 × 2160
Min. Illumination
Color: 0.0008 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR
Lens Type
Fixed focal lens
Focal Length & FOV
4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
Lens Mount
M16
Aperture
F1.0
Depth of Field (4 mm)
3.8 m to ∞
DORI (4 mm)
D: 109 m, O: 43 m, R: 21 m, I: 10 m
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
IR Wavelength
850 nm
WDR
120 dB
Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Video Compression (main stream)
H.265/H.264/H.264+/H.265+
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
4 programmable polygon privacy masks
Built-in Microphone
-U: Yes
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Face Capture
Yes
Simultaneous Live View
Up to 6 channels
Client
iVMS-4200, Hik-Connect, Hik-Central
API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Power
12 VDC ± 25%, 0.54 A, max. 6.5 W
PoE
IEEE 802.3af, Class 3, max. 8 W
Material
Cover: metal, main body: metal
Dimension
Ø 138.3 mm × 115.4 mm (Ø 5.4" × 4.5")
Weight
Approx. 775 g (1.7 lb.)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Protection
IP67
Colour
White
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CD2386G2H-IU(4mm)(eF) |
| Manufacturer Part Number (MPN) | DS-2CD2386G2H-IU(4mm)(eF) |
| Product type | 8 MP AcuSense Powered-by-Darkfighter Fixed Turret Network Camera |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0008 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR |
| Lens Type | Fixed focal lens |
| Focal Length & FOV | 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2° |
| Lens Mount | M16 |
| Aperture | F1.0 |
| Depth of Field (4 mm) | 3.8 m to ∞ |
| DORI (4 mm) | D: 109 m, O: 43 m, R: 21 m, I: 10 m |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| IR Wavelength | 850 nm |
| WDR | 120 dB |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video Compression (main stream) | H.265/H.264/H.264+/H.265+ |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Built-in Microphone | -U: Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting |
| Face Capture | Yes |
| Simultaneous Live View | Up to 6 channels |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Power | 12 VDC ± 25%, 0.54 A, max. 6.5 W |
| PoE | IEEE 802.3af, Class 3, max. 8 W |
| Material | Cover: metal, main body: metal |
| Dimension | Ø 138.3 mm × 115.4 mm (Ø 5.4" × 4.5") |
| Weight | Approx. 775 g (1.7 lb.) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP67 |
| Colour | White |
