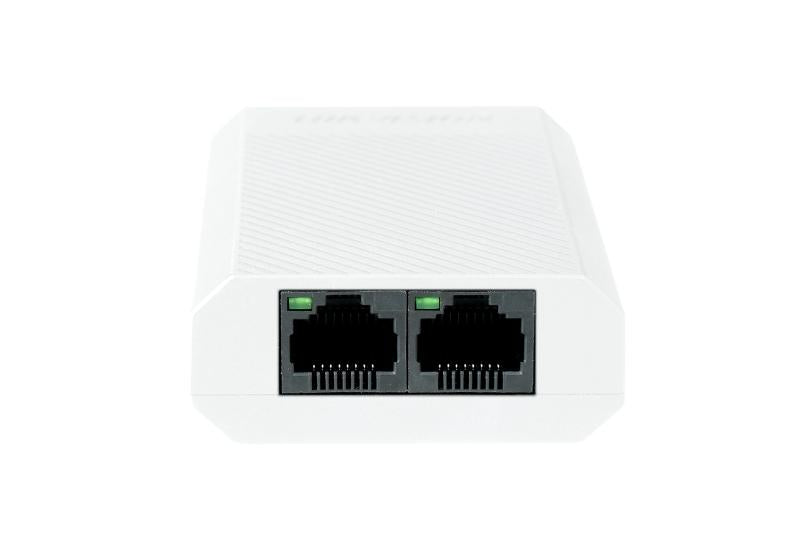

Hikvision DS-3E0503DP-E/R Gigabit PoE Repeater, 1 × PoE In, 2 × PoE Out, 30W PoE Budget
About this product
The Hikvision DS-3E0503DP-E/R is a Gigabit PoE repeater with 1 × Gigabit PoE IN port and 2 × Gigabit PoE OUT ports, compliant with the IEEE 802.3af/at standard. It provides PoE extension for longer transmission and power supply distance, with up to 30 W PoE output power for the whole device, and is plug and play, requiring no configuration.
Key features
- 1 × Gigabit PoE IN port and 2 × Gigabit PoE OUT ports
- Compliant with IEEE 802.3af/at
- Up to 30 W PoE output power for the whole device
- PoE extension for longer transmission and power supply distance
- Plug and play, requiring no configuration
- Desktop installation; plastic shell with fan-free design
- Switching capacity 6 Gbps, packet forwarding rate 4.46 Mpps
- 2 KV surge protection
Frequently asked questions
How many PoE outputs does the Hikvision DS-3E0503DP-E/R have?
2 × Gigabit PoE OUT ports, plus 1 × Gigabit PoE IN port.
How much PoE power does the DS-3E0503DP-E/R deliver?
Up to 30 W PoE output power for the whole device. The PoE power budget is 30W and the max. port power is 30 W.
Does the DS-3E0503DP-E/R need configuring?
No. It is plug and play, requiring no configuration.
Which PoE standards does the DS-3E0503DP-E/R support?
IEEE 802.3af and IEEE 802.3at.
How is the DS-3E0503DP-E/R mounted?
It is desk-mounted (desktop installation), in a plastic, fan-free shell measuring 88.0 mm × 22.0 mm × 58.0 mm.
What operating temperature is the DS-3E0503DP-E/R rated for?
0 °C to 40 °C (32 °F to 104 °F), with operating humidity of 5% to 95% (no condensation).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-3E0503DP-E/R |
| Manufacturer Part Number (MPN) | DS-3E0503DP-E/R |
| Ports | 1 × Gigabit PoE IN port and 2 × Gigabit PoE OUT port |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Port | PoE: Ports 1 to 3 |
| Max. Port Power | 30 W |
| PoE Power Budget | 30W |
| MAC Address Table | 2 K |
| Switching Capacity | 6 Gbps |
| Packet Forwarding Rate | 4.46 Mpps |
| Internal Cache | 1 Mbits |
| Shell | Plastic material, fan-free design |
| Net Weight | 0.058 kg (0.128 lb) |
| Dimensions (W × H × D) | 88.0 mm × 22.0 mm × 58.0 mm (3.46'' × 0.87'' × 2.28'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Max. Power Consumption | 1.9 W |
| Power Consumption In Idle | ≤1.55W |
| Installation Mode | Desk-Mounted |
| Surge Protection | 2 KV |
