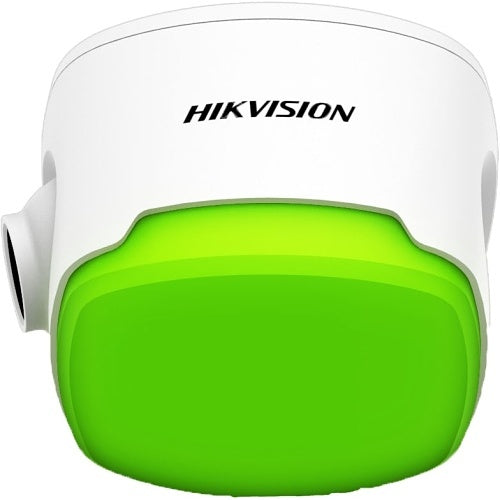

Hikvision DS-TCP140-B(E)(4MM) guidance hd camera, 1MP

Free Delivery

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Hikvision DS-TCP140-B(E)(4MM) is a guidance hd camera from the DS-TCP140-B(E) range.

The DS-TCP140-B(E) series parking camera is applied in the parking guidance and find my car system to detect whether the parking space is occupied or not and recognize the license plate. It is integrated with the parking space status indicator which can indicates red, green, yellow, blue, cyan, and magenta colors. Red indicates the parking space is occupied, green indicates the parking space is available, and blue indicates the parking space is reserved.

The camera can be widely applied in the environment with dark light, such as warehouse, underground garage, bar, garden, etc. to provide HD display.

Key features

  • Built-in high-performance AI chip, supporting ANPR (accuracy ≥ 99.5%), detection of the parking space status (accuracy ≥ 99.99%), and smart analysis of crossing over line, motion detection
  • HD 1.3 MP camera, applied in environment with low illumination such as underground garage
  • 3D Noise reduction to guarantee clean and exquisite image
  • Smart detection of the parking space status, and smart analysis of crossing over line, motion detection
  • Energy-saving LED with high brightness and low consumption
  • Speed recognition in second accuracy to indicate the parking space status in real time and provide accurate available parking space number
  • Network wiring with easy connection, installation, and maintenance
  • ROI encoding
  • Two RJ45 interfaces, supporting connecting cameras in series, and no power cord is needed
  • Dual-stream
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
DS-TCP140-B(E)(4MM)
Product Series
DS-TCP140-B(E)
Product Type
Network Camera
Technical information
Effective resolution
1MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Frame Rate
30fps
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Video Signal Format
PAL
Camera
Image Sensor Type
CMOS
Certifications
Ingress protection
IP54
Display & graphics
Maximum video resolution
1280 x 1024
Environmental conditions
Maximum Operating Temperature
50°C
Minimum Operating Temperature
-20°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1 Second
Minimum Illumination
0.0092lux
Shortest Shutter Speed
1/100000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
4mm
Lens Included
Yes
Maximum Focal Length
4.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Height
104.40mm
Weight
500.00g
Width
120.10mm
Power description
Input Voltage
12-24V DC
Product information
Length
169.80mm
Storage
Storage Type
HDD
Miscellaneous
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
12-24V DC
Weight
500.00g

Specifications

Brand Name Hikvision
Manufacturer Part Number DS-TCP140-B(E)(4MM)
Product Series DS-TCP140-B(E)
Product Type Network Camera

Technical information

Effective resolution 1MP
Field of View Diagonal, Horizontal, Vertical
Lens Type Fixed
Maximum Frame Rate 30fps
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 1280 x 720
Video Signal Format PAL

Camera

Image Sensor Type CMOS

Certifications

Ingress protection IP54

Display & graphics

Maximum video resolution 1280 x 1024

Environmental conditions

Maximum Operating Temperature 50°C
Minimum Operating Temperature -20°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 1 Second
Minimum Illumination 0.0092lux
Shortest Shutter Speed 1/100000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 4mm
Lens Included Yes
Maximum Focal Length 4.00mm

Network & communication

Remote Management Yes

Physical characteristics

Height 104.40mm
Weight 500.00g
Width 120.10mm

Power description

Input Voltage 12-24V DC

Product information

Length 169.80mm

Storage

Storage Type HDD

Miscellaneous

Indoor or outdoor use Indoor, Outdoor

Attributes

Input Voltage 12-24V DC
Weight 500.00g

Hikvision DS-TCP140-B(E)(4MM) guidance hd camera

Hikvision DS-TCP140-B(E)(4MM) guidance hd camera, 1MP

Who this is for

For the installer — this is the guidance hd camera supplied under Hikvision part number DS-TCP140-B(E)(4MM). Specify it by that part number.

The entries in the specification table are the ones held against this part number.

In plain English: this is a guidance hd camera made by Hikvision. The part number DS-TCP140-B(E)(4MM) is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this guidance hd camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact guidance hd camera I have been quoted? Check the manufacturer part number DS-TCP140-B(E)(4MM) against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against DS-TCP140-B(E)(4MM) answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Hikvision DS-TCP140-B(E)(4MM) guidance hd camera
Hikvision

Hikvision DS-TCP140-B(E)(4MM) guidance hd camera, 1MP

£277.81

Please note: this is a non-returnable item (excluding faulty goods)

Hikvision DS-TCP140-B(E)(4MM) is a guidance hd camera from the DS-TCP140-B(E) range.

The DS-TCP140-B(E) series parking camera is applied in the parking guidance and find my car system to detect whether the parking space is occupied or not and recognize the license plate. It is integrated with the parking space status indicator which can indicates red, green, yellow, blue, cyan, and magenta colors. Red indicates the parking space is occupied, green indicates the parking space is available, and blue indicates the parking space is reserved.

The camera can be widely applied in the environment with dark light, such as warehouse, underground garage, bar, garden, etc. to provide HD display.

Key features
