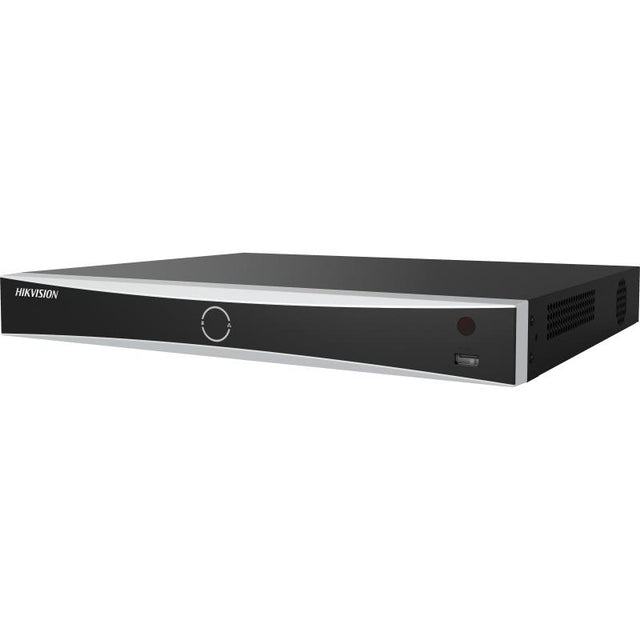

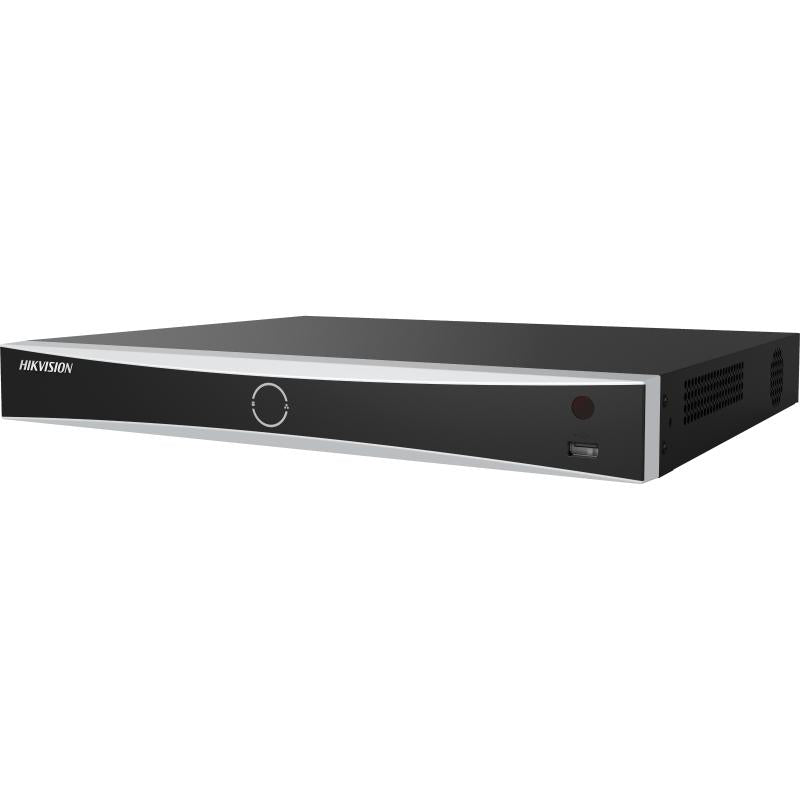

Hikvision DS-7608NXI-I2/8P/VPro I/VPro Series NVR with AcuSeek, 8 Channels, 8 PoE Ports
Free Delivery
Save £105.51
About this product
The Hikvision DS-7608NXI-I2/8P/VPro is an I/VPro Series NVR with AcuSeek for IP CCTV systems, with 8 IP video inputs and 8 PoE interfaces. It supports up to 8-ch AcuSeek and AcuSearch function and H.265+/H.265/H.264+/H.264 video formats, and is a recorder only: no hard drive is included.
Key features
- Up to 8-ch IP camera inputs
- 8 PoE interfaces, IEEE 802.3 af/at, PoE power ≤ 120W
- Up to 8-ch AcuSeek and AcuSearch function
- Up to 8-ch facial recognition for face picture
- Perimeter protection by NVR: 4-ch, 2 MP (H.264/H.265) video analysis
- HDMI output up to 4K (3840 × 2160)/30 Hz, with HDMI/VGA independent output
- 2 SATA interfaces, up to 20 TB capacity for each disk
- Up to 32-ch 1080p decoding capability
Frequently asked questions
How many cameras can the DS-7608NXI-I2/8P/VPro record?
It has 8 IP video inputs (up to 8-ch IP camera inputs).
Does it have built-in PoE?
Yes. It has 8 RJ-45 10/100 Mbps PoE interfaces to IEEE 802.3 af/at, with PoE power ≤ 120W.
Does it come with a hard drive?
No. It is a recorder only, with no hard drive included. It has 2 SATA interfaces, with up to 20 TB capacity for each disk.
What camera resolutions does it support?
Recording resolution runs up to 32 MP. The NVR supports up to 4-ch of >12MP IP video input, all channels for ≤ 12MP.
What does AcuSeek need from the cameras?
If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 300,000 targets/day.
What monitor outputs does it have?
HDMI up to 4K (3840 × 2160)/30 Hz and VGA up to 1920 × 1080/60Hz, as HDMI/VGA independent output.
Technical Details
Specifications
Brand
Hikvision
Model
DS-7608NXI-I2/8P/VPro
Manufacturer Part Number (MPN)
DS-7608NXI-I2/8P/VPro
AI By NVR
Facial recognition,perimeter protection,motion detection 2.0
AI By NVR And Camera
Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek
Perimeter Protection By NVR
4-ch, 2 MP (H.264/H.265) video analysis
Face Picture Library
Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
Face Picture Comparison
8-ch
IP Video Input
8
Incoming Bandwidth
96 Mbps
Outgoing Bandwidth
256 Mbps
HDMI Output
4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1280 × 720/60 Hz
VGA Output
1920 × 1080/60Hz, 1280 × 720/60Hz
Video Output Mode
HDMI/VGA independent output
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Decoding Format
H.265, H.265+, H.264, H.264+
Recording Resolution
32 MP/24 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback
16-ch
Live View Window Division
1/4/6/8/9
Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Remote Connection
128
API
ONVIF (profile S/G); SDK; ISAPI
PoE Interface
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE Power
≤ 120W
PoE Standard
IEEE 802.3 af/at
SATA
2 SATA interfaces
Capacity
Up to 20 TB capacity for each disk
Alarm In/Out
4/1
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Power Supply
≤ 120 W
Consumption
≤ 50W(Without HDD and POE)
Working Temperature
-10℃～＋55℃
Working Humidity
10％～90％
Chassis
1U
Dimension (W × D × H)
384 × 371 × 52 mm
Obtained Certification
CE, CB, REACH, WEEE, UKCA, RCM,IC,LOA,KC
Cyber Security
EN 303645
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-7608NXI-I2/8P/VPro |
| Manufacturer Part Number (MPN) | DS-7608NXI-I2/8P/VPro |
| AI By NVR | Facial recognition,perimeter protection,motion detection 2.0 |
| AI By NVR And Camera | Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek |
| Perimeter Protection By NVR | 4-ch, 2 MP (H.264/H.265) video analysis |
| Face Picture Library | Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB) |
| Face Picture Comparison | 8-ch |
| IP Video Input | 8 |
| Incoming Bandwidth | 96 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI Output | 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1280 × 720/60 Hz |
| VGA Output | 1920 × 1080/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA independent output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Decoding Format | H.265, H.265+, H.264, H.264+ |
| Recording Resolution | 32 MP/24 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Live View Window Division | 1/4/6/8/9 |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Remote Connection | 128 |
| API | ONVIF (profile S/G); SDK; ISAPI |
| PoE Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE Power | ≤ 120W |
| PoE Standard | IEEE 802.3 af/at |
| SATA | 2 SATA interfaces |
| Capacity | Up to 20 TB capacity for each disk |
| Alarm In/Out | 4/1 |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Power Supply | ≤ 120 W |
| Consumption | ≤ 50W(Without HDD and POE) |
| Working Temperature | -10℃～＋55℃ |
| Working Humidity | 10％～90％ |
| Chassis | 1U |
| Dimension (W × D × H) | 384 × 371 × 52 mm |
| Obtained Certification | CE, CB, REACH, WEEE, UKCA, RCM,IC,LOA,KC |
| Cyber Security | EN 303645 |
