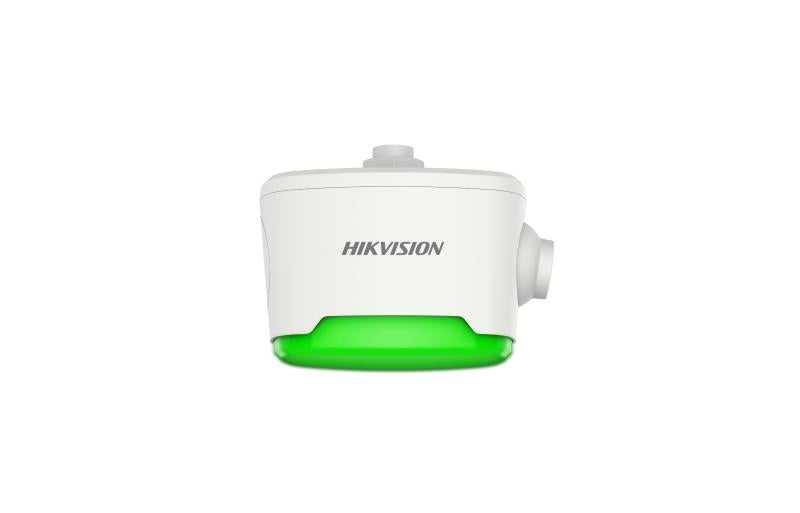

Hikvision DS-TCP440-B(E)(2.8MM) iBeacon Guidance Camera, 4MP, 2.8mm
About this product
The Hikvision DS-TCP440-B(E)(2.8MM) is a 4 MP iBeacon guidance camera for parking guidance and find my car systems, detecting whether a parking space is occupied and recognising the licence plate. It is applied in environments with low illumination such as underground garages, with a built-in algorithm supporting ANPR (accuracy ≥ 99.5%) and parking space status detection (accuracy ≥ 99.99%).
Key features
- 4 MP resolution, max. resolution 2560 × 1440
- 2.8 mm fixed lens with F2.0 aperture
- ANPR with accuracy ≥ 99.5%
- Parking space status detection with accuracy ≥ 99.99%, for a maximum of 3 parking spaces
- Two RJ45 interfaces for connecting cameras in series, with no power cord needed
- Powered by Hikvision PoE, or 12 to 24 VDC wide-range voltage; consumption max. 6.5 W
- 140db WDR and 3D noise reduction
- H.265/H.264/MJPEG video compression
Frequently asked questions
How is the DS-TCP440-B(E)(2.8MM) powered?
It runs on Hikvision PoE, or 12 to 24 VDC wide-range voltage, with consumption of max. 6.5 W.
How many parking spaces can one camera detect?
The number of detected parking spaces is max 3.
Does it read number plates?
Yes. The built-in algorithm supports ANPR with accuracy ≥ 99.5%, and the UK is in the ANPR supported country/region list.
Can several cameras share one cable run?
Two RJ45 interfaces support connecting cameras in series, and no power cord is needed.
What do the indicator colours mean?
Red indicates the parking space is occupied, green indicates it is free, and blue indicates it is reserved.
What lens does this version have?
This version has a 2.8 mm fixed-focus lens with an F2.0 aperture.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-TCP440-B(E)(2.8MM) |
| Manufacturer Part Number (MPN) | DS-TCP440-B(E)(2.8MM) |
| Resolution | 4 MP |
| Max. Resolution | 2560 × 1440 |
| Sensor Type | 1/3" Progressive Scan CMOS |
| Lens Type | 2.8 mm |
| Aperture (2.8 mm) | F2.0 |
| Focus | Fixed |
| Shutter | 1 to 1/100,000 s |
| WDR | 140db |
| Defog | supported |
| Day/Night Switch | Auto/Scheduled/Manual |
| Frame Rate | 25fps |
| Video Compression | H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| ROI | 8 regions respectively for main stream and sub-stream, 6 levels for each region |
| Image Format | JPEG |
| Smart Functions | Built-in AI deep-learning algorithm, supporting ANPR and parking space detection |
| Number Of Detected Parking Space | Max 3 |
| Network Storage | NAS (NFS, SMB/CIFS) |
| API | ONVIF(PROFILE S,PROFILE G), ISAPI, SDK |
| Client | HikCentral,SDKdemo,DS-TPM400 |
| Indicator Interface | 3*LED lamp interface |
| Power Supply | Hikvision PoE, or 12 to 24 VDC wide-range voltage |
| Consumption | Max. 6.5 W |
| Protection Level | IP54 |
| Dimensions | 170 × 121 × 105 mm (6.7 × 4.8 × 4.2 inch) |
