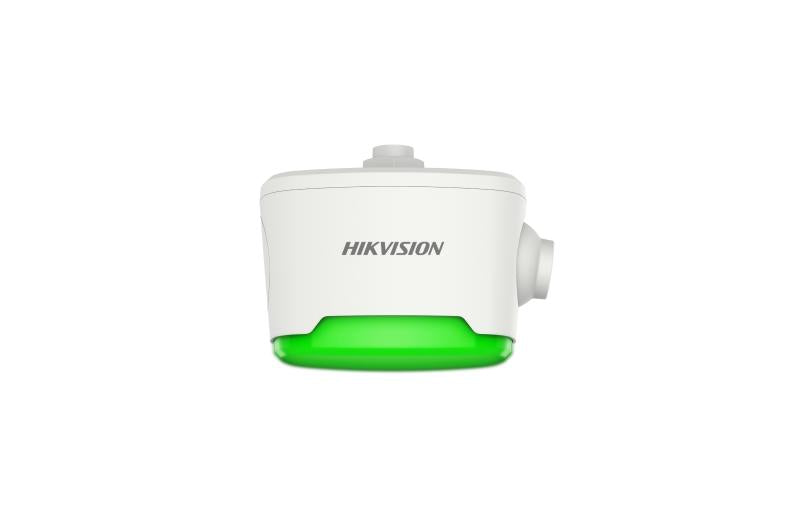

Hikvision DS-TCP440-B(E)(4MM) iBeacon Parking Guidance Camera, 4MP, 4mm
About this product
The Hikvision DS-TCP440-B(E)(4MM) is a 4 MP iBeacon guidance camera for parking guidance and find my car systems, with a 4 mm lens. It detects whether each parking space is occupied, recognises the licence plate with ANPR (accuracy ≥ 99.5%) and shows the parking space status on its indicator in real time.
Key features
- 4 MP camera with a 1/3" Progressive Scan CMOS sensor and 2560 × 1440 max. resolution
- ANPR (accuracy ≥ 99.5%) and parking space status detection (accuracy ≥ 99.99%)
- Number of detected parking spaces: Max 3
- Indicator shows red, green, yellow, blue, cyan, and magenta colors; red indicates occupied, green indicates free, blue indicates reserved
- Up to 3 external indicators can be connected in separation mode (3*LED lamp interface)
- Two RJ45 interfaces, supporting connecting cameras in series, with no power cord needed
- Hikvision PoE, or 12 to 24 VDC wide-range voltage, Max. 6.5 W consumption
- H.265/H.264/MJPEG video compression with 140db WDR and 3D noise reduction
Frequently asked questions
How is the DS-TCP440-B(E)(4MM) powered?
By Hikvision PoE, or 12 to 24 VDC wide-range voltage, with consumption of Max. 6.5 W. Its two RJ45 interfaces support connecting cameras in series, and no power cord is needed.
How many parking spaces can one camera monitor?
The number of detected parking spaces is Max 3.
What do the indicator colours mean?
Red indicates the parking space is occupied, green indicates it is free, and blue indicates it is reserved. In integrated mode the indicator can show red, green, yellow, blue, cyan, and magenta colors.
How accurate is the plate and space detection?
ANPR accuracy is ≥ 99.5% and parking space status detection accuracy is ≥ 99.99%.
Can extra indicators be added?
Yes. In separation mode, up to 3 external indicators can be connected, via the 3*LED lamp interface.
Which software and protocols does it work with?
Hikvision lists HikCentral as a client, and the camera supports ONVIF(PROFILE S,PROFILE G), ISAPI and SDK.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-TCP440-B(E)(4MM) |
| Manufacturer Part Number (MPN) | DS-TCP440-B(E)(4MM) |
| Lens Type | 4 mm |
| Aperture (4 mm) | F2.0 |
| Focus | Fixed |
| Sensor Type | 1/3" Progressive Scan CMOS |
| Resolution | 4 MP |
| Max. Resolution | 2560 × 1440 |
| Shutter | 1 to 1/100,000 s |
| WDR | 140db |
| Defog | supported |
| Day/Night Switch | Auto/Scheduled/Manual |
| Video Compression | H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| ROI | 8 regions respectively for main stream and sub-stream, 6 levels for each region |
| Smart Functions | Built-in AI deep-learning algorithm, supporting ANPR and parking space detection |
| Number Of Detected Parking Space | Max 3 |
| Indicator Interface | 3*LED lamp interface |
| Angle Adjustment | Pan: -30° to 30°, Tilt: 0° to 30° |
| API | ONVIF(PROFILE S,PROFILE G), ISAPI, SDK |
| Client | HikCentral, SDKdemo, DS-TPM400 |
| Power Supply | Hikvision PoE, or 12 to 24 VDC wide-range voltage |
| Consumption | Max. 6.5 W |
| Protection Level | IP54 |
| Dimensions | 170 × 121 × 105 mm (6.7 × 4.8 × 4.2 inch) |
