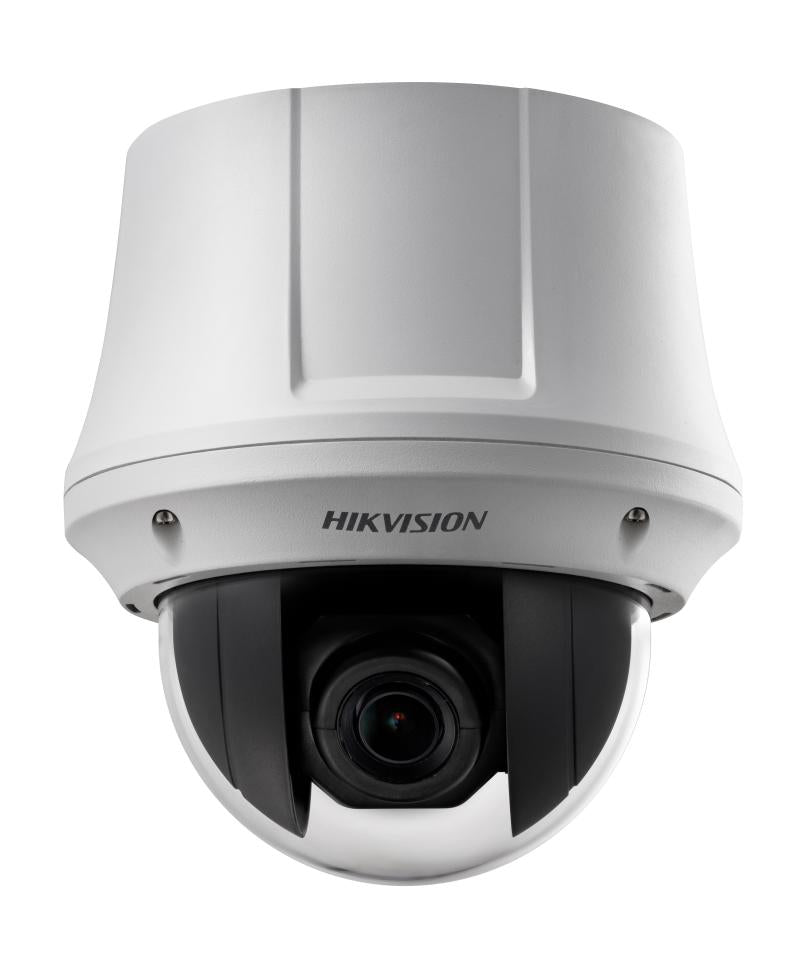

Hikvision DS-2DE4425WG1-E3(B) In-Ceiling Network Speed Dome, 4MP, 25x Optical Zoom
Free Delivery
Save £121.61
About this product
The Hikvision DS-2DE4425WG1-E3(B) is a 4 MP, 25X Powered by DarkFighter in-ceiling network speed dome. It is for IP CCTV systems, with 25 × optical zoom for closer viewing of subjects in expansive areas and pan and tilt to monitor zones of interest.
Key features
- 4 MP, 2560 × 1440 maximum resolution
- 25 × optical and 16 × digital zoom, 4.8 mm to 120 mm
- Powered by DarkFighter: Color: 0.005 Lux @ (F1.6, AGC ON)
- 360° pan, 0° to 90° tilt and 300 presets
- 12 VDC & PoE (802.3at) power
- 120 dB WDR with HLC, BLC and 3D DNR
- Regional people counting with up to 8 detection regions
- microSD/SDHC/SDXC card storage up to 256 GB
Frequently asked questions
How much zoom does the DS-2DE4425WG1-E3(B) have?
25 × optical and 16 × digital zoom, with a 4.8 mm to 120 mm focal length.
Can it run on PoE?
Yes. It takes 12 VDC, 2.0 A, max. 24 W, or PoE (802.3 at).
How many presets does it support?
300 presets, plus 8 patrols with up to 32 presets for each patrol and 4 pattern scans.
What is the pan and tilt range?
360° pan and 0° to 90° tilt, with pan speed configurable from 0.1° to 160°/s.
What storage does it support?
A built-in memory card slot for a microSD/SDHC/SDXC card up to 256 GB, plus NAS (NFS, SMB/CIFS).
Does it work with Hikvision NVR search features?
Yes. It is compatible with the AcuSeek and AcuSearch technologies of NVR for combined use.
Technical Details
Specifications
Brand
Hikvision
Model
DS-2DE4425WG1-E3(B)
Manufacturer Part Number (MPN)
DS-2DE4425WG1-E3(B)
Image Sensor
1/2.8" progressive scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON)
Shutter Speed
1 s to 1/30,000 s
Zoom
25 × optical, 16 × digital
Focal Length
4.8 mm to 120 mm
FOV
Horizontal field of view: 55° to 2.4°, vertical field of view: 33° to 1.4°, diagonal field of view: 61.5° to 2.8°
Focus
Auto, semi-auto, manual
Aperture
Max. F1.6
Zoom Speed
Approx. 3.6 s
Movement Range (Pan)
360°
Movement Range (Tilt)
0° to 90°
Pan Speed
Pan speed: configurable from 0.1° to 160°/s; preset speed: 160°/s
Presets
300
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans
Power-Off Memory
Yes
Main Stream (50 Hz)
25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Video Compression (main stream)
H.265+/H.265/H.264+/H.264
Video Bit Rate
32 Kbps to 16 Mbps
WDR
120 dB
SNR
＞52 dB
Defog
Digital defog
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
24 programmable polygon privacy masks, mask color or mosaic configurable
VR View
360° Real Scene Stitched Panoramic Image
Simultaneous Live View
Up to 20 channels
API
Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Client
iVMS-4200, HikCentral Pro, Hik-Connect
Network Storage
NAS (NFS, SMB/CIFS)
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm
1 alarm input, 1 alarm output
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Power
12 VDC, 2.0 A, max. 24 W; PoE (802.3 at)
Dimension
Ø 165 mm × 179.5 mm (Ø 6.5" × 7.1")
Weight
Approx. 2 kg (4.41 lb.)
Material
ADC 12, PC+ABS, PC/PMMA
Operating temperature
-10 °C to 50 °C
Operating humidity
Humidity 90% or less (non-condensing)
Protection
TVS 6000V lightning protection, surge protection and voltage transient protection
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2DE4425WG1-E3(B) |
| Manufacturer Part Number (MPN) | DS-2DE4425WG1-E3(B) |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1 s to 1/30,000 s |
| Zoom | 25 × optical, 16 × digital |
| Focal Length | 4.8 mm to 120 mm |
| FOV | Horizontal field of view: 55° to 2.4°, vertical field of view: 33° to 1.4°, diagonal field of view: 61.5° to 2.8° |
| Focus | Auto, semi-auto, manual |
| Aperture | Max. F1.6 |
| Zoom Speed | Approx. 3.6 s |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | 0° to 90° |
| Pan Speed | Pan speed: configurable from 0.1° to 160°/s; preset speed: 160°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Power-Off Memory | Yes |
| Main Stream (50 Hz) | 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Video Compression (main stream) | H.265+/H.265/H.264+/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| WDR | 120 dB |
| SNR | ＞52 dB |
| Defog | Digital defog |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| VR View | 360° Real Scene Stitched Panoramic Image |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 1 alarm input, 1 alarm output |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
| Power | 12 VDC, 2.0 A, max. 24 W; PoE (802.3 at) |
| Dimension | Ø 165 mm × 179.5 mm (Ø 6.5" × 7.1") |
| Weight | Approx. 2 kg (4.41 lb.) |
| Material | ADC 12, PC+ABS, PC/PMMA |
| Operating temperature | -10 °C to 50 °C |
| Operating humidity | Humidity 90% or less (non-condensing) |
| Protection | TVS 6000V lightning protection, surge protection and voltage transient protection |
