Hikvision DS-KH8381-WTE1 8 Series Indoor Station, 7-inch Touch Screen, PoE
About this product

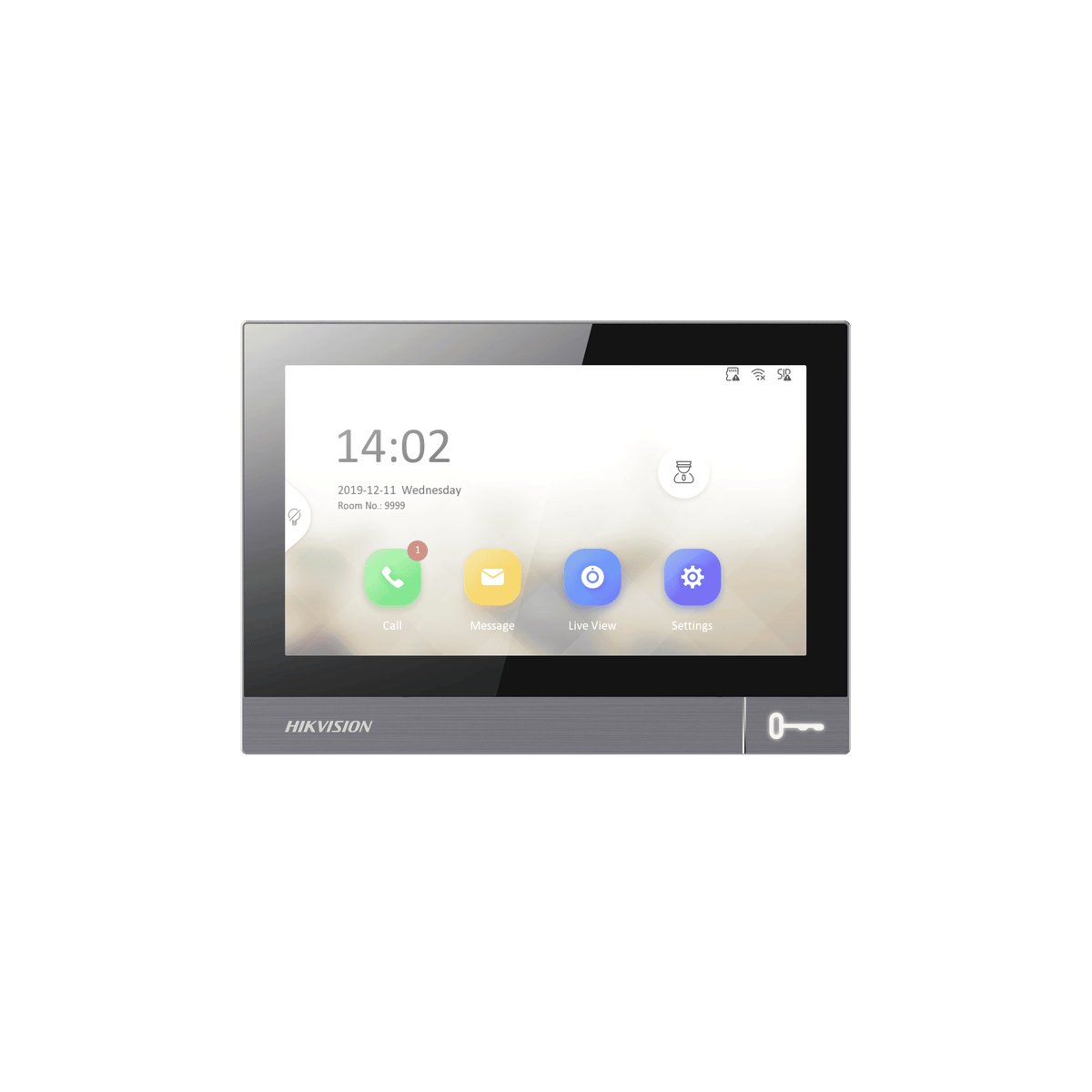

The Hikvision DS-KH8381-WTE1 is an 8 Series indoor station with a 7-inch IPS touch screen (1024 × 600 resolution) and one physical button for opening the door. With the Hik-Connect app, users can receive calls, open the door and live view remotely.
Key features
- 7-inch IPS capacitive touch screen, 1024 × 600 resolution
- Standard IEEE802.3at PoE power supply that can also power the lock
- Hik-Connect app: receive calls, open the door and live view remotely
- Links up to 16 indoor extensions and 16 network cameras
- WiFi 802.11b/g/n plus 1 RJ-45 10/100 Mbps network interface
- Built-in omnidirectional microphone and loudspeaker with noise suppression and echo cancellation
- Elevator access control
- 8 alarm inputs, 4 relays, RS-485 and a TF card slot (up to 128 G)
Frequently asked questions
How is the DS-KH8381-WTE1 powered?
It runs on standard IEEE802.3at PoE or 12 VDC, 1.5 A, with power consumption of ≤ 12 W. The PoE supply can also power the lock.
Can calls be answered from a phone?
Yes. Through the Hik-Connect app users can receive calls, open the door and live view remotely.
Does it connect over Wi-Fi?
Yes. It supports WiFi 802.11b/g/n and also has 1 RJ-45 10/100 Mbps network interface.
How many cameras and indoor extensions can it link?
It links up to 16 network cameras and supports up to 16 indoor extensions linkage.
How can it be mounted?
It supports flush mounting, surface mounting and table mounting.
Does it take a memory card?
Yes. It supports a TF card up to 128 G; with a TF card inserted it stores 200 captured pictures and 200 alarm records.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-KH8381-WTE1 |
| Manufacturer Part Number (MPN) | DS-KH8381-WTE1 |
| Product type | 8 Series Indoor Station |
| Operation system | Embedded Linux operation system |
| Screen size | 7-inch |
| Operation method | Capacitive touch screen |
| Screen type | Colorful IPS |
| Screen resolution | 1024*600 |
| Video compression standard | H.265；H.264 |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Message capacity | TF card inserted: 200 captured pictures, 200 alarm records |
| Notice capacity | 200 |
| Linked network camera capacity | 16 |
| Linked indoor extensions capacity | 16 |
| Network protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | WiFi 802.11b/g/n |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| Alarm input | 8 |
| RS-485 | 1 |
| TF card | Support TF card, up to 128 G |
| Lock control | 4 relays, Max. 30 VDC 1A |
| Relay | 4 |
| Power supply output | Max. 12 VDC 0.5 A |
| Button | 1 physical button(s) |
| Installation | Flush mounting, surface mounting, table mounting |
| Power supply | IEEE802.3at, Standard PoE, 12 VDC, 1.5 A |
| Power consumption | ≤ 12 W |
| Application environment | Indoor |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Material | Die-cast integrated aluminum alloy casing |
| Dimension (W × H × D) | 180.4 mm × 128.4 mm × 21.8 mm (7.10" × 5.06" × 0.86") |
| Weight | Without package: 412.2 g (0.909 lb) |
