Hikvision DS-2TD2528T-7/Q(C) IP bullet camera, 2688 x 1520
About this product
Please note: this is a non-returnable item (excluding faulty goods)

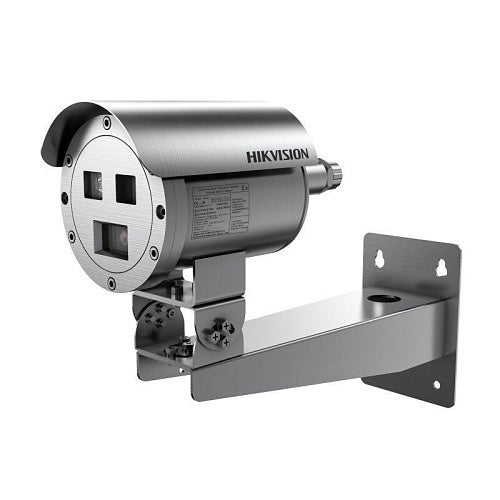

Hikvision DS-2TD2528T-7/Q(C) is an IP bullet camera.
Introducing the Hikvision DS-2TD2528T-7/Q(C), a cutting-edge explosion-proof optical and thermal IP bullet camera designed for specialized industrial applications. With a 6.9mm focal length, this camera delivers exceptional image clarity and detail, even in challenging environments. Its advanced Wide Dynamic Range (WDR) technology, boasting 120 dB, ensures optimal performance in varying lighting conditions.
Crafted from durable stainless steel, this camera is built to withstand harsh conditions while providing reliable surveillance. Elevate your security measures with this robust and efficient camera.
Key features
- High sensitivity sensor with 256 x 192 resolution
- NETD is less than 40 mk (at 25°C, F#=1.0)
- Supports contrast adjustment
- Leading thermal image processing technology; Adaptive AGC, DDE, 3D DNR
- Up to 17 palettes of adjustable color
- Powerful perimeter protection functions, based on intelligent algorithm; Line crossing, intrusion, region entrance and exit
- 316L Stainless Steel enclosure, protecting camera in corrosive environments and extending reliability and longevity far beyond standard cameras
- ATEX, IECEx, NEMA 4X Certificated
-
Download
- DS-2TD2528T-7/Q(C) — User Manual
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2TD2528T-7/Q(C) |
| Product Type | Bullet Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Field of View | Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 30fps |
| Night Vision | Yes |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|---|
| Night Vision Distance | 30.00m |
Certifications
| Ingress protection | IP68 |
|---|
Display & graphics
| Maximum video resolution | 2688 x 1520 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 1/100000s |
|---|---|
| Minimum Illumination | 0.0500lux |
| Shortest Shutter Speed | 1s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 4mm |
|---|---|
| Lens Included | Yes |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Form Factor | Bullet |
|---|---|
| Weight | 5.85kg |
Power description
| Input Voltage | 100-240V AC |
|---|
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Indoor or outdoor use | Indoor, Outdoor |
|---|
Attributes
| Input Voltage | 100-240V AC |
|---|---|
| Weight | 5.85kg |
