Hikvision DS-2TD2537T-4/Q(C) IP bullet camera, 2688 x 1520
About this product
Please note: this is a non-returnable item (excluding faulty goods)

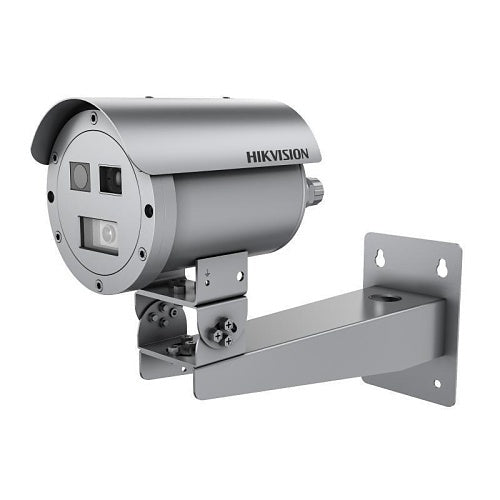

Hikvision DS-2TD2537T-4/Q(C) is an IP bullet camera.
Introducing the Hikvision DS-2TD2537T-4/Q(C), a cutting-edge explosion-proof optical and thermal IP bullet camera designed for specialized industrial applications. With a 4.4mm focal length and an impressive Wide Dynamic Range of 120 dB, this camera ensures exceptional image clarity in challenging lighting conditions. Crafted from durable stainless steel, it is built to withstand harsh environments while delivering reliable performance.
Ideal for security professionals seeking advanced surveillance solutions, this camera combines innovation with resilience.
Key features
- High sensitivity sensor with 384 x 288 resolution
- NETD is less than 35 mk (at 25°C, F#=1.0)
- Supports contrast adjustment
- Leading thermal image processing technology, Adaptive AGC, DDE, 3D DNR
- Up to 17 palettes of adjustable color
- Powerful perimeter protection functions, based on deep learning algorithm, Line crossing, intrusion, region entrance and exit
- 304 Stainless Steel enclosure, protecting camera in corrosive environments and extending reliability and longevity far beyond standard cameras
- ATEX, IECEx, NEMA 4X Certificated
-
Download
- DS-2TD2537T-4/Q(C) — User Manual
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Physical characteristics
Power description
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2TD2537T-4/Q(C) |
| Product Type | Bullet Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Field of View | Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 30fps |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|---|
| Night Vision Distance | 30.00m |
Certifications
| Ingress protection | IP68 |
|---|
Display & graphics
| Maximum video resolution | 2688 x 1520 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/100000s |
|---|---|
| Minimum Illumination | 0.0500lux |
| Shortest Shutter Speed | 1s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2mm |
|---|
Physical characteristics
| Durability | Corrosion Resistant |
|---|---|
| Form Factor | Bullet |
| Weight | 6.50kg |
Power description
| Input Voltage | 100-240V AC |
|---|
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Indoor or outdoor use | Indoor, Outdoor |
|---|
Attributes
| Input Voltage | 100-240V AC |
|---|---|
| Weight | 6.50kg |
Hikvision DS-2TD2537T-4/Q(C) IP bullet camera, 2688 x 1520
