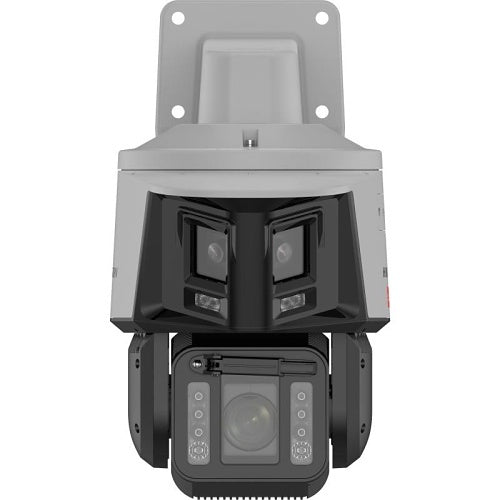

Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) IP camera, 4MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) is an IP camera from the Anti-corrosion range.
Hikvision always follows security by design principle and has adopted many methods of security technologies into our product development lifecycle, including terminal security, data security, application security, network security, and protection. In the meantime, the security technologies used by Hikvision are all in compliance with local applicable laws and safety regulations. These security measures could enhance product's cyber security defense capability and protect your devices as well as your data from malicious cyber attacks.
Key features
- Supports deep learning functions-Acusense(human and vehicle classification), face capture, license plate recognition
- High quality imaging with 6MP resolution for bullet channel, 8MP for PTZ channel
- 24/7 Colorful imaging and excellent low-light performance with DarkFighter technology
- Panoramic channel tilt adjustable from 12° to 24°
- Secures an expansive area with 48x Optical zoom and 16x digital zoom
- Expansive night view with up to 30m white light distance and 150m IR distance
- Built-in Gyroscope for better EIS performance in PTZ channel
- Audio visual alarm; The white flashing light and audible warning can be triggered by certain events
Specifications
Technical information
Camera
Certifications
Environmental conditions
Exposure
Interfaces/ports
Lens
Physical characteristics
Power description
Video
Attributes
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2ST5C432MWG-EW/26(PA)(F0) |
| Product Series | Anti-corrosion |
| Product Type | Panoramic Camera |
Technical information
| Aperture | f/1.6 |
|---|---|
| Effective resolution | 4MP |
| Maximum Frame Rate | 30fps |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 32.0x |
| Power Consumption | 60.0000W |
| Protocols | DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, RTP, RTSP, SNMP, UDP |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP67 |
|---|
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1s |
|---|---|
| Minimum Illumination | 0.0001lux |
| Shortest Shutter Speed | 1/30000s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8mm |
|---|
Physical characteristics
| Material | Glass Fiber |
|---|---|
| Weight | 5.40kg |
Power description
| Input Voltage | 12V DC |
|---|
Video
| Maximum Resolution | 2688 x 1520 |
|---|
Attributes
| Environmental status | Yes |
|---|---|
| Input Voltage | 12V DC |
| Weight | 5.40kg |
