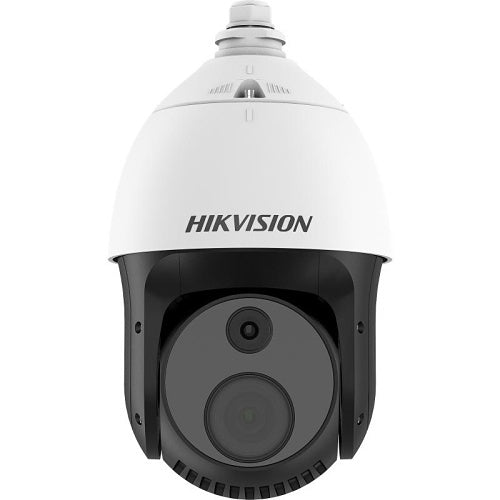

Hikvision DS-2TD4228T-7/S2 IP dome camera, 4MP

Free Delivery

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Hikvision DS-2TD4228T-7/S2 is an IP dome camera from the Bi-spectrum Thermography Speed Dome Series range.

Hikvision DS-2TD4228T-7/S2 Thermal & Optical Bi-spectrum Network Speed Dome is applied tomanufacture process supervision of pyrophoric materials in factories, electric substation, and hydropowerstation. The accurate temperature measurement system sends you alarms to protect you from propertyloss.

Key features

  • Perimeter Protection function: line crossing, intrusion, region entrance and exit
  • Fire detection algorithm
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
DS-2TD4228T-7/S2
Product Series
Bi-spectrum Thermography Speed Dome Series
Product Type
Dome Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Horizontal, Vertical
Maximum Aperture
f/1
Maximum Frame Rate
30fps
Minimum Focal Length
4.80mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
32.0x
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
100.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
2688 x 1520
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-30°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
1/100000 Second
Minimum Illumination
0.0100lux
Shortest Shutter Speed
1 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
4.8-153mm
Lens Included
Yes
Maximum Focal Length
153.00mm
Physical characteristics
Colour
White
Form Factor
Dome
Height
163.00mm
Weight
3.90kg
Width
185.00mm
Power description
Input Voltage
24V AC
Product information
Diameter
185.00mm
Length
305.00mm
Storage
Storage Type
SD Card
Attributes
Input Voltage
24V AC
Weight
3.90kg

Specifications

Brand Name Hikvision
Manufacturer Part Number DS-2TD4228T-7/S2
Product Series Bi-spectrum Thermography Speed Dome Series
Product Type Dome Camera

Technical information

Connectivity Technology Wired
Effective resolution 4MP
Field of View Horizontal, Vertical
Maximum Aperture f/1
Maximum Frame Rate 30fps
Minimum Focal Length 4.80mm
Night Vision Yes
Night Vision Type Infrared (IR)
Optical Zoom 32.0x
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 100.00m

Certifications

Ingress protection IP66

Display & graphics

Maximum video resolution 2688 x 1520

Environmental conditions

Maximum Operating Temperature 60°C
Minimum Operating Temperature -30°C
Operating Humidity 90%

Exposure

Longest Shutter Speed 1/100000 Second
Minimum Illumination 0.0100lux
Shortest Shutter Speed 1 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 4.8-153mm
Lens Included Yes
Maximum Focal Length 153.00mm

Physical characteristics

Colour White
Form Factor Dome
Height 163.00mm
Weight 3.90kg
Width 185.00mm

Power description

Input Voltage 24V AC

Product information

Diameter 185.00mm
Length 305.00mm

Storage

Storage Type SD Card

Attributes

Input Voltage 24V AC
Weight 3.90kg

Hikvision DS-2TD4228T-7/S2 IP dome camera

Hikvision DS-2TD4228T-7/S2 IP dome camera, 4MP

Who this is for

For the installer — this is the IP dome camera supplied under Hikvision part number DS-2TD4228T-7/S2. Specify it by that part number.

In plain English: this is an IP dome camera made by Hikvision. The part number DS-2TD4228T-7/S2 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this IP dome camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact IP dome camera I have been quoted? Check the manufacturer part number DS-2TD4228T-7/S2 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.
