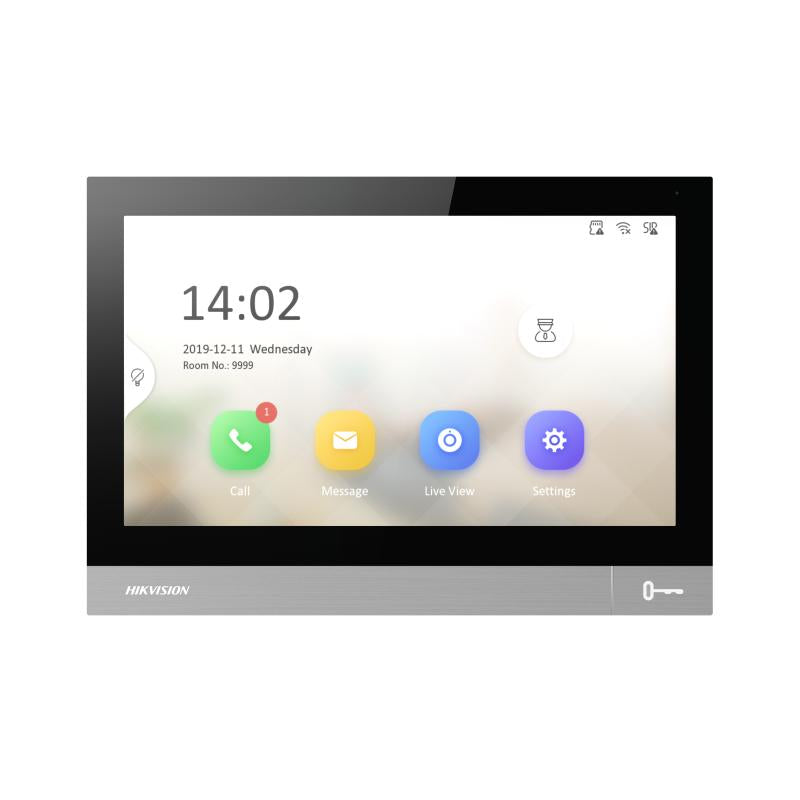

Hikvision DS-KH8560-WTE1 IP Indoor Station, 1024 × 600 IPS Touch Screen, PoE & Wi-Fi
About this product
The Hikvision DS-KH8560-WTE1 is an IP indoor station with a 1024 × 600 colorful IPS capacitive touch screen, giving live view of the door station and cameras in public areas. With Hik-Connect APP mobile control, users can receive calls, open the door and live view remotely.
Key features
- Colorful IPS capacitive touch screen, 1024 × 600 resolution
- Hik-Connect APP mobile control: receive calls, open the door and live view remotely
- Live view of the door station and cameras in public areas
- Voice message recording when calls are unanswered
- Elevator access control
- Easy wizard for quick set up on the touch screen without a PC
- Standard PoE (IEEE 802.3af) or 12 VDC power, plus WiFi 802.11b/g/n
Frequently asked questions
Can calls be answered from a phone with the DS-KH8560-WTE1?
Yes. With Hik-Connect APP mobile control you can receive calls, open the door and live view remotely.
How is the indoor station powered?
By IEEE 802.3af standard PoE or 12 VDC, with power consumption of ≤ 12 W.
Does it support Wi-Fi?
Yes, WiFi 802.11b/g/n, as well as 1 RJ-45 10/100Mbps self-adaptive network interface.
How many cameras and door stations can it link to?
Up to 16 network cameras, 16 indoor extensions and 17 doorphones.
What happens if nobody answers a call?
The station records a voice message when calls are unanswered.
How is it mounted?
It is designed for surface mounting in an indoor application environment.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-KH8560-WTE1 |
| Manufacturer Part Number (MPN) | DS-KH8560-WTE1 |
| Operation System | Embedded Linux operation system |
| Screen Type | Colorful IPS screen |
| Operation Method | Capacitive touch screen |
| Screen Resolution | 1024 × 600 |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Output | 1 built-in loudspeaker |
| Audio Compression Standard | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
| Audio Quality | Noise suppression and echo cancellation |
| Message Capacity (TF card inserted) | 200 captured pictures, 200 alarm records |
| Notice Capacity | 200 |
| Linked Network Camera Capacity | 16 |
| Linked Indoor Extensions Capacity | 16 |
| Linked Doorphone Capacity | 17 |
| Network Protocol | TCP/IP, RTSP, SIP, IPv6, ONVIF |
| Wi-Fi | WiFi 802.11b/g/n |
| Network Interface | 1 RJ-45 10/100Mbps self-adaptive |
| Alarm Input | 8 |
| RS-485 | 1 |
| Relay | 2 relays, Max. 30VDC 0.3A |
| TF Card | Support TF card, up to 128 GB |
| Power Supply Output | Max. 12VDC 0.2 A (Only when powered by PoE) |
| Power Supply | IEEE 802.3af, Standard PoE, 12 VDC |
| Power Consumption | ≤ 12 W |
| Installation | Surface mounting |
| Application Environment | Indoor |
| Material | Plastic casing |
| Dimension (W × H × D) | 272.7 mm × 177.1 mm × 21.62 mm |
| Weight | Without package: 490 g |
| Working Temperature | -10 °C to 50 °C |
| Working Humidity | 10% to 90% (non-condensing) |
