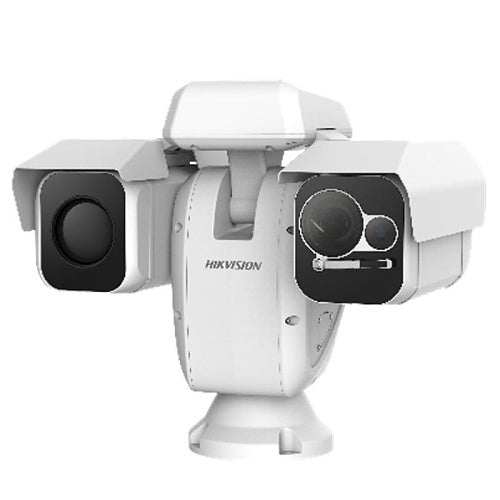

Hikvision DS-2TD6237T-25H4L/W IP positioning system, 4MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hikvision DS-2TD6237T-25H4L/W is an IP positioning system.
Hikvision DS-2TD6237T-25H4L/W Thermographic Thermal and Optical Bi-spectrum Network Positioning System equipped with built-in GPU which supports intelligent perimeter protection algorithm, can realize high-precision VCA detection and realtime alarm. It is applied to fire-prevention purposes in scenes such as transformer substation, recycling center, gas station, and factory. The pre-alarm system helps you discover unexpected events immediately and protects your property
Key features
- Perimeter protection function, based on deep intelligent algorithm: line crossing, intrusion, region entrance and exit
- Temperature exception alarm for fire prevention
- Fire detection smoke detection algorithm
- 384 x 288 resolution 17um, VOx UFPA, NETD ≤ 35 mK (25 deg C, F# = 1.0)
- Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
- Thermal channel supports EIS, conflicted with intelligent function
-
Download
- DS-2TD6237T-25H4L/W — Product Manual
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
DS-2TD6237T-25H4L/W
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/1
Maximum Frame Rate
50fps
Minimum Focal Length
6.00mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
40.0x
Video Formats
H.264 / AVC, H.264+, H.265 / HEVC, H.265+, MJPEG
Video Resolution
2688 x 1520
Video Signal Format
NTSC, PAL
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
200.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
2688 x 1520
Environmental conditions
Maximum Operating Temperature
65°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1.1 s
Minimum Illumination
0.0001lux
Shortest Shutter Speed
1/30000 s
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
25mm, 6-240mm
Maximum Focal Length
240.00mm
Maximum Thermal Focal Length
25.00mm
Minimum Aperture
f/1
Network & communication
Remote Management
Yes
Physical characteristics
Depth
450.30mm
Durability
Weather Resistant
Form Factor
Optical, Thermal
Weight
20000.00g
Width
337.60mm
Power description
Input Voltage
36V DC
Product information
Length
486.10mm
Storage
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Miscellaneous
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
36V DC
Weight
20000.00g
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2TD6237T-25H4L/W |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 50fps |
| Minimum Focal Length | 6.00mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 40.0x |
| Video Formats | H.264 / AVC, H.264+, H.265 / HEVC, H.265+, MJPEG |
| Video Resolution | 2688 x 1520 |
| Video Signal Format | NTSC, PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 200.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2688 x 1520 |
|---|
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1.1 s |
|---|---|
| Minimum Illumination | 0.0001lux |
| Shortest Shutter Speed | 1/30000 s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 25mm, 6-240mm |
|---|---|
| Maximum Focal Length | 240.00mm |
| Maximum Thermal Focal Length | 25.00mm |
| Minimum Aperture | f/1 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Depth | 450.30mm |
|---|---|
| Durability | Weather Resistant |
| Form Factor | Optical, Thermal |
| Weight | 20000.00g |
| Width | 337.60mm |
Power description
| Input Voltage | 36V DC |
|---|
Product information
| Length | 486.10mm |
|---|
Storage
| Storage Type | SD Card |
|---|
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|
Miscellaneous
| Indoor or outdoor use | Indoor, Outdoor |
|---|
Attributes
| Input Voltage | 36V DC |
|---|---|
| Weight | 20000.00g |
