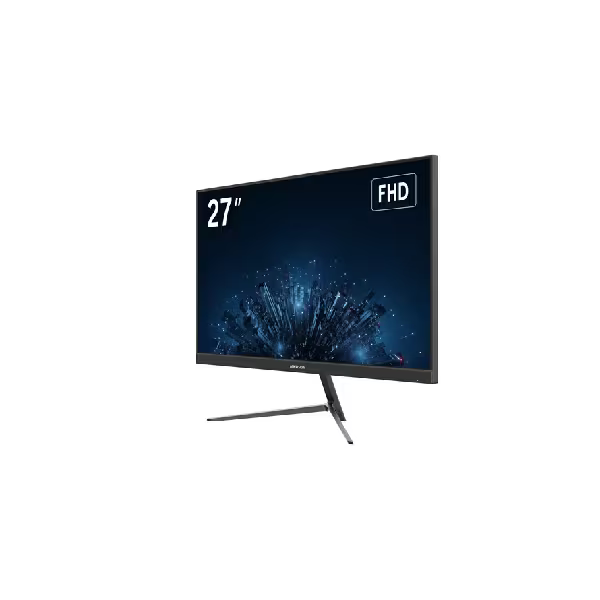

Hikvision DS-D5027F3-2P2S IPS FHD Monitor, 27 inch, 100 Hz
About this product
The Hikvision DS-D5027F3-2P2S is a 27 inch IPS monitor with an 8 bit LVDS FHD (1920 × 1080) display, a 100 Hz refresh rate and HDMI and VGA inputs. It is built for 7 * 24H operation, has built-in speakers (2 W × 2) and supports VESA wall mounting.
Key features
- IPS screen with a 178° (H) / 178° (V) viewing angle
- 8 bit LVDS FHD (1920 × 1080) display
- 100 Hz refresh rate
- 300 cd/m2 brightness and 1300 : 1 contrast ratio
- Inputs: HDMI1.4 × 1, VGA × 1, Line-In × 1
- Built-in speakers: 2 W × 2
- Low blue light design and 3D noise reduction
- VESA 100 mm × 100 mm (4-M4 × 10 mm) wall mount support
Frequently asked questions
What inputs does the DS-D5027F3-2P2S have?
It has HDMI1.4 × 1, VGA × 1 and Line-In × 1.
Does it have built-in speakers?
Yes. It has built-in speakers rated 2 W × 2.
Can it be wall mounted?
Yes. It supports VESA wall mounting at 100 mm × 100 mm (4-M4 × 10 mm).
How is it powered and how much power does it use?
It takes DC 12V, 2.5A Max from the supplied adapter (12V 2.5A). Power consumption is ≤ 30 W, and standby consumption is ≤ 0.5 W.
What comes in the box?
Monitor × 1, Base component × 1, Base Screws (Hex Socket) × 1, Hex Key × 1, Adapter (12V 2.5A) × 1, HDMI Cable (1.5m) × 1, User Manual × 1 and Multilingual manual × 1.
Is it rated for continuous use?
Its reliability is given as 7 * 24H, with a working temperature of 0 °C to 40 °C (32 °F to 104 °F).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-D5027F3-2P2S |
| Manufacturer Part Number (MPN) | DS-D5027F3-2P2S |
| Screen Size | 27 inch, 68.6 cm |
| Resolution | 1920 × 1080 |
| Backlight | E-LED |
| Pixel Pitch | 0.3114 (H) mm × 0.3114 (V) mm |
| Brightness | 300 cd/m2 |
| Viewing Angle | 178° (H) / 178° (V) |
| Color Depth | 8 bit, 16.7 M |
| Contrast Ratio | 1300 : 1 |
| Response Time | 14 (Typ) ms |
| Refresh Rate | 100 Hz |
| Haze | Haze 25%, 3H |
| Color Gamut | 72% NTSC |
| Reliability | 7 * 24H |
| Video & Audio Input | HDMI1.4 × 1, VGA × 1, Line-In × 1 |
| Video & Audio Output | Speaker × 2 |
| Power Supply | DC 12V, 2.5A Max |
| Power Consumption | ≤ 30 W |
| Standby Consumption | ≤ 0.5 W |
| Working Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Working Humidity | 10% ~ 90% RH (Non-Condensing) |
| Storage Temperature | -20 °C to 60 °C (-4°F to 140 °F) |
| Speaker | 2 W × 2 |
| Casing Material | Plastic |
| VESA | 100 mm × 100 mm (4-M4 × 10 mm) |
| Bezel Width | 0.12 inch (top/left/right), 0.87 inch (bottom) |
| Product Dimensions (W × H × D, without base) | 24.16 (W) × 14.5 (H) × 1.87 (D) inch |
| Product Dimensions (W × H × D, with base) | 24.16 (W) × 18.56 (H) × 7.6 (D) inch |
| Standby Time | 600s |
| Package Dimensions (W × H × D) | 27.01 (W) × 17.72 (H) × 5.04 (D) inch |
| Net Weight | 3.45 ± 0.5 kg (7.61 ± 1.1 lb.) |
| Gross Weight | 4.90 ± 0.5 kg (10.80 ± 1.1 lb.) |
| Packing List | Monitor × 1, Base component × 1, Base Screws (Hex Socket) × 1, Hex Key × 1, Adapter (12V 2.5A) × 1, HDMI Cable (1.5m) × 1, User Manual × 1, Multilingual manual × 1 |
