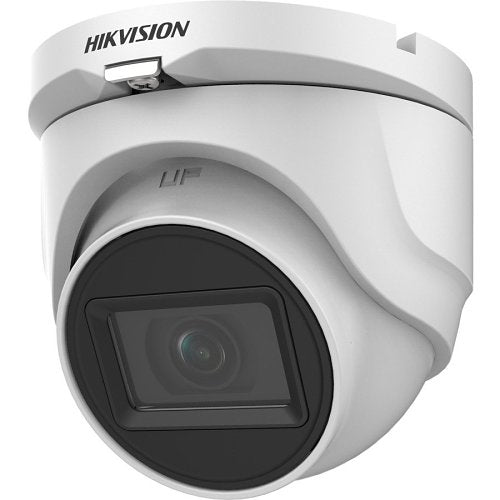

Hikvision DS-2CE76H0T-ITMF(3.6MM)(C) ir turret camera, 5MP


About this product

Hikvision DS-2CE76H0T-ITMF(3.6MM)(C) is an ir turret camera from the H0T Series range.

The Hikvision DS-2CE76H0T-ITMF 5 MP Outdoor Turret Camera provides high definition analog output with a resolution of up to 2560 x 1944 pixels. TurboHD means that the analog signal can be sent over existing coaxial cable, eliminating the need to run new cables for high definition video. EXIR 2.0 is Hikvision's proprietary IR extended range technology, which has a range of 98 feet (30 meters).

The 2.8 mm, 3.6 mm, and 6 mm fixed lens options are optimized for viewing angles that fit any situation. DWDR (Digital Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions. The camera also supports TVI, AHD, CVI, and CVBS video signals, and is water and dust-resistant (IP67 rated).

Key features

  • 5MP turret camera
  • EXIR 2.0: advanced infrared technology with 30m IR distance
  • Water and dust resistant (IP67)
  • 4-in-1 Video Output (Switchable TVI/AHD/CVI/VBS)
  • IP67
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
DS-2CE76H0T-ITMF(3.6MM)(C)
Product Series
H0T Series
Product Type
Turret Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
5MP
Field of View
Diagonal, Horizontal, Vertical
Lens Mount Type
M12 (S-Mount)
Lens Type
Fixed
Maximum Frame Rate
30fps
Minimum Focal Length
3.60mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Video Resolution
1280 x 720
Video Signal Format
NTSC, PAL
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
30.00m
Certifications
Ingress protection
IP67
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-40°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
1/50000 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/25 Second
Interfaces/ports
Network (RJ-45)
No
Lens
Focal Length
3.6mm
Lens Included
Yes
Maximum Focal Length
3.60mm
Network & communication
Remote Management
No
Physical characteristics
Colour
White
Durability
Dust Resistant, Water Resistant
Form Factor
Turret
Height
79.37mm
Weight
289.00g
Width
82.60mm
Power description
Input Voltage
12V DC
Power Source
DC Power
Product information
Diameter
82.60mm
Length
90.00mm
Mount Type
Corner Mount, Junction Box Mount, Pole Mount, Wall Mount
Video
Analog Video Signal Format
AHD, CVBS (Composite Video Baseband Signal)
Miscellaneous
Features
Back Light Compensation (BLC), Built-in HLC, Day/Night
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
12V DC
Power Source
DC Power
Weight
289.00g

Specifications

Brand Name Hikvision
Manufacturer Part Number DS-2CE76H0T-ITMF(3.6MM)(C)
Product Series H0T Series
Product Type Turret Cameras

Technical information

Connectivity Technology Wired
Effective resolution 5MP
Field of View Diagonal, Horizontal, Vertical
Lens Mount Type M12 (S-Mount)
Lens Type Fixed
Maximum Frame Rate 30fps
Minimum Focal Length 3.60mm
Night Vision Yes
Night Vision Type Infrared (IR)
Video Resolution 1280 x 720
Video Signal Format NTSC, PAL
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 30.00m

Certifications

Ingress protection IP67

Environmental conditions

Maximum Operating Temperature 60°C
Minimum Operating Temperature -40°C
Operating Humidity 90%

Exposure

Longest Shutter Speed 1/50000 Second
Minimum Illumination 0.0000lux
Shortest Shutter Speed 1/25 Second

Interfaces/ports

Network (RJ-45) No

Lens

Focal Length 3.6mm
Lens Included Yes
Maximum Focal Length 3.60mm

Network & communication

Remote Management No

Physical characteristics

Colour White
Durability Dust Resistant, Water Resistant
Form Factor Turret
Height 79.37mm
Weight 289.00g
Width 82.60mm

Power description

Input Voltage 12V DC
Power Source DC Power

Product information

Diameter 82.60mm
Length 90.00mm
Mount Type Corner Mount, Junction Box Mount, Pole Mount, Wall Mount

Video

Analog Video Signal Format AHD, CVBS (Composite Video Baseband Signal)

Miscellaneous

Features Back Light Compensation (BLC), Built-in HLC, Day/Night
Indoor or outdoor use Outdoor

Attributes

Input Voltage 12V DC
Power Source DC Power
Weight 289.00g

Hikvision DS-2CE76H0T-ITMF(3.6MM)(C) ir turret camera

Hikvision DS-2CE76H0T-ITMF(3.6MM)(C) ir turret camera, 5MP

Who this is for

For the installer — this is the ir turret camera supplied under Hikvision part number DS-2CE76H0T-ITMF(3.6MM)(C). Specify it by that part number.

In plain English: this is an ir turret camera made by Hikvision. The part number DS-2CE76H0T-ITMF(3.6MM)(C) is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this ir turret camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact ir turret camera I have been quoted? Check the manufacturer part number DS-2CE76H0T-ITMF(3.6MM)(C) against your quote. That code is the only reliable identity for this item.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.
