Hikvision HM-TX2840-10/G0/T1 linkage tracking system, 4MP

Visit CCTV Cameras
Free Delivery

About this product

Please note: this is a non-returnable item (excluding faulty goods)

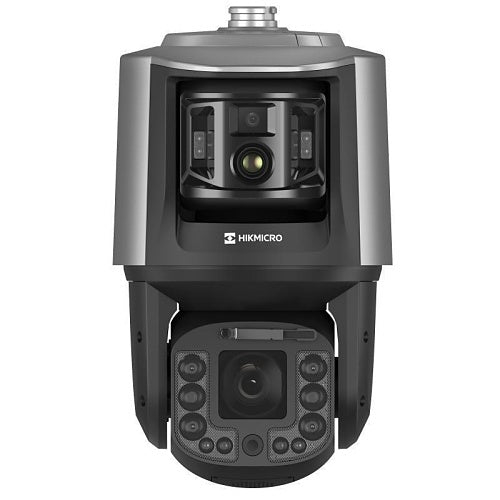

Hikvision HM-TX2840-10/G0/T1 is a linkage tracking system.

Introducing the Hikvision HM-TX2840-10/G0/T1, a cutting-edge 4MP Thermal Smart Linkage Tracking System designed for superior surveillance. With its advanced thermal imaging capabilities, this system ensures clear visibility in various conditions, making it ideal for security applications. The 10mm lens provides a wide field of view, allowing for comprehensive monitoring of your surroundings.

Whether you're enhancing security for your home or business, this reliable system offers peace of mind with its smart tracking features.

Key features

  • 256x192 resolution thermal image, high sensitivity sensor, adjustable contrast
  • Thermal image processing Adaptive AGC, DDE, 3D DNR, NETD 25 mK (at 25 °C,F 1.0)
  • High quality imaging with 4MP optical PTZ and 40X optical zoom
  • Multi-lens synergy within integrated design provide easy deployment
  • Built-in speakers to provide audible alarms and LED to provide whitelight supplement
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
HM-TX2840-10/G0/T1
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/1
Maximum Frame Rate
30fps
Minimum Focal Length
6.00mm
Optical Zoom
40.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
2688 x 1520
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Certifications
Ingress protection
IP67
Display & graphics
Maximum video resolution
2688 x 1520
Environmental conditions
Maximum Operating Temperature
70°C
Minimum Operating Temperature
-40°C
Operating Humidity
90%
Exposure
Minimum Illumination
0.0050lux
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
6-240mm, 8mm
Lens Included
Yes
Maximum Focal Length
240.00mm
Maximum Thermal Focal Length
9.70mm
Minimum Aperture
f/1
Physical characteristics
Depth
290.00mm
Height
458.70mm
Weight
13.50kg
Width
266.60mm
Power description
Input Voltage
24V AC, 36V DC
Storage
Storage Type
SD Card
Miscellaneous
Features
256 x 192 resolution thermal image, high sensitivity sensor, adjustable contrast, Built-in speakers to provide audible alarms and LED to provide whitelight supplement, High quality imaging with 4MP optical PTZ and 40X optical zoom, Multi-lens synergy within integrated design provide easy deployment, Thermal image processing Adaptive AGC, DDE, 3D DNR, NETD 25 mK (at 25 °C,F 1.0)
Attributes
Indoor or outdoor use
Indoor, Outdoor
Input Voltage
24V AC, 36V DC
Weight
13.50kg
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Physical characteristics
Power description
Storage
Miscellaneous
Attributes

Specifications

Brand Name Hikvision
Manufacturer Part Number HM-TX2840-10/G0/T1
Product Type Network Camera

Technical information

Connectivity Technology Wired
Effective resolution 4MP
Field of View Horizontal, Vertical
Lens Type Fixed
Maximum Aperture f/1
Maximum Frame Rate 30fps
Minimum Focal Length 6.00mm
Optical Zoom 40.0x
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 2688 x 1520
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS

Certifications

Ingress protection IP67

Display & graphics

Maximum video resolution 2688 x 1520

Environmental conditions

Maximum Operating Temperature 70°C
Minimum Operating Temperature -40°C
Operating Humidity 90%

Exposure

Minimum Illumination 0.0050lux

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 6-240mm, 8mm
Lens Included Yes
Maximum Focal Length 240.00mm
Maximum Thermal Focal Length 9.70mm
Minimum Aperture f/1

Physical characteristics

Depth 290.00mm
Height 458.70mm
Weight 13.50kg
Width 266.60mm

Power description

Input Voltage 24V AC, 36V DC

Storage

Storage Type SD Card

Miscellaneous

Features 256 x 192 resolution thermal image, high sensitivity sensor, adjustable contrast, Built-in speakers to provide audible alarms and LED to provide whitelight supplement, High quality imaging with 4MP optical PTZ and 40X optical zoom, Multi-lens synergy within integrated design provide easy deployment, Thermal image processing Adaptive AGC, DDE, 3D DNR, NETD 25 mK (at 25 °C,F 1.0)

Attributes

Indoor or outdoor use Indoor, Outdoor
Input Voltage 24V AC, 36V DC
Weight 13.50kg

Hikvision HM-TX2840-10/G0/T1 linkage tracking system

Hikvision HM-TX2840-10/G0/T1 linkage tracking system, 4MP

Who this is for

For the installer — this is the linkage tracking system supplied under Hikvision part number HM-TX2840-10/G0/T1. Specify it by that part number.

In plain English: this is a linkage tracking system made by Hikvision. The part number HM-TX2840-10/G0/T1 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this linkage tracking system is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact linkage tracking system I have been quoted? Check the manufacturer part number HM-TX2840-10/G0/T1 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.
