Hikvision HM-TX3840-25/G0/T1 linkage tracking system, 4MP
Free Delivery
Save £541.92
About this product
Please note: this is a non-returnable item (excluding faulty goods)

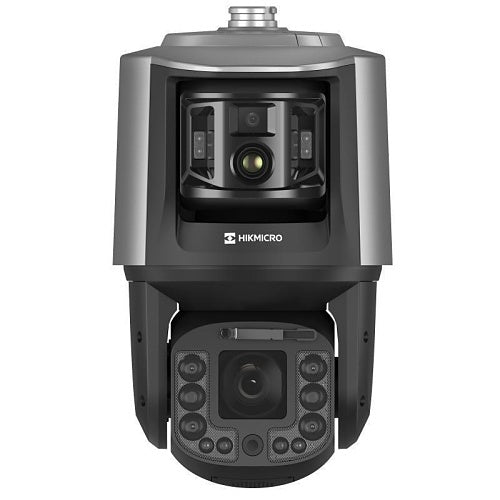

Hikvision HM-TX3840-25/G0/T1 is a linkage tracking system.
Introducing the Hikvision HM-TX3840-25/G0/T1, a cutting-edge 4MP Thermal Smart Linkage Tracking System designed for superior surveillance. With its advanced thermal imaging capabilities and a 25mm lens, this system ensures exceptional clarity and precision in monitoring. Ideal for both residential and commercial applications, it offers seamless integration and smart tracking features that enhance security measures.
Experience peace of mind with Hikvision's reliable technology, tailored to meet your safety needs.
Key features
- 384x288 resolution thermal image, high sensitivity sensor, adjustable contrast
- Thermal image processing Adaptive AGC, DDE, 3D DNR, NETD 25 mK (at 25 °C,F 1.0)
- High quality imaging with 4MP optical PTZ and 40X optical zoom
- Multi-lens synergy within integrated design provide easy deployment
- Built-in speakers to provide audible alarms and LED to provide whitelight supplement
-
Download
- HM-TX3840-25/G0/T1 — Product Manual
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
HM-TX3840-25/G0/T1
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/1
Maximum Frame Rate
30fps
Minimum Focal Length
6.00mm
Optical Zoom
40.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
2688 x 1520
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Certifications
Ingress protection
IP67
Display & graphics
Maximum video resolution
2688 x 1520
Environmental conditions
Maximum Operating Temperature
70°C
Minimum Operating Temperature
-40°C
Operating Humidity
90%
Exposure
Minimum Illumination
0.0050lux
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
12.4mm, 6-240mm
Lens Included
Yes
Maximum Focal Length
240.00mm
Maximum Thermal Focal Length
25.00mm
Minimum Aperture
f/1
Physical characteristics
Depth
290.00mm
Height
458.70mm
Weight
13.50kg
Width
266.60mm
Power description
Input Voltage
24V AC, 36V DC
Storage
Storage Type
SD Card
Miscellaneous
Features
384 x 288 resolution thermal image, high sensitivity sensor, adjustable contrast, Built-in speakers to provide audible alarms and LED to provide whitelight supplement, High quality imaging with 4MP optical PTZ and 40X optical zoom, Multi-lens synergy within integrated design provide easy deployment, Thermal image processing Adaptive AGC, DDE, 3D DNR, NETD 25 mK (at 25 °C,F 1.0)
Attributes
Indoor or outdoor use
Indoor, Outdoor
Input Voltage
24V AC, 36V DC
Weight
13.50kg
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | HM-TX3840-25/G0/T1 |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 6.00mm |
| Optical Zoom | 40.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 2688 x 1520 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 2688 x 1520 |
|---|
Environmental conditions
| Maximum Operating Temperature | 70°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 90% |
Exposure
| Minimum Illumination | 0.0050lux |
|---|
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 12.4mm, 6-240mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 240.00mm |
| Maximum Thermal Focal Length | 25.00mm |
| Minimum Aperture | f/1 |
Physical characteristics
| Depth | 290.00mm |
|---|---|
| Height | 458.70mm |
| Weight | 13.50kg |
| Width | 266.60mm |
Power description
| Input Voltage | 24V AC, 36V DC |
|---|
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Features | 384 x 288 resolution thermal image, high sensitivity sensor, adjustable contrast, Built-in speakers to provide audible alarms and LED to provide whitelight supplement, High quality imaging with 4MP optical PTZ and 40X optical zoom, Multi-lens synergy within integrated design provide easy deployment, Thermal image processing Adaptive AGC, DDE, 3D DNR, NETD 25 mK (at 25 °C,F 1.0) |
|---|
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | 24V AC, 36V DC |
| Weight | 13.50kg |
