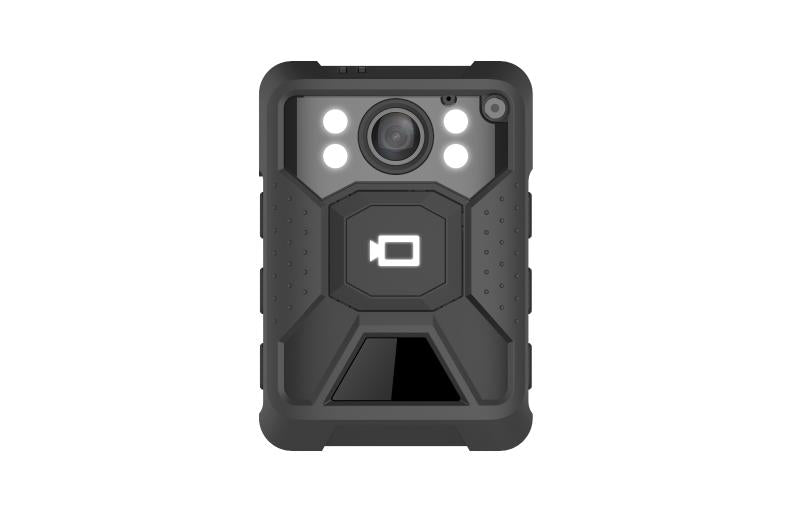

Hikvision DS-MCW407/64G/GPS/WIFI(D) Linux Big Button Body Camera, 1080p, 64GB
Free Delivery
Save £71.84
About this product
The Hikvision DS-MCW407/64G/GPS/WIFI(D) is the 64 GB, GPS and Wi-Fi model of the DS-MCW407(D) Linux Big Button Body Camera, with 1080p HD recording and a large button in the front for press-and-play recording. It has a built-in battery good for a full-shift work, IR up to 10 m, IP68 protection and a MIL-STD-810G, 2 m drop test rating.
Key features
- 1080p HD recording, max. recording resolution 1920 × 1080
- Large-button in the front for press-and-play recording
- IR range up to 10 m (850 nm); IR function to recognise facial features in the captured picture even in dim environment
- 2.4 mm fixed lens, horizontal FOV: 135°
- 64 GB ROM by default
- GPS positioning and 802.11 a/b/g/n Wi-Fi
- Integral lithium-ion battery, 3220 mAh, up to 12h in 720p resolution
- IP68 protection and MIL-STD-810G, 2 m drop test
Frequently asked questions
How long does the battery last?
The integral 3220 mAh lithium-ion battery gives up to 12h in 720p resolution, and charging time is ≤ 4 h.
Does this model have a SIM slot or 4G?
No. Cellular network and the SIM card are only for models with /GLE. This DS-MCW407/64G/GPS/WIFI(D) model has GPS positioning and 802.11 a/b/g/n Wi-Fi.
How much storage does it have?
64 GB ROM by default, with 128 MB RAM.
Can it record in the dark?
It has IR with a range of up to 10 m at 850 nm, and the IR function recognises facial features in the captured picture even in dim environment.
How tough is it?
It is rated IP68 (IEC 60529-2013), passes a MIL-STD-810G, 2 m drop test, and operates from -20 °C to 55 °C at humidity of 95% or less (non-condensing).
Does it support group intercom?
Yes, group intercom is supported for firmware version V2.6.0 or above.
Technical Details
Specifications
Brand
Hikvision
Model
DS-MCW407/64G/GPS/WIFI(D)
Manufacturer Part Number (MPN)
DS-MCW407/64G/GPS/WIFI(D)
CPU
Single core, 32 bit, Main frequency: 0.96 GHz
Image Sensor
1/3 progressive scan CMOS
Max. Recording Resolution
1920 × 1080
Min. Illumination
Color: 0.07 Lux @ (F2.2, AGC ON), 0 Lux with supplement light
Day & Night
Switch IR cut filter automatically
Zoom
4x Digital
White Light
1 white light(s)
Focal Length
2.4 mm fixed lens
FOV
Horizontal FOV: 135°, Vertical FOV: 75°, Diagonal FOV: 145°
Aperture
F2.2
Video Compression
H.264, H.265
Video Format
MP4, PS
Main Stream
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 720 × 576)
Pre-Record & Post-Record
Pre-record: 10 s, Post-record: 60 s
Image Format
JPEG
Image Resolution
5 MP, 16 MP, 30 MP, 40 MP
Image Stabilization Algorithm
Not supported
Screen Size
2.0"
Display Resolution
320 × 240
Touchscreen
Supported
RAM
128 MB
ROM
64 GB by default
IR Range
Up to 10 m
IR Wavelength
850 nm
Wi-Fi Protocol
802.11 a/b/g/n
Wi-Fi Frequency Band
2.412 to 2.472 GHz
Positioning Mode
GPS
Bluetooth
Not supported
Protocol
HTTPS, RTSP, NTP, FTP
API
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Encryption
AES128, AES256
Watermark
Supported
Audio Type
1 built-in mic(s), 1 speaker(s)
Speaker
1 built-in speaker(s), max. power consumption: 1 W, max. sound pressure level: 87 dB (10 cm)
Indicator
2 indicator(s) for charging/working/recording/exception
Button
Power, Video recording, Audio recording, Picture capture, PTT, SOS, Fn
Charging Interface
Type-C, Pin connection
USB
1 USB 2.0 port(s)
Basic Event
SOS alarm
Group Intercom
Supported for firmware version V2.6.0 or above
Operating Condition
-20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
Power
5 VDC, 2.0 A, max. 10 W
Dimensions
82.6 mm × 58 mm × 29 mm (3.3" × 2.3" × 1.1")
Weight
159.5 g (without mounting)
Operating System
Linux
Client
Hik-Connect, HikCentral Pro, HikCentral Master, HikCentral Master Lite
Battery Type
Lithium-ion battery, integral
Battery Capacity
3220 mAh
Charging Time
≤ 4 h
Battery Duration
Up to 12h in 720p resolution
Protection
IP68: IEC 60529-2013
Drop Test
MIL-STD-810G, 2 m drop test
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-MCW407/64G/GPS/WIFI(D) |
| Manufacturer Part Number (MPN) | DS-MCW407/64G/GPS/WIFI(D) |
| CPU | Single core, 32 bit, Main frequency: 0.96 GHz |
| Image Sensor | 1/3 progressive scan CMOS |
| Max. Recording Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.07 Lux @ (F2.2, AGC ON), 0 Lux with supplement light |
| Day & Night | Switch IR cut filter automatically |
| Zoom | 4x Digital |
| White Light | 1 white light(s) |
| Focal Length | 2.4 mm fixed lens |
| FOV | Horizontal FOV: 135°, Vertical FOV: 75°, Diagonal FOV: 145° |
| Aperture | F2.2 |
| Video Compression | H.264, H.265 |
| Video Format | MP4, PS |
| Main Stream | 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 720 × 576) |
| Pre-Record & Post-Record | Pre-record: 10 s, Post-record: 60 s |
| Image Format | JPEG |
| Image Resolution | 5 MP, 16 MP, 30 MP, 40 MP |
| Image Stabilization Algorithm | Not supported |
| Screen Size | 2.0" |
| Display Resolution | 320 × 240 |
| Touchscreen | Supported |
| RAM | 128 MB |
| ROM | 64 GB by default |
| IR Range | Up to 10 m |
| IR Wavelength | 850 nm |
| Wi-Fi Protocol | 802.11 a/b/g/n |
| Wi-Fi Frequency Band | 2.412 to 2.472 GHz |
| Positioning Mode | GPS |
| Bluetooth | Not supported |
| Protocol | HTTPS, RTSP, NTP, FTP |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
| Encryption | AES128, AES256 |
| Watermark | Supported |
| Audio Type | 1 built-in mic(s), 1 speaker(s) |
| Speaker | 1 built-in speaker(s), max. power consumption: 1 W, max. sound pressure level: 87 dB (10 cm) |
| Indicator | 2 indicator(s) for charging/working/recording/exception |
| Button | Power, Video recording, Audio recording, Picture capture, PTT, SOS, Fn |
| Charging Interface | Type-C, Pin connection |
| USB | 1 USB 2.0 port(s) |
| Basic Event | SOS alarm |
| Group Intercom | Supported for firmware version V2.6.0 or above |
| Operating Condition | -20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing) |
| Power | 5 VDC, 2.0 A, max. 10 W |
| Dimensions | 82.6 mm × 58 mm × 29 mm (3.3" × 2.3" × 1.1") |
| Weight | 159.5 g (without mounting) |
| Operating System | Linux |
| Client | Hik-Connect, HikCentral Pro, HikCentral Master, HikCentral Master Lite |
| Battery Type | Lithium-ion battery, integral |
| Battery Capacity | 3220 mAh |
| Charging Time | ≤ 4 h |
| Battery Duration | Up to 12h in 720p resolution |
| Protection | IP68: IEC 60529-2013 |
| Drop Test | MIL-STD-810G, 2 m drop test |
