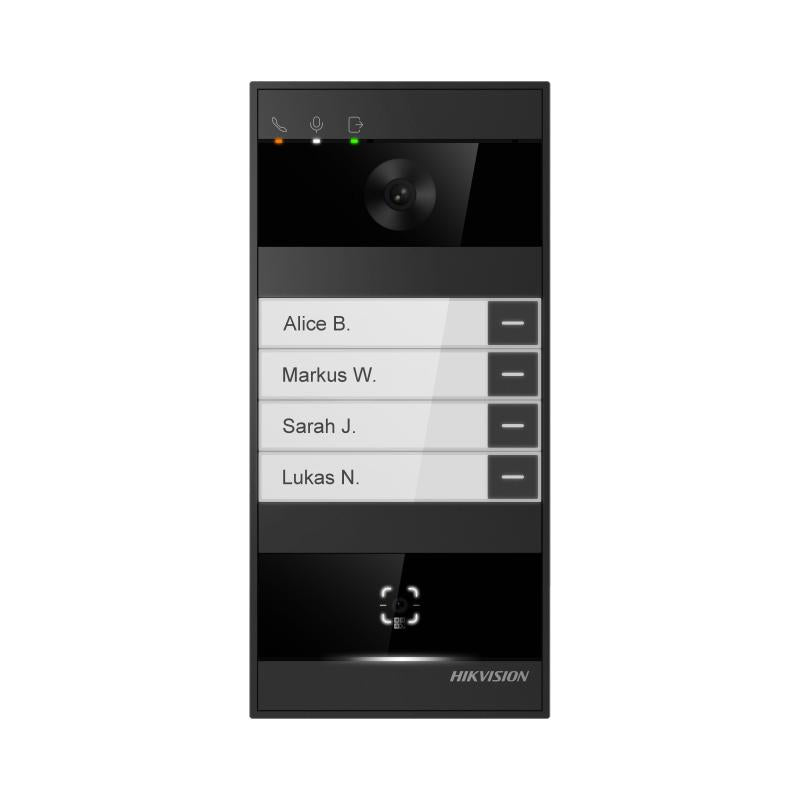

Hikvision DS-KV8114-NWQE1 Metal Villa Door Station, 4MP, Wi-Fi 6
About this product
The Hikvision DS-KV8114-NWQE1 is a metal villa door station for IP video intercom, with a 4 MP camera and 150° field of view, two microphones and dual speakers, and entry by face, QR code, card, Bluetooth or app. It is rated IP66 and IK08 for outdoor installation, connects by Ethernet or Wi-Fi 6, and works with the Hik-Connect app.
Key features
- 4 MP camera with 150° horizontal FOV
- 2 built-in omnidirectional microphones and 2 built-in loudspeakers, with noise suppression and echo cancellation
- Unlock by face, card, QR code, Bluetooth, Hik-Connect, indoor station or mobile app
- Capacity: 5000 users, 5000 faces, 25000 cards
- IR light up to 3 m and 120 dB WDR
- Wi-Fi 6 (2.4G) and Bluetooth BLE 5.2
- Power by 12 VDC, 2 A or IEEE 802.3 at standard PoE
- IP66, IK08 protective level
Frequently asked questions
How is the DS-KV8114-NWQE1 powered?
By 12 VDC, 2 A, or by IEEE 802.3 at standard PoE.
How can visitors or residents open the door?
Authentication modes are face, card, QR code, Bluetooth, Hik-Connect, indoor station and mobile app. It has 2 relay lock control, max. 30 VDC 1A.
How many users and cards can it store?
User capacity is 5000, face capacity 5000 and card capacity 25000 (M1 Card).
Can it be installed outdoors?
Yes. The application environment is outdoor, with an IP66, IK08 protective level and a working temperature of -40 °C to 60 °C.
Does it work on Wi-Fi?
Yes. It supports WiFi 6 at 2.4G, as well as a 1 RJ-45 10/100 Mbps wired connection.
Can it be flush mounted?
Yes. It supports surface mounting and flush mounting.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-KV8114-NWQE1 |
| Manufacturer Part Number (MPN) | DS-KV8114-NWQE1 |
| Resolution (main stream) | 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P) |
| FOV | Horizontal: 150°; Vertical: 105° |
| WDR | Support 120 dB |
| Supplement Light | IR light, up to 3 m |
| Video Compression Standard | H.264; H.265; MJPEG |
| Audio Input | 2 built-in omnidirectional microphones |
| Audio Output | 2 built-in loudspeakers |
| User Capacity | 5000 |
| Face Capacity | 5000 |
| Card Capacity | 25000 |
| Sub Door Station Capacity | 16 |
| Wi-Fi | 2.4G |
| Wi-Fi Type | WiFi 6 |
| Bluetooth | Supported, BLE 5.2 |
| Authentication Mode | Face, Card, QR code, Bluetooth, Hik-Connect, Indoor station, Mobile APP |
| Card Type | M1 Card |
| Card Reading Frequency | 13.56 MHz |
| Face Recognition Distance | 0.3 to 1.5 m |
| Card Reading Distance | 3 cm |
| Mobile APP | Hik-Connect |
| Alarm Input | 4, (include Exit button and Door contact input) |
| Network Interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TF Card | Support TF card, up to 128 G |
| Lock Control | 2 relay, Max. 30 VDC 1A |
| Button | 4 physical button(s) |
| Application Environment | Outdoor |
| Installation | Surface mounting & Flush mounting |
| Protective Level | IP66, IK08 |
| Working Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Working Humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 202.6 mm × 95.6 mm × 28.5 mm (7.98" × 3.76" × 1.12") |
| Weight | With package: 763g (1.68 lb), Without package: 390 g (0.86 lb) |
| Power Supply | 12 VDC, 2 A, IEEE 802.3 at, standard PoE |
| Power Supply Output | Max. 12 VDC, 500mA |
