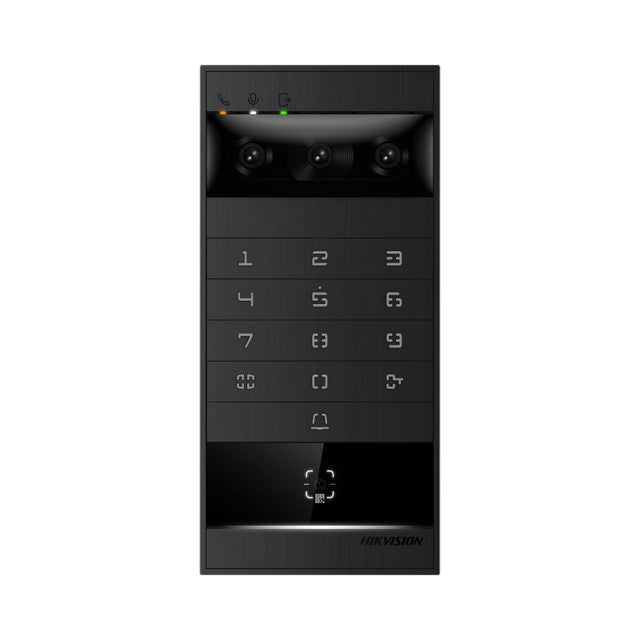

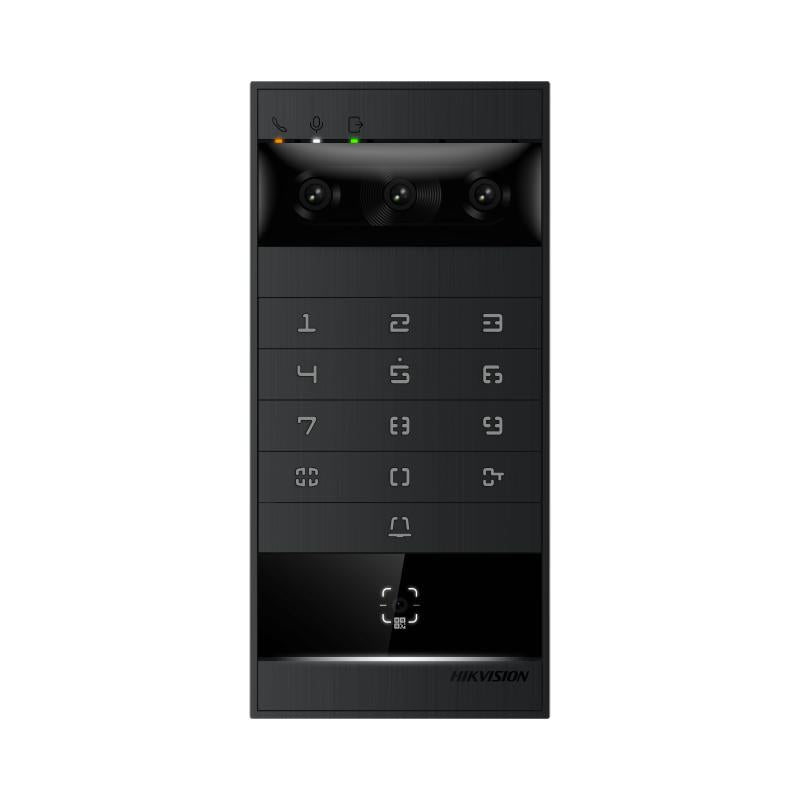

Hikvision DS-KV8114T-KWQE1 Metal Villa Door Station, 4 MP + 2MP + 2MP, 180° FOV
Free Delivery
Save £77.32
About this product
The Hikvision DS-KV8114T-KWQE1 is a metal villa door station for IP video intercom systems, with three lenses (4 MP + 2MP + 2MP) and a 180° FOV. It supports face, card, QR code, Bluetooth, Hik-Connect, indoor station, mobile app and PIN code authentication, plus AI video detection and abnormal sound detection.
Key features
- 3 lenses: 4 MP + 2MP + 2MP, with a centre lens of horizontal 180° and vertical 105° FOV
- Authentication by face, card, QR code, Bluetooth, Hik-Connect, indoor station, mobile app and PIN code
- Face recognition distance 0.3 to 1.5 m; card reading distance 3 cm (M1 Card, Desfire, 13.56 MHz)
- 4 built-in omnidirectional microphones and 2 built-in loudspeakers, with noise suppression and echo cancellation
- IR supplement light up to 3 m and WDR support (120 dB)
- 2 relay lock control, max. 30 VDC 1A
- Powered by 12 VDC, 2 A or IEEE 802.3 at standard PoE
- IP66 and IK08 (excluding the lens area and card reading area); working temperature -40 °C to 60 °C
Frequently asked questions
Which authentication modes does it support?
Authentication modes are face, card, QR code, Bluetooth, Hik-Connect, indoor station, mobile app and PIN code.
How is the door station powered?
By 12 VDC, 2 A or IEEE 802.3 at standard PoE. Power consumption is < 14 W with lock and < 20 W without lock.
What lock control does it have?
Lock control is 2 relay, max. 30 VDC 1A.
Can it be installed outdoors?
Yes. The application environment is outdoor, it is rated IP66 and IK08 (excluding the lens area and card reading area), and it works from -40 °C to 60 °C.
How many users and cards can it store?
Up to 10000 users, 10000 faces and 50000 cards (M1 Card, Desfire).
Which mobile app does it use?
The mobile app is Hik-Connect. The door station also supports motion detection, playback and call elevator.
Technical Details
Specifications
Brand
Hikvision
Model
DS-KV8114T-KWQE1
Manufacturer Part Number (MPN)
DS-KV8114T-KWQE1
Operation System
Linux
Lens
3
Resolution
Main stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P); Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P)
FOV
Center Lens: Horizontal: 180°; Vertical: 105°; Side Lenses: Horizontal: 75°; Vertical: 150°
WDR
Support 120 dB
Supplement Light
IR light, up to 3 m
Video Compression Standard
H.264; H.265; MJPEG
Audio Input
4 built-in omnidirectional microphones
Audio Output
2 built-in loudspeakers
Audio Compression Standard
G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729
Audio Quality
Noise suppression and echo cancellation
Audio Performance
50cm, 85dB
User Capacity
10000
Face Capacity
10000
Card Capacity
50000
Sub Door Station Capacity
16
Network Protocol
TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, IPv4, IPv6, UDP, WebSocket, WebSockets, ONVIF, SIP v2 (RFC3261)
Wi-Fi
2.4G
Wi-Fi Protocol
IEEE802.11b; IEEE802.11g; IEEE802.11n; IEEE802.11ax
Wi-Fi Type
WiFi 6
Bluetooth
Supported, BLE 5.2
Authentication Mode
Face, Card, QR code, Bluetooth, Hik-Connect, Indoor station, Mobile APP, PIN Code
Card Type
M1 Card, Desfire
Card Reading Frequency
13.56 MHz
Face Recognition Distance
0.3 to 1.5 m
Card Reading Distance
3 cm
Mobile APP
Hik-Connect
Alarm Input
4 (include Exit button and Door contact input)
Network Interface
1 RJ-45, 10/100 Mbps self-adaptive
Tamper
1
Exit Button
2
RS-485
1
TF Card
Support TF card, up to 128 G
Supported TF Format
FAT32; exFAT
Lock Control
2 relay, Max. 30 VDC 1A
Door Contact Input
2
Application Environment
Outdoor
Button
13 physical button(s)
Indicator
3
Installation
Surface mounting & Flush mounting
Weight
Without package: 550 g (1.21 lb), With package: 831g (1.83 lb)
Protective Level
IP66, IK08 (excluding the lens area and card reading area)
Working Temperature
-40 °C to 60 °C (-40 °F to 140 °F)
Storage Temperature
-30 °C to 60 °C (-22 °F to 140 °F)
Working Humidity
10% to 90% (no-condensing)
Dimension (W × H × D)
202.6 mm × 95.6 mm × 34.1 mm
Power Consumption
With Lock: < 14 W; Without Lock: < 20 W
Power Supply
12 VDC, 2 A, IEEE 802.3 at, standard PoE
Power Supply Output
Max. 12 VDC, 500mA
Material
Rear Shell Material: Plastic; Front Shell: Aluminum Alloy & Plastic; Frame: Aluminum Alloy; Viewing Window Panel Material: Plastic
Ambient Lighting
Support
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-KV8114T-KWQE1 |
| Manufacturer Part Number (MPN) | DS-KV8114T-KWQE1 |
| Operation System | Linux |
| Lens | 3 |
| Resolution | Main stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P); Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P) |
| FOV | Center Lens: Horizontal: 180°; Vertical: 105°; Side Lenses: Horizontal: 75°; Vertical: 150° |
| WDR | Support 120 dB |
| Supplement Light | IR light, up to 3 m |
| Video Compression Standard | H.264; H.265; MJPEG |
| Audio Input | 4 built-in omnidirectional microphones |
| Audio Output | 2 built-in loudspeakers |
| Audio Compression Standard | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729 |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Performance | 50cm, 85dB |
| User Capacity | 10000 |
| Face Capacity | 10000 |
| Card Capacity | 50000 |
| Sub Door Station Capacity | 16 |
| Network Protocol | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, IPv4, IPv6, UDP, WebSocket, WebSockets, ONVIF, SIP v2 (RFC3261) |
| Wi-Fi | 2.4G |
| Wi-Fi Protocol | IEEE802.11b; IEEE802.11g; IEEE802.11n; IEEE802.11ax |
| Wi-Fi Type | WiFi 6 |
| Bluetooth | Supported, BLE 5.2 |
| Authentication Mode | Face, Card, QR code, Bluetooth, Hik-Connect, Indoor station, Mobile APP, PIN Code |
| Card Type | M1 Card, Desfire |
| Card Reading Frequency | 13.56 MHz |
| Face Recognition Distance | 0.3 to 1.5 m |
| Card Reading Distance | 3 cm |
| Mobile APP | Hik-Connect |
| Alarm Input | 4 (include Exit button and Door contact input) |
| Network Interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| Tamper | 1 |
| Exit Button | 2 |
| RS-485 | 1 |
| TF Card | Support TF card, up to 128 G |
| Supported TF Format | FAT32; exFAT |
| Lock Control | 2 relay, Max. 30 VDC 1A |
| Door Contact Input | 2 |
| Application Environment | Outdoor |
| Button | 13 physical button(s) |
| Indicator | 3 |
| Installation | Surface mounting & Flush mounting |
| Weight | Without package: 550 g (1.21 lb), With package: 831g (1.83 lb) |
| Protective Level | IP66, IK08 (excluding the lens area and card reading area) |
| Working Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Storage Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 202.6 mm × 95.6 mm × 34.1 mm |
| Power Consumption | With Lock: < 14 W; Without Lock: < 20 W |
| Power Supply | 12 VDC, 2 A, IEEE 802.3 at, standard PoE |
| Power Supply Output | Max. 12 VDC, 500mA |
| Material | Rear Shell Material: Plastic; Front Shell: Aluminum Alloy & Plastic; Frame: Aluminum Alloy; Viewing Window Panel Material: Plastic |
| Ambient Lighting | Support |
