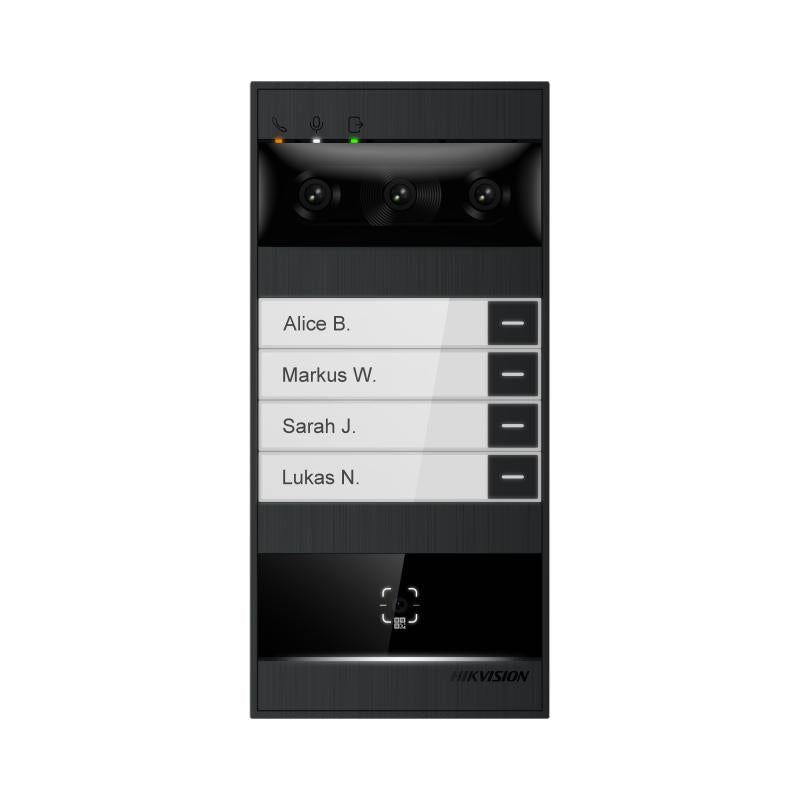

Hikvision DS-KV8114T-NWQE1 Metal Villa Door Station, 4 MP+2MP+2MP, 180° FOV
Free Delivery
Save £82.17
About this product
The Hikvision DS-KV8114T-NWQE1 is a metal villa door station with 3 lenses (4 MP+2MP+2MP), a 180° FOV and AI-ISP, rated for an outdoor application environment. Access is by face, card, Bluetooth, QR code or app, and audio comes from up to 4 mic and dual speakers with AI noise reduction.
Key features
- 3 lenses: 4 MP+2MP+2MP, 180° FOV, AI-ISP
- Center lens FOV horizontal 180°, vertical 105°; side lenses horizontal 75°, vertical 150°
- Authentication by face, card, QR code, Bluetooth, Hik-Connect, indoor station or mobile app
- 4 built-in omnidirectional microphones and 2 built-in loudspeakers, with noise suppression and echo cancellation
- AI video detection and abnormal sound detection
- Wi-Fi 2.4G (WiFi 6) and Bluetooth BLE 5.2
- IP66 and IK08 protective level
- User capacity 10000, face capacity 10000, card capacity 50000
Frequently asked questions
Which access methods does the DS-KV8114T-NWQE1 support?
Face, card, QR code, Bluetooth, Hik-Connect, indoor station and mobile app. Card types are M1 Card and Desfire.
How is the door station powered?
12 VDC, 2 A, or IEEE 802.3 at standard PoE. Power consumption is With Lock: < 14 W and Without Lock: < 20 W.
Can it be installed outside?
Its application environment is outdoor, with an IP66, IK08 protective level and a working temperature of -40 °C to 60 °C.
What mounting options are there?
Surface mounting and flush mounting.
How many locks can it control?
Lock control is 2 relay, Max. 30 VDC 1A.
Technical Details
Specifications
Brand
Hikvision
Model
DS-KV8114T-NWQE1
Manufacturer Part Number (MPN)
DS-KV8114T-NWQE1
Operation System
Linux
ROM
4 GB
RAM
1 GB
Lens
3
Resolution (main stream)
4MP (2688x1520P), 2MP (1920x1080P), 1MP (1280x720P)
Resolution (sub stream)
2MP (1920x1080P), 1MP (1280x720P), 0.3MP (640x480P)
FOV
Center Lens: Horizontal: 180°; Vertical: 105°. Side Lenses: Horizontal: 75°; Vertical: 150°
WDR
Support 120 dB
Supplement Light
IR light, up to 3 m
Video Compression Standard
H.264; H.265; MJPEG
Audio Input
4 built-in omnidirectional microphones
Audio Output
2 built-in loudspeakers
Audio Quality
Noise suppression and echo cancellation
Audio Performance
50cm, 85dB
User Capacity
10000
Face Capacity
10000
Card Capacity
50000
Sub Door Station Capacity
16
Wi-Fi
2.4G
Wi-Fi Protocol
IEEE802.11b; IEEE802.11g; IEEE802.11n; IEEE802.11ax
Wi-Fi Type
WiFi 6
Bluetooth
Supported, BLE 5.2
Authentication Mode
Face, Card, QR code, Bluetooth, Hik-Connect, Indoor station, Mobile APP
Card Type
M1 Card, Desfire
Card Reading Frequency
13.56 MHz
Face Recognition Distance
0.3 to 1.5 m
Card Reading Distance
3 cm
Mobile APP
Hik-Connect
Alarm Input
4, (include Exit button and Door contact input)
Network Interface
1 RJ-45, 10/100 Mbps self-adaptive
Exit Button
2
Door Contact Input
2
RS-485
1
Tamper
1
TF Card
Support TF card, up to 128 G
Lock Control
2 relay, Max. 30 VDC 1A
Application Environment
Outdoor
Button
4 physical button(s)
Installation
Surface mounting & Flush mounting
Protective Level
IP66, IK08
Working Temperature
-40 °C to 60 °C (-40 °F to 140 °F)
Storage Temperature
-30 °C to 60 °C (-22 °F to 140 °F)
Working Humidity
10% to 90% (no-condensing)
Dimension (W × H × D)
202.6 mm × 95.6 mm × 34 mm (7.98" × 3.76" × 1.34")
Weight
Without package: 400 g (0.88 lb); With package: 788g (1.74 lb)
Power Consumption
With Lock: < 14 W; Without Lock: < 20 W
Power Supply
12 VDC, 2 A, IEEE 802.3 at, standard PoE
Power Supply Output
Max. 12 VDC, 500mA
Material
Rear Shell Material: Plastic; Front Shell: Aluminum Alloy & Plastic; Frame: Aluminum Alloy; Viewing Window Panel Material: Plastic
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-KV8114T-NWQE1 |
| Manufacturer Part Number (MPN) | DS-KV8114T-NWQE1 |
| Operation System | Linux |
| ROM | 4 GB |
| RAM | 1 GB |
| Lens | 3 |
| Resolution (main stream) | 4MP (2688x1520P), 2MP (1920x1080P), 1MP (1280x720P) |
| Resolution (sub stream) | 2MP (1920x1080P), 1MP (1280x720P), 0.3MP (640x480P) |
| FOV | Center Lens: Horizontal: 180°; Vertical: 105°. Side Lenses: Horizontal: 75°; Vertical: 150° |
| WDR | Support 120 dB |
| Supplement Light | IR light, up to 3 m |
| Video Compression Standard | H.264; H.265; MJPEG |
| Audio Input | 4 built-in omnidirectional microphones |
| Audio Output | 2 built-in loudspeakers |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Performance | 50cm, 85dB |
| User Capacity | 10000 |
| Face Capacity | 10000 |
| Card Capacity | 50000 |
| Sub Door Station Capacity | 16 |
| Wi-Fi | 2.4G |
| Wi-Fi Protocol | IEEE802.11b; IEEE802.11g; IEEE802.11n; IEEE802.11ax |
| Wi-Fi Type | WiFi 6 |
| Bluetooth | Supported, BLE 5.2 |
| Authentication Mode | Face, Card, QR code, Bluetooth, Hik-Connect, Indoor station, Mobile APP |
| Card Type | M1 Card, Desfire |
| Card Reading Frequency | 13.56 MHz |
| Face Recognition Distance | 0.3 to 1.5 m |
| Card Reading Distance | 3 cm |
| Mobile APP | Hik-Connect |
| Alarm Input | 4, (include Exit button and Door contact input) |
| Network Interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| Exit Button | 2 |
| Door Contact Input | 2 |
| RS-485 | 1 |
| Tamper | 1 |
| TF Card | Support TF card, up to 128 G |
| Lock Control | 2 relay, Max. 30 VDC 1A |
| Application Environment | Outdoor |
| Button | 4 physical button(s) |
| Installation | Surface mounting & Flush mounting |
| Protective Level | IP66, IK08 |
| Working Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Storage Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 202.6 mm × 95.6 mm × 34 mm (7.98" × 3.76" × 1.34") |
| Weight | Without package: 400 g (0.88 lb); With package: 788g (1.74 lb) |
| Power Consumption | With Lock: < 14 W; Without Lock: < 20 W |
| Power Supply | 12 VDC, 2 A, IEEE 802.3 at, standard PoE |
| Power Supply Output | Max. 12 VDC, 500mA |
| Material | Rear Shell Material: Plastic; Front Shell: Aluminum Alloy & Plastic; Frame: Aluminum Alloy; Viewing Window Panel Material: Plastic |
